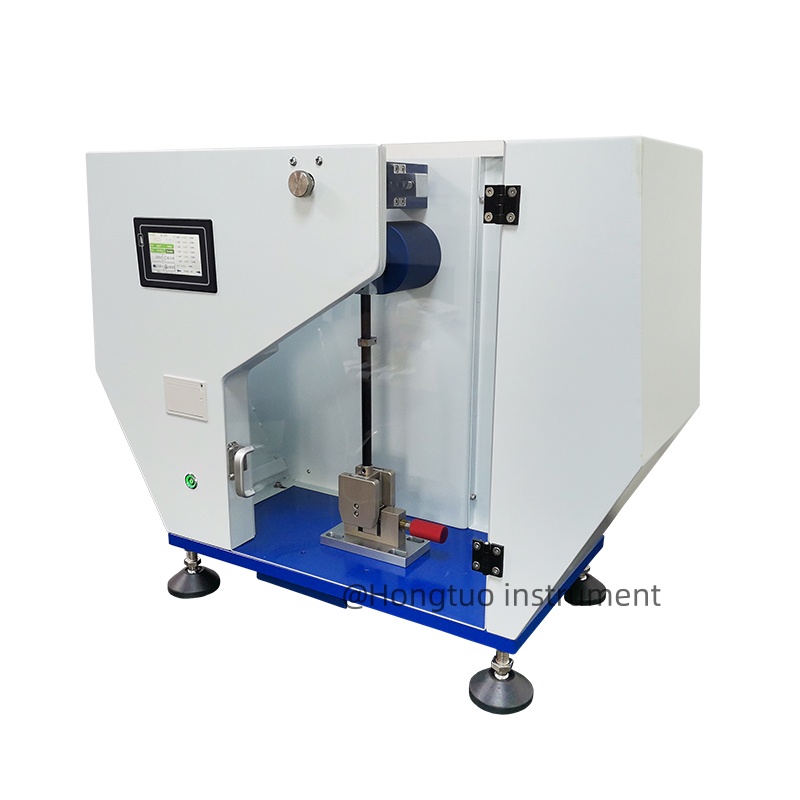

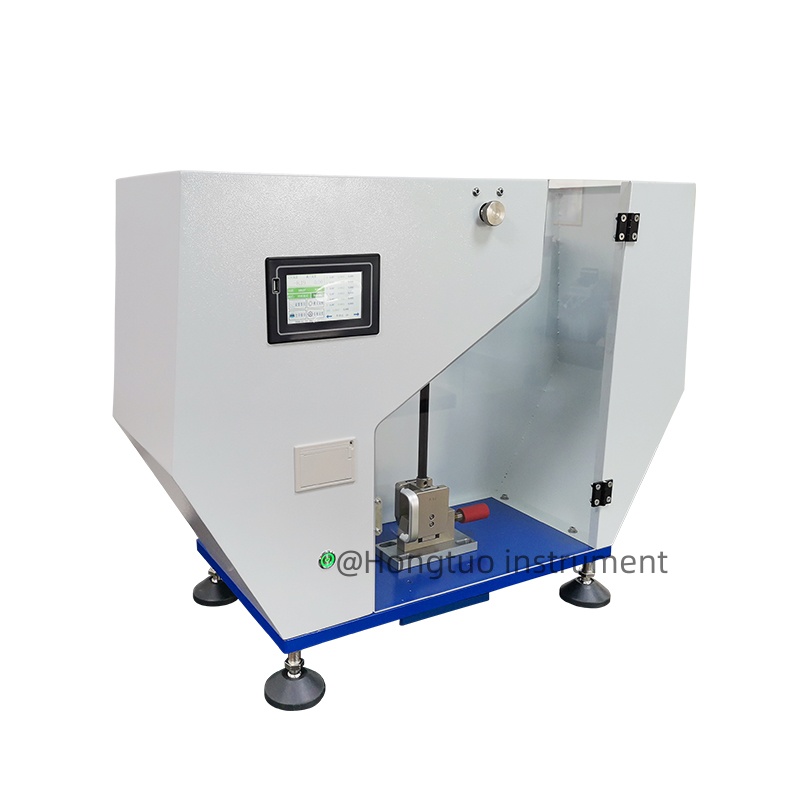

Izod Impact Tester for Plastic Material Testing HT-5D-CM
1071.00 USD ($)/Piece
Product Details:
- Accuracy 0.01 J %
- Max Height Approx. 500 mm (overall height)
- Test Range 1J, 2.75J, 5.5J, 11J, 22J
- Features Digital display, transparent protective shield, easy calibration, safety lock
- Resolution 0.01 J
- Application Impact resistance testing of plastic materials
- Operating Voltage 220V AC Volt (V)
- Click to view more
X
Izod Impact Tester for Plastic Material Testing HT-5D-CM Price And Quantity
- 1 Piece
- 1071.00 USD ($)/Piece
Izod Impact Tester for Plastic Material Testing HT-5D-CM Product Specifications
- Izod Impact Tester
- 10 mm (Standard Specimen Width) Millimeter (mm)
- 3.5 m/s (Pendulum Speed)
- 1J-22J Kelvin (K)
- 80 mm x 10 mm x 4 mm (Standard) Millimeter (mm)
- 85% RH
- N/A (not applicable for this tester)
- 220V AC, 50 Hz
- Bench Top / Table Top
- Touch Screen Control
- Instantaneous/Real Time Seconds
- 1 (Per Test)
- Semi-Automatic
- Up to 22 Joules Ltr
- Approx. 500 mm (overall height)
- 0.01 J %
- Approximately 85 kg Kilograms (kg)
- 1J, 2.75J, 5.5J, 11J, 22J
- 0.01 J
- Digital display, transparent protective shield, easy calibration, safety lock
- Pendulum Swing Stroke
- Impact resistance testing of plastic materials
- Laboratory/Research and Quality Control
- 220V AC Volt (V)
- Digital Touch Screen Display
- USB/RS232 (for data output)
- 15C - 35C Celsius (oC)
- 50 Hz Hertz (HZ)
- 150 (Standard)
- Internal memory with export function
- Adjustable specimen holder for different thickness
- Powder-coated mild steel with tempered glass
- ASTM D256, ISO 180
- Interlocked safety cover, emergency stop
- English
- Easy on-screen calibration function
- 70 dB
- Manual and Automatic Options
Izod Impact Tester for Plastic Material Testing HT-5D-CM Trade Information
- 300 Piece Per Month
- 3 Days
Product Description
Usage: Test the impact toughness of the non-metallic materials.Suitable material: plastic, reinforced nylon, glass fiber reinforced plastic, ceramics, cast stone, plastic appliance and insulation materials.
Application: scientific research institutes, universities and non-metallic material manufacturers as the common quality test equipment.
Performance standards
ISO1802000 Determination of Plastics - Hard Materials Izod Impact Strength
ISO13802-1999 Verification of pendulum impact-testing machines used for charpy, lzod
andtensile impact-testing of plastics
GB/T18432008 Rigid Plastic Izod Impact Test Method
JB/T87611998 Plastics Izod Impact Testing Machine
ASTM D256-2010 Test Methods for Measuring the Impact Strength of the Plastic IZOD Pendulum
Product Features
A. High-precision intelligent controller equipped with LCD display which you can read the data intuitively and accurately;
B. China's first carbon fiber lever (It has been patented); it succeeds in doing experiments without shaking involving the impact direction, improving the rigidity of materials, and concentrating impacting strength on the centroid of the pendulum, and using life increases.
C. Imported high-resolution digital encoders, higher and more stable angle measurement accuracy;
D. Aerodynamic impact hammer and FAG Bearings greatly reduce mechanical friction losses
E.Automatic calculation of the final result, 20 sets of the test data can be stored and averaged;
F. Optional interface of Chinese and English; units ( J / m, KJ / m2, kg-cm / cm, ft-ib / in )can be customized according to customers requirements.
G. Built-in mini printer to print the test data.
Technical Specifications
| Model | HT-1843-5.5D |
| Impact speed | 3.5m/s |
| Pendulum energy | 1J2.75J5.5J |
| Pendulum torque | 1J MN =0.5358N.m 2.75J MN =1.4737N.m 5.5J MN =2.9474N.m |
| Pendulum lift angle | 150 |
| Distance from the center of pendulum to striking edge | 335mm |
| Energy display accuracy | 0.001J |
| Angle resolution | 0.04 |
| Distance from the impact blade to the upper plane of the jaw | 22mm0.2mm |
| Edge fillet radius | R=0.8mm |
| output method | Printout or U disk output |
| Power voltage | 110240V 50/60Hz |
| Dimension(length*width*height) | 84cm*37cm*65cm |
The sample type meets the requirements of GB1843, ISO180 and JB/T8761 standards.
Remarks: Pendulum energy can be selected according to requirements.
Advanced Safety Features
Safety is paramount with the Izod Impact Tester, which is equipped with an interlocked safety cover and an emergency stop button to protect users during operation. The transparent protective shield provides clear specimen visibility while preventing accidental contact with moving parts, ensuring a secure testing environment for both experienced and new users alike.
Accurate and Customizable Testing
Designed for versatility, this tester comes with adjustable specimen clamps for samples of varying thicknesses. It supports a test range of 1J to 22J, accommodates standard specimen sizes, and offers a precise digital display with 0.01 J accuracy and resolution, guaranteeing highly reliable results for quality assurance and research purposes.
Efficient Data Handling
With its built-in internal memory, USB, and RS232 data output options, the Izod Impact Tester facilitates seamless test result storage and data management. Users can easily export data for record-keeping or analysis, making the device suitable for laboratories and quality control departments with rigorous documentation requirements.
FAQ's of Izod Impact Tester for Plastic Material Testing:
Q: How does the Izod Impact Tester benefit laboratory and quality control applications?
A: The Izod Impact Tester provides accurate impact resistance measurements for plastic materials, enabling laboratories and quality control teams to evaluate product durability, improve material development, and ensure compliance with ASTM D256 and ISO 180 standards.Q: What safety features are included in the Izod Impact Tester?
A: This tester includes an interlocked safety cover, an emergency stop button, and a transparent protective shield designed to protect users from moving pendulums and specimen fragments during testing.Q: When should calibration of the tester be performed, and how is it carried out?
A: Calibration should be performed routinely, according to your quality protocol or after extended use. The tester offers an easy on-screen calibration function, allowing quick and accurate calibration directly from the control interface, maintaining measurement precision.Q: Where can the Izod Impact Tester be installed and used?
A: This equipment is suitable for laboratory, research, and quality control environments and is intended for benchtop or tabletop use. Ensure installation in a controlled setting with humidity up to 85% and a temperature range of 15C to 35C for optimal performance.Q: What is the process for conducting an impact test using this equipment?
A: To perform a test, users clamp the specimen, set test parameters via the touch screen, choose manual or automatic pendulum release, and activate the test. The pendulum strikes the specimen, and the machine digitally displays and records the energy absorbed.Q: How does the data export function work?
A: Test results are stored in the tester's internal memory and can be exported using USB or RS232 interface. This allows users to transfer data conveniently for further analysis or archiving, supporting efficient documentation workflows.Q: What are the main usage and application areas for this impact tester?
A: The Izod Impact Tester is primarily used for impact resistance testing of plastic materials in industries such as manufacturing, research, automotive, and product development to ensure material strength, performance, and regulatory compliance.Tell us about your requirement
