HT-DS410 Color analysis instrument with excellent repetition accuracy

480.00 USD ($)/Unit

Get a Price/Quote

Product Details:

Automation Grade Automatic Measurement
Port Size Aperture: 8 mm/4 mm
Mounting Type Handheld
Response Time 0.5 seconds
Power Supply Rechargeable Lithium Battery, USB Charging
Test Range 0~100 units (depends on parameter)
Measuring Range L: 0-100, a: -128~128, b: -128~128
Click to view more
Share Your Product:

Request To Call Back Send Inquiry

HT-DS410 Color analysis instrument with excellent repetition accuracy Price And Quantity

Price 480.00 USD ($)/Unit
Minimum Order Quantity 1 Unit

HT-DS410 Color analysis instrument with excellent repetition accuracy Product Specifications

Test Range 0~100 units (depends on parameter)
Capacity >3000 measurements per charge
Response Time 0.5 seconds
Power Supply Rechargeable Lithium Battery, USB Charging
Measuring Range L: 0-100, a: -128~128, b: -128~128
Automation Grade Automatic Measurement
Test Speed 0.5 s per measurement
Mounting Type Handheld
Port Size Aperture: 8 mm/4 mm
Features Portable, Rechargeable, Memory Storage, Data Output
Display Type Capacitive Touchscreen Display
Interface Type USB, Bluetooth
Accuracy Repeatability E*ab 0.03
Resolution 0.01 units
Specimen Size Minimum: 8 mm diameter
Equipment Type Color Analysis Instrument
Number of Specimens Single Specimen per Measurement
Usage Laboratory/Industrial/Field
Operating Voltage 5V DC (USB charging)
Test Width 8 mm/4 mm (aperture size)
Temperature Operating Temperature 0C~40C
Humidity Relative Humidity 0-85%
Application Color Evaluation for Textiles, Plastic, Printing, Paint, etc.
Machine Weight 480 g
Control Mode Touchscreen

Illumination Condition D65, A, C, F2, F11, F7
Maximum Storage Up to 30,000 measurement data sets
Standard Observer CIE 10
Calibration Automatic & Manual Calibration
Spectral Interval 10 nm
Light Source LED light source with UV included
Wavelength Range 400-700 nm
Data Interface Bluetooth, USB

HT-DS410 Color analysis instrument with excellent repetition accuracy Trade Information

Delivery Time 5-7 Days

Product Description

1. Core technology

(1) Dual optical path design improves repeatability accuracy dE*ab0.03

The dual optical path design monitors the energy fluctuations of the light source

while measuring the sample signal, reducing interference during measurement, achieving higher measurement stability, and improving the instrument's measurement repeatability index to dE * ab 0.03. The measurement speed, accuracy, and stability of the instrument are ensured. Relevant technologies are protected by Chinese invention patents and American invention patents.

(1) Innovative 5-micron thick nano integrated optics

Innovation is the soul of instrument. After nearly 10 years of dedicated research, using nano integrated optical devices as spectroscopic devices can achieve nano level spectroscopic capabilities with only 5 micron thick optical devices, once again leading the direction of industry innovation, greatly improving the technical performance of the product. Relevant technologies are protected by Chinese invention patents.

1. Product characteristics

(1) Ultra high repeatability accuracy:dE*ab0.03

Repeatability accuracy is an important index to describe the accuracy of a spectrophotometer. The excellent photoelectric testing system scheme ensures that the repeatability and accuracy of the spectrophotometer have reached a level unmatched by similar products.

The repeatability evaluation of the spectrophotometer adopts strict standards, presenting excellent repeatability and accuracy performance.

Technical Data

Name	Spectrophotometer
Geometry*	D/8,SCI+SCE
Repeatability	dE*_ab0.03
Display Resolution	0.01
Measuring aperture	3 w/ plate and 3 w/o plate11mm6mm3mm 11mm6mm3mm
Measurement index	Reflectance,CIE-Lab,CIE-LCh,HunterLab,CIE-Luv,XYZ,Yxy,RGB,Color difference(Eab,Ecmc,E94,E00),WI(ASTME313-00,ASTM E313-73,CIE,ISO2470/R457,,AATCC,Hunter,TaubeBergerStensby), YI(ASTM D1925,ASTM E313-00,ASTM E313-73),BlacknessMy,dM, Color Fastness, Tint,(ASTM E313-00),Color Density CMYK(A,T,E,M), Milm, Munsell, Opacity, Color strength
Illuminants	A,B,C,D50,D55,D65,D75,F1,F2,F3,F4,F5,F6,F7,F8,F9,F10,F11,F12,CWF,U30,U35,DLF,NBF,TL83,TL84,ID50,ID65,LED-B1,LED-B2,LED-B3,LED-B4,LED-B5,LED-BH1,LED-RGB1,LED-V1, LED-V2
Light Source	Full-band balancedLED light source
Observer Angles	210
Sphere Size	40mm
Standards	CIE No.15,GB/T 3978,GB 2893,GB/T 18833,ISO7724-1,ASTM E1164,DIN5033 Teil7
Spectroscopic method	Nanometer integrated spectral device
Sensor	Silicon photodiode array double 16 groups
Wavelength Interval	10nm
Wavelength Range	400-700nmUsers can view the reflectivity of 31 wavelengths
Reflectance Range	0-200%
Reflectivity resolution	0.01%
Measurement method	Single measurement, average measurement (299 times)
Measurement time	About 1 second
Measurement and observation mode	Camera
Calibration	Intelligent automatic calibration
Software support	Andriod,iOS,Windows,WeChat applet
Accuracy	Metrology Level I
Interface	USBBluetooth
Screen	Full Color Screen,2.4 inches
Battery capacity	Rechargeable, 8000 times continuous tests 3.7V/3000mAh
Light Source Lifetime	10 years, 1 million tests
Language	Chinese and English
Storage	Instrument: 10000 pieces of data; APP: mass storage

Advanced Color Accuracy

Harnessing LED and UV light sources, the HT-DS410 delivers high repeatability (E*ab 0.03) and superb resolution (0.01 units) across comprehensive color spaces (L: 0-100, a: -128~128, b: -128~128). Its automatic and manual calibration modes maintain precise measurements for demanding workflows.

Effortless Data Management

Store up to 30,000 measurement data sets and transfer information effortlessly via Bluetooth or USB. The handheld design, combined with a capacitive touchscreen, simplifies on-site operation and control, enhancing workflow efficiency in various environments.

Versatile Application

This portable instrument is ideal for color analysis in textiles, plastics, printing, and painting industries, proven reliable in laboratory, industrial, and field usage. Its rapid test speed and large capacity battery support consistent, high-volume measurement requirements.

FAQ's of HT-DS410 Color analysis instrument with excellent repetition accuracy:

Q: How does the HT-DS410 ensure precise color measurement results?

A: The HT-DS410 features excellent repeatability (E*ab 0.03) using a high-quality LED light source with UV inclusion, an advanced optical system with 10 nm spectral intervals, and both automatic and manual calibration options to deliver consistently accurate color analysis.

Q: What applications is the HT-DS410 suitable for?

A: This device is ideal for color evaluation in textiles, plastics, printing, and paint industries. It operates effectively in laboratories, industrial facilities, and in the field, handling environments with relative humidity up to 85% and temperatures ranging from 0C to 40C.

Q: When should I perform calibration on the HT-DS410?

A: For optimal accuracy, calibration should be performed regularly, especially before critical measurements or after changing environmental conditions. You may choose automatic or manual calibration depending on your operational preferences.

Q: Where can I use the HT-DS410 color analysis instrument?

A: Thanks to its portable, handheld design and robust rechargeable battery, the HT-DS410 can be used in laboratories, manufacturing plants, field locations, or any setting where quick and reliable color assessment is required.

Q: What is the typical measurement process with the HT-DS410?

A: Simply place the instrument over the specimen (minimum diameter 8 mm), use the touchscreen to start a measurement, and obtain results within 0.5 seconds. Data is instantly displayed and saved, with options for wireless or USB data export.

Q: How is data stored and transferred from the device?

A: The HT-DS410 can store up to 30,000 measurement data sets internally. Data transfer is quick and flexible via Bluetooth connectivity or USB interface, facilitating integration with various reporting or quality management systems.

Q: What are the benefits of using a handheld, rechargeable color analysis instrument?

A: A portable and rechargeable design offers flexibility to conduct measurements anywhere, ensures productivity with over 3,000 tests per charge, and reduces downtime, contributing to efficient and precise quality control workflows.

Tell us about your requirement

Price:

Quantity

Select Unit

50
100
200
250
500
1000+

Additional detail

Mobile number

Other Products in 'Paper Testing Machine' category

Carton Box Paper Testing Equipment / Clamp Force Tester For Transport Price : 971.00 USD ($)/Set Minimum Order Quantity : 1 Usage : Packing Clamp Test Machine Automation Grade : Automatic Power Supply : AC 220V/50Hz Hardness : Industrial Grade Features : Clamping Force Test, Compression Hold, Auto Reset, Safety Interlock Control Mode : Microcomputer / Touch Screen Control Machine Weight : Approx. 500 kg Kilograms (kg) Application : Carton Box, Corrugated Paper Board Transport Simulation Testing Humidity : 35% 65% RH Temperature : 10C 35C Celsius (oC) Test Width : 200 2000 mm Millimeter (mm) Interface Type : RS232 / USB Port Number of Specimens : 1 Equipment Type : Clamp Force Tester Specimen Size : Standard: 1200 x 1200 mm Millimeter (mm) Resolution : 0.01 kN Accuracy : 1% FS % Max Height : 2000 mm Test Stroke : 0 1200 mm Mounting Type : Floor Mounted Test Speed : 5 500 mm/min (adjustable) Response Time : <1s Seconds Capacity : Max Load 3000 kg Ltr Test Range : 0 30 kN Measuring Range : 0 30 kN Kelvin (K) Operating Voltage : 220V / 50Hz Volt (V) Display Type : Digital Display / LCD Touch Screen Frequency : 50 Hz Hertz (HZ) Port Size : Customizable Gas Pressure : 0.6 MPa mpa

Send Inquiry

High Frequency Simulated Transportation Vibration Table Machine Price : 1109.00 INR/Set Minimum Order Quantity : 1 Usage : Car Simulation Transportation Vibration Table Automation Grade : Automatic Power Supply : AC 220V, 50Hz Hardness : Industry standard structural hardness Features : High frequency vibration, programmable controls, realtime speed & amplitude adjustment, overload protection Control Mode : Digital microcomputer control Machine Weight : Approx. 150 kg Kilograms (kg) Application : Simulating vibration conditions during transportation for product packaging tests Humidity : 20%~80% RH Temperature : Room Temperature Celsius (oC) Test Width : 500 mm Millimeter (mm) Interface Type : Touchscreen / PushButton interface Number of Specimens : 1 (Or multiple depending on size) Equipment Type : High Frequency Simulated Transportation Vibration Table Machine Specimen Size : Depends on platform size Millimeter (mm) Resolution : 0.01 mm Accuracy : 0.1 mm % Max Height : Approx. 1500 mm Test Stroke : 25 mm (standard) Mounting Type : Floormounted Test Speed : 60300 rpm adjustable Response Time : Instantaneous (realtime monitoring) Seconds Capacity : Max. 200 kg Kg Test Range : 0.1g~2.0g Measuring Range : 0.56 mm amplitude (variable) Kelvin (K) Operating Voltage : 220V AC Volt (V) Display Type : Digital display Frequency : 560 Hz adjustable Hertz (HZ) Port Size : Standard platform: 1000 mm x 1200 mm

Send Inquiry

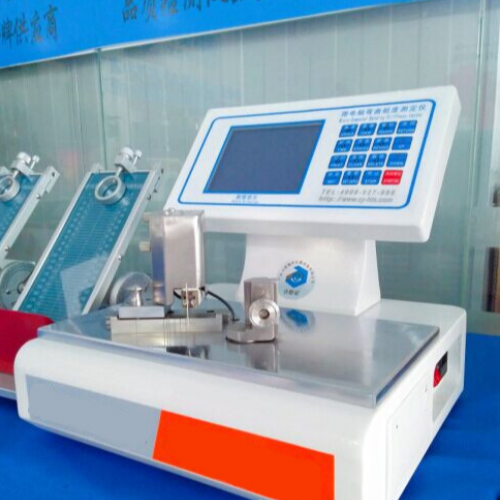

Full Intelligent Stiffness Tester Price : 2257.0 USD ($)/Unit Minimum Order Quantity : 1 Usage : Laboratory / Q.C. Testing Automation Grade : Fully Automatic Power Supply : AC 220V, 50/60 Hz Features : Automatic clamping, digital results, data storage, printing Control Mode : Full Automatic / Intelligent Control Machine Weight : Approx. 25 kg Application : Paper, cardboard, film, sheet stiffness measurement Humidity : 2080% RH (operating conditions) Temperature : 535C (operating conditions) Test Width : 38 mm Interface Type : USB, RS232, Printer Number of Specimens : 1 at a time Equipment Type : Full Intelligent Stiffness Tester Specimen Size : 70 x 38 mm Resolution : 0.01 mN Accuracy : 1% F.S. Max Height : 200 mm (including display unit) Test Stroke : 090 mm Mounting Type : Benchtop Test Speed : Adjustable 110 mm/min Response Time : <100 ms Capacity : Max. 5000 mN Test Range : 15000 mN Measuring Range : 15000 mN Operating Voltage : AC 220V 10% Display Type : Large LCD with touch panel Frequency : 50/60 Hz Port Size : Standard USB/RS232 Gas Pressure : 0.6 MPa (if required for pneumatic sample grip)
