HT-408PT-UL Horizontal Vertical Combustion Tester for Flammability Testing
1740.00 USD ($)/Unit
Product Details:
- Number of Specimens Up to 10 per test
- Display Type Digital LCD touchscreen
- Mounting Type Standalone benchtop
- Operating Voltage 220V Volt (V)
- Humidity 45% ~ 75% RH (operational)
- Response Time Instantaneous display Seconds
- Equipment Type Flammability Testing Apparatus
- Click to view more
X
HT-408PT-UL Horizontal Vertical Combustion Tester for Flammability Testing Price And Quantity
- 1740.00 USD ($)/Unit
- 1 Unit
HT-408PT-UL Horizontal Vertical Combustion Tester for Flammability Testing Product Specifications
- 125mm 13mm thickness 13mm Millimeter (mm)
- 220V, 50Hz, single phase
- 10-100 kPa adjustable kpa
- 50Hz Hertz (HZ)
- Adjustable as per UL standard
- Suitable for a variety of plastics and polymers Ltr
- Combustion/flame spread testing as per UL94 standard
- UL94 Horizontal and Vertical Burning Test
- RS232 data output
- Fire resistance test of plastic, rubber, cable insulation, and electronics housing
- 0~300mm (distance for flame propagation measurements) Kelvin (K)
- Automatic ignition, timing, flame extinguishing, large observation window, safe-door interlock
- Standard gas inlet port 8mm
- Cabinet 630mm
- 15C ~ 35C (operational) Celsius (oC)
- 1mm (flame position measurement) %
- 0.1 second (timing)
- Instantaneous display Seconds
- 220V Volt (V)
- 45% ~ 75% RH (operational)
- Standalone benchtop
- Digital LCD touchscreen
- Up to 10 per test
- Touchscreen PLC control
- Horizontal 300mm, Vertical 400mm
- Up to 140 mm Millimeter (mm)
- Semi-automatic
- Approximately 80 kg Kilograms (kg)
- Flammability Testing Apparatus
- Heat-resistant glass, oversized for easy monitoring
- Manual adjustment 0~50 mm
- Bunsen burner, inner diameter 9.5mm 0.5mm
- High-grade stainless steel for corrosion and heat resistance
- Internal LED for clear observation during testing
- 0~999.9 seconds (digital)
- Top-mounted vent for rapid fume extraction
- Automatic gas shut-off, safety lock system, over-temperature protection
- Built-in precision reference
- 0/20 (automatic positioning)
HT-408PT-UL Horizontal Vertical Combustion Tester for Flammability Testing Trade Information
- 300 Unit Per Month
- 3 Days
Product Description
1. Product model HT-408PT-UL
2. Overview
The horizontal vertical combustion tester is developed according to the standard UL94B and fully meets the technical requirements of the standards UL94-VO and 5V. In conjunction with a special sample holder, the horizontal vertical combustion tests of plastics can be carried out on the same instrument, and the test time can be automatically recorded. Compared with similar instruments, it has the advantages of high automation, accurate timing, and automatic display of test results.
This instrument are stipulated that after the samples placed horizontally and vertically in the laboratory are ignited with a small flame source, the burning speed, flame burning and flameless burning time of the samples will be measured.
The product box shell is galvanized sheet cold-rolled electrostatic spraying, and is equipped with a transparent observation window, which automatically records the flame, afterflame, and afterglow time, this machine has its own silent exhaust, and the test combustion smoke is safely discharged; the horizontal and vertical combustion sample clamps are controlled by motors, and the Bunsen burner automatically retracts after the flame is completed, reducing the tedious manual operation.
3. Product Features

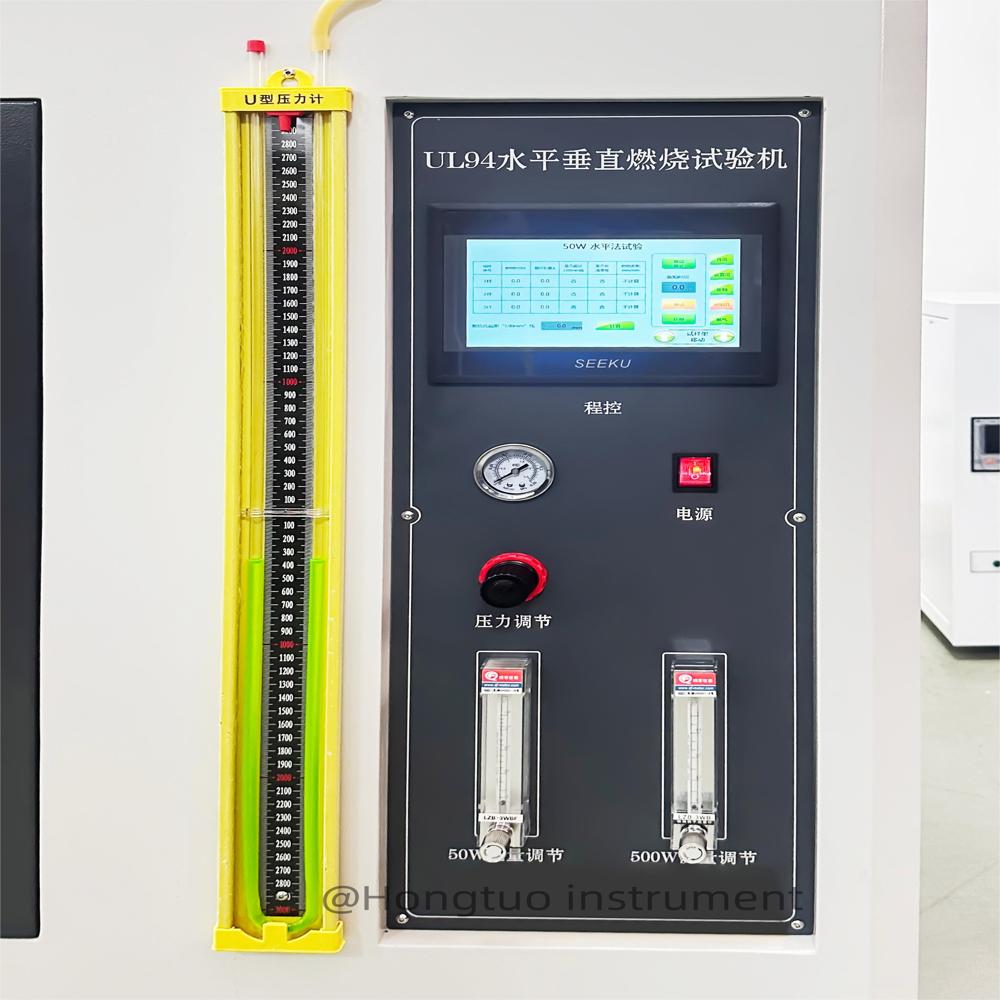

The tester is equipped with lighting device, exhaust device, gas flow regulating valve, gas pressure gauge, gas pressure regulating valve, gas flow meter, gas U-type pressure gauge. The sample fixture is made of 304 stainless steel, beautiful and corrosion-resistant. The fixture is an integrated design for horizontal combustion and vertical combustion, which is easy to operate and saves space.
4. Based on standards
ISO1210, GB4609, IEC 707, IEC695-2-2
UL94 "Fire Test"
GBT2408 "Determination of Plastic Combustion Performance Horizontal and Vertical Methods"
IEC60695-11-10 "Combustion Fire Test"
GB/T8333 "Hard Foam Plastic Combustion Test Method Vertical Combustion Method"
5. Product functions
l Programmable controller touch screen, data display;
l Pulse high-voltage electronic automatic ignition;
l Timing button cooperates with PLC to automatically record and store combustion time;
l Timer detects the time when the flame reaches the 25, 100mm marking line;
l Accuracy 0.1S, automatic timing;
l No need to hold a stopwatch or manuscript timing; the test time system automatically records;
The test time and ignition time can be set on the touch screen to meet the requirements of various test standards;
l Horizontal and vertical combustion test programs can be switched on the touch screen
6. Specifications
(1) Burner: Bunsen burner with inner diameter 9.5mm+0.3mm single gas and inner diameter 9.5mm0.5mm.
(2) Bunsen burner with air adjustment nut to adjust the blue flame height.
(3) Bunsen burner flame time: arbitrarily set.
(4) Burner test inclination: 045 adjustable, can be fixed every 5 between 045 and switch back and forth.
(5) Flame height: 20mm1mm to 125mm10mm adjustable.
(6) The Bunsen burner is quickly moved to the sample end by the motor. After the flame is applied, the Bunsen burner automatically retracts.
(7) Bunsen burner flame time: 0999.9S+0.1s adjustable, arbitrarily set within the range, flame adjustment 20mm.
(8) After-flame time: 0999.9S+0.1s adjustable, the instrument automatically records, and manually pauses.
(9) After-burning time: 0999.9S+0.1s adjustable, the instrument automatically records, manually paused.
(10) The test gas source uses 98% methane, coal gas or liquefied petroleum gas
(11) The methane flow rate is adjustable from 16ml/min to 160ml/min.
(12) There is an electronic switch on the gas pipeline. After the test, click the reset switch on the panel to cut off the gas source. The Bunsen burner automatically goes out.
(13) The up and down and left and right strokes of the sample rack are all greater than 300mm. Box material: electrostatic spraying of steel plate.
(14) There is an exhaust fan on the top of the test box. After the test, toxic substances can be discharged.
(15) The test process is automatically controlled and independently exhausted.
(16) Equipment dimensions: length 1300mm*depth 660mm*height 1460 (including feet) mm.
(17) Combustion test area volume: >0.75 cubic meters, length * width * height about 980mm* 660mm*1200mm, with black background , background illumination 20Lux.
(18) Gas leak alarm device (optional)
(19) Flame calibration device (optional)
7. Instrument working conditions
(1)Ambient temperature: -1030
(2)Relative humidity: 85%
(3)Power supply voltage and power: 220V10% 50HZ Power 150W
Precise Flammability Testing
Designed for both horizontal and vertical burning assessments, this apparatus offers accurate flame propagation measurements with a 1mm accuracy and 0.1-second timing resolution. The adjustable burner and touchscreen PLC control streamline operations, ensuring repeatable results that meet UL94 requirements for plastics, rubber, and other materials.
Ultimate Safety and Visibility
The tester is built with multiple safety features including an automatic gas shut-off, over-temperature protection, and a sturdy safety lock. Observation is easy and clear through a large, heat-resistant glass window, complemented by internal LED lighting, allowing users to monitor every stage of the combustion process confidently.
Versatile and User-Friendly Design
Engineered for convenience, the tester accommodates up to 10 samples per run. Its standalone benchtop design, RS232 data output, and easy manual adjustments for burner position and height facilitate straightforward setup and operation, making it ideal for manufacturers, suppliers, and testing laboratories globally.
FAQ's of UL Horizontal Vertical Combustion Tester for Flammability Testing:
Q: How is the UL Horizontal Vertical Combustion Tester operated for flammability testing?
A: The tester utilizes a PLC touchscreen interface for control, allowing users to set parameters such as burn duration, flame height, and test mode. Specimens are placed within the chamber, and the Bunsen burner-positioned automatically or manually-conducts the ignition according to UL94 test standards.Q: What types of materials and specimens can be tested with this apparatus?
A: This tester is suitable for a range of materials such as plastics, polymers, rubber, cable jacketing, and electronic housing components. It can evaluate specimens measuring 125mm x 13mm with thickness up to 13mm, accommodating up to 10 samples at once for comprehensive analysis.Q: When should I use the combustion tester during quality assessment?
A: The tester should be employed during the quality control or research phases to determine the fire resistance and flame propagation characteristics of materials as required by UL94 standard. It's vital for manufacturers seeking regulatory compliance and improved product safety.Q: Where can the UL Horizontal Vertical Combustion Tester be installed for optimal use?
A: The tester is designed as a standalone benchtop unit suitable for testing laboratories, factory quality control rooms, or R&D facilities. It requires a stable surface, access to a gas supply (8mm port), and 220V single-phase electrical source with sufficient space for safe ventilation.Q: What is the testing process like with this apparatus?
A: The process involves placing up to 10 specimens in holders, setting desired test parameters via the touchscreen, and starting the test. The built-in safety locks, automatic ignition, and flame extinguishing functions manage the combustion cycle. Post-test data can be exported via the RS232 port for analysis.Q: How does this tester enhance safety during operation?
A: Safety features include automatic gas shut-off if a door is opened, over-temperature protection, a secure lock system, and a heat-resistant observation window. Internal LEDs provide clear viewing without opening the door, further reducing operator risk during high-heat tests.Q: What are the main benefits of using this flammability tester?
A: This tester streamlines compliance with international fire safety standards, provides rapid and accurate results, supports a wide range of materials, and enhances laboratory safety. Its durable construction and user-friendly controls make it a reliable asset for ongoing product development and QC testing.Tell us about your requirement
