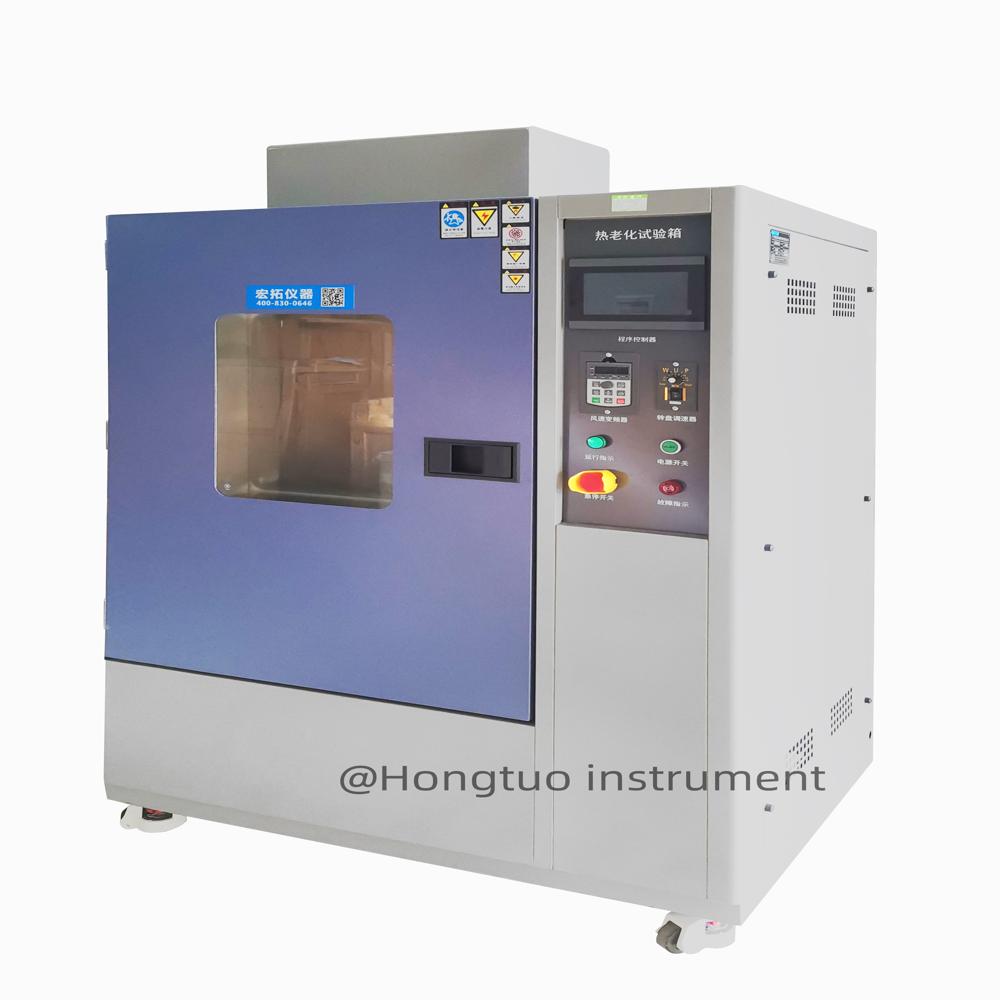

Heating Aging Testing Chamber

Name: Heating Aging Testing Chamber
Brand: Guangdong Hongtuo Instrument Technology Co.,Ltd .
Price: 3999.0 USD
Availability: InStock

3999.0 USD ($)/Set

Get a Price/Quote

Product Details:

Power Supply 220V / 50 Hz
Accuracy 1C (temperature), 2.5%RH (humidity)
Resolution 0.1C, 0.1%RH
Interface Type RS232/USB
Specimen Size Max 200x200 mm (customizable)
Test Range Temperature, Humidity, Aging Time
Max Height Approx. 1200 mm
Click to view more
Share Your Product:

Request To Call Back Send Inquiry

Heating Aging Testing Chamber Price And Quantity

Minimum Order Quantity 1 Set
Price 3999.0 USD ($)/Set

Heating Aging Testing Chamber Product Specifications

Capacity 150 L (standard model)
Response Time 5 min for temperature rise
Temperature Room temperature to 300C (adjustable)
Humidity 20%~98% RH (adjustable)
Operating Voltage 220V AC
Features Programmable settings, observation window, alarm system, precise control, stainless steel inner chamber, casters for mobility
Control Mode Digital PLC controller, programmable with touchscreen interface
Port Size Standard, customized on request
Measuring Range Temperature & humidity over full chamber area
Mounting Type Floor-standing
Equipment Type Heating Aging Testing Chamber
Automation Grade Automatic
Frequency 50 Hz
Gas Pressure Atmospheric
Display Type Digital LCD touch screen
Machine Weight Approx. 120 kg
Number of Specimens Multiple holders, dependent on chamber size
Application Accelerated aging and performance testing of materials such as rubber, plastics, wire insulation, etc.
Max Height Approx. 1200 mm
Test Range Temperature, Humidity, Aging Time
Specimen Size Max 200x200 mm (customizable)
Interface Type RS232/USB
Usage Lab/Industrial Material Testing
Resolution 0.1C, 0.1%RH
Accuracy 1C (temperature), 2.5%RH (humidity)
Power Supply 220V / 50 Hz

Safety Devices Over-temperature protection, leakage breaker, alarm buzzer
Observation Window Tempered glass with anti-fog system
Air Circulation Forced air convection design for uniform temperature
Memory Function Data logging and storage for test records
Timer Range 0-999 hours
Door Sealing High-quality silicon gasket for optimal insulation
Chamber Outer Material Powder-coated steel
Cooling System Optional with rapid cooling for temperature recovery
Chamber Inner Material SUS304 Stainless Steel
Noise Level 65 dB

Product Description

Model: HT-512PT-100L

* Control mode and features:

Balanced temperature and humidity control system (BTHC), control SSR in P.I.D. way, so that the heat of the system is equal to the amount of moisture and heat loss, so it can be used for a long time.

Thermal aging test chamber is used for thermal aging test of plastic materials (rubber, plastic) electrical insulation and other materials in scientific research units and factories. Comply with GBT 3512-2014.ISO188; 2011 and other national standards.

1. Performance

At room temperature 20, no load

1.1 Temperature range: RT+10 200

1.2 Temperature fluctuation: 0.5

1.3 Temperature uniformity: RT+101001; 100 200 , 2 or higher

1.4 Air exchange rate: 250 times /H

1.5 Timing device: 0 999 hours

1.6 Wind speed: 0m/s2.0m/s adjustable

1.7 Test rack: speed 10RPM/min test rack (first layer)

1.8 Heating rate: about 35/min

Model	inside dimension	outside dimension
HT-512PT-100L	400500500(WHD)mm	7001520850(WHD)mm

2. Structure and material

2.1 Inner box material: stainless steel plate

2.2 Material of outer box :SPCC plate plus electrostatic paint

2.3 Insulation material: glass wool

2.4 Air supply circulation system:

2.4.1 60W motor, 1

2.4.2 Stainless steel lengthened axis

2.4.3 SIRCCO FAN

2.4.4 Adjustable shutter to ensure uniform temperature distribution in the test chamber

2.5 Door: single door, open left, handle on the right side

2.5.1 Flat embedded handle

2.6 Ventilation system:

2.6.1 25W multi-wing snail fan

2.6.2 One code tuner

2.6.3 One adjustable damper

3. Control system

3.1 Temperature controller: touch screen controller

3.1.1 Power meter: digital display touch-tone power meter.

3.2 Heating system

3.2.1 Heater: fin-plate heat pipe nickel-chromium alloy U-type efficient heater, automatic calculation and high-precision PID+SSR control (calculation cycle: 1 4S can be set), so that the heat loss is equivalent to the heating heat, so it saves about 30% than the traditional ON/OFF control.

3.3 Temperature measuring body: DIN specification A Class 4.8mm SUS #304 stainless steel PT 100 1 piece.

3.4 Safety Devices:

3.4.1 Zero-crossing thyristor power controller

3.4.2 Air Burn prevention protector

3.4.3 Underphase and Reverse Phase protection switch

3.4.4 Line fuse and fully sheathed terminals

3.4.5 Buzzer

4. Standard configuration

4.1 Power cable 4.0mm x5 core, low impedance rubber cable 2.5m long 1

4.2 One set of controller operating instructions and one set of operating instructions

5. Surrounding environment

5.1 The allowable operating temperature ranges from 0 to 35 C

5.2 Performance Guarantee range: 5 to 35 C

5.3 Relative humidity: no more than 85%

5.4 Atmospheric pressure: 86 106Kpa

5.5 There is no strong vibration around

5.6 No direct sunlight or other heat sources

6.Power supply AC 34W380V 50HZ,Maximum power 4.5KW

Advanced Programmable Controls

The Heating Aging Testing Chamber is equipped with a digital PLC controller, featuring a user-friendly touchscreen interface for straightforward programming of test parameters. Users can configure temperature, humidity, and test duration with high precision, allowing for customized aging profiles. The digital LCD touch screen enhances the control experience, providing clear and instant feedback for operational adjustments.

Reliable Data Logging and Storage

Built-in memory functions support comprehensive data logging and storage of test records. This capability is invaluable for maintaining quality assurance, tracking test histories for compliance, and streamlining laboratory workflows. Easily interface the chamber with external devices using RS232 or USB ports for data backup and analysis.

Superior Construction and Safety Features

Constructed with a SUS304 stainless steel inner chamber and powder-coated steel exterior, the chamber offers corrosion resistance and durability. The tempered glass window, equipped with an anti-fog system, allows for clear observation during tests. Over-temperature protection, leakage breaker, and alarm buzzer ensure operational safety and protect valuable samples throughout the testing process.

FAQ's of Heating Aging Testing Chamber:

Q: How does the Heating Aging Testing Chamber ensure uniform temperature and humidity distribution?

A: The chamber utilizes a forced air convection design, which circulates air evenly throughout the interior. This promotes consistent temperature and humidity levels, ensuring reliable and repeatable test results across all specimens.

Q: What materials and specimen sizes can be tested with this chamber?

A: The chamber accommodates various materials such as rubber, plastics, and wire insulation. It features multiple holders for specimens up to 200x200 mm, and larger or custom sizes can be accommodated upon request.

Q: When should a rapid cooling system be considered for this chamber?

A: A rapid cooling feature is recommended for applications requiring swift temperature recovery between test cycles or when quick transitions between temperature setpoints are necessary to meet specific testing protocols.

Q: Where can this testing chamber be installed and used?

A: The floor-standing design with casters allows easy placement in laboratory or industrial settings. It operates on a standard 220V AC supply, making it suitable for diverse environments ranging from quality control labs to manufacturing facilities.

Q: What is the process for programming and operating a test with this chamber?

A: Tests are programmed via the touchscreen PLC controller. Users select parameters such as temperature, humidity, and test duration. The chamber automatically maintains set conditions, logs data, and issues alerts for any anomalies during operation.

Q: How does the chamber benefit material aging and performance testing?

A: By providing precise control of environmental conditions and robust data logging, the chamber enables accurate simulation of long-term aging within a short period. This accelerates product development cycles, ensures material reliability, and supports compliance with industry standards.

Q: What safety features are included to protect the operator and specimens?

A: Safety devices such as over-temperature protection, leakage breakers, and an alarm buzzer safeguard both users and samples. The anti-fog window, high-quality silicon door seal, and durable exterior further enhance operational safety and reliability.

Tell us about your requirement

Price:

Quantity

Select Unit

50
100
200
250
500
1000+

Additional detail

Mobile number

Other Products in 'Environmental Testing Chamber' category

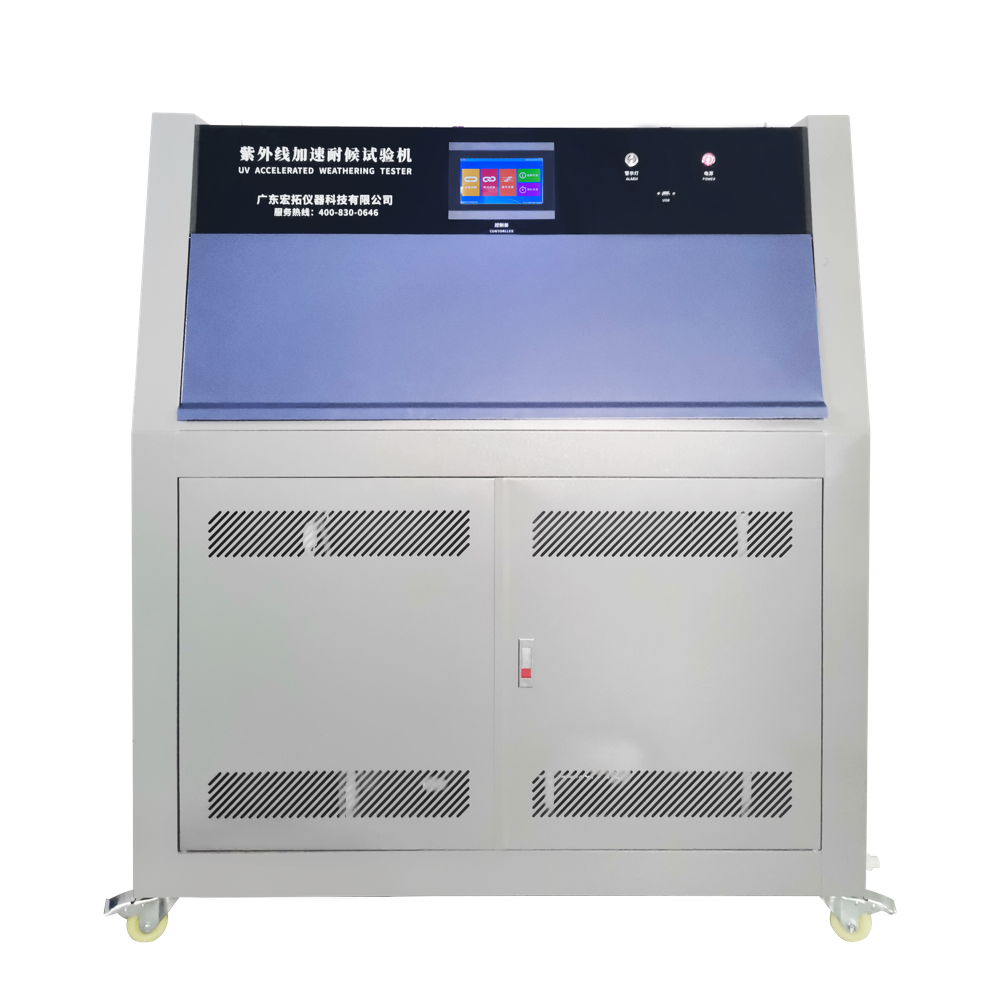

Tower Type UV Aging Testing Chamber DH-RUV-1 Price : 5227.00 USD ($)/Set Minimum Order Quantity : 1 Operating Voltage : 220V AC Volt (V) Control Mode : Microprocessor Based Controller Automation Grade : Automatic Humidity : 20%RH98%RH Temperature : 0 C/20 C/40 C/60 C/70 C~+100 C(+150 C) Celsius (oC) Capacity : 120 L Ltr Response Time : Instant Feedback (Less than 1 min) Seconds Features : Programmable Cycles, Data Logging, Alarm System Equipment Type : Temperature Humidity Testing Chamber Mounting Type : Floor Standing Test Speed : Adjustable Measuring Range : 30% 98% RH, 70C to +150C Kelvin (K) Frequency : 50 Hz Hertz (HZ) Number of Specimens : 110 (Adjustable) Application : Laboratory Environmental Testing Display Type : Digital Display (LCD Touchscreen) Machine Weight : 350 Kg Kilograms (kg) Specimen Size : Custom Sizes Supported Millimeter (mm) Test Range : Wide Max Height : 1800 mm Interface Type : RS232, USB Usage : Material Testing, Quality Control Test Width : Up to 1000 mm Millimeter (mm) Power Supply : 220V/50Hz Accuracy : 0.5C; 2% RH % Resolution : 0.1C; 0.1% RH Port Size : Standard 50 mm Test Stroke : Customizable
