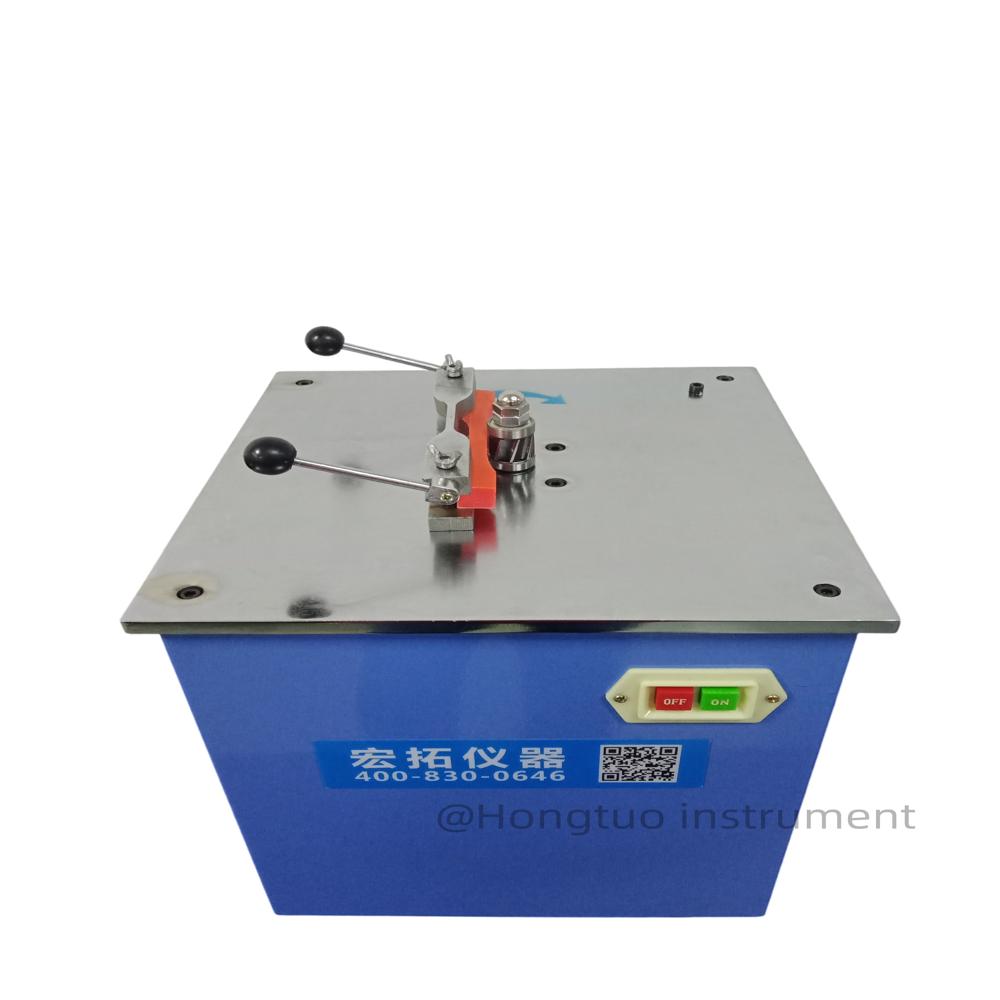

Dumbbell Type Sample Preparation Machine

Dumbbell Type Sample Preparation Machine

Name: Dumbbell Type Sample Preparation Machine
Brand: Guangdong Hongtuo Instrument Technology Co.,Ltd .
Price: 529.0 USD
Availability: InStock

529.0 USD ($)/Unit

Get a Price/Quote

Product Details:

Automation Grade Manual
Test Range N/A (Sample Preparation)
Equipment Type Sample Preparation Machine
Power Supply 220V, 50Hz
Operating Voltage 220V
Temperature Ambient
Max Height Approx. 25 cm
Click to view more
Share Your Product:

Request To Call Back Send Inquiry

Dumbbell Type Sample Preparation Machine Price And Quantity

Price 529.0 USD ($)/Unit
Minimum Order Quantity 1 Unit

Dumbbell Type Sample Preparation Machine Product Specifications

Response Time Immediate (Manual) Operation
Automation Grade Manual
Test Stroke N/A (Sample cutting only)
Test Range N/A (Sample Preparation)
Equipment Type Sample Preparation Machine
Application Preparation of dumbbell-shaped specimens for mechanical testing
Power Supply 220V, 50Hz
Control Mode Manual
Features Manual cutting, Compact design, Stable operation
Display Type No display
Operating Voltage 220V
Number of Specimens 1 specimen per operation
Test Width Standard dumbbell width (as per ASTM/ISO)
Test Speed Manual Operation
Temperature Ambient
Specimen Size Dumbbell shape (Type 1/2, ASTM/ISO configurable)
Machine Weight Approx. 20 kg
Max Height Approx. 25 cm
Accuracy Depends on die precision
Mounting Type Bench-top
Usage Cutting dumbbell specimens from materials like rubber/plastic
Frequency 50/60 Hz

Maintenance Easy to clean and maintain
Noise Level Low (manual operation)
Cutting Die Material Hardened Tool Steel
Die Changeability Interchangeable dumbbell dies for different standards
Safety Features ON/OFF power switch, protective cover
Body Material Powder-coated steel with stainless steel top
Dimensional Accuracy 0.1 mm (dependent on die)
Operation Method Lever-operated cutting press with safety switch

Product Description

Standards compliant:

GB/T 8804.2-2003 "Temperature pipes for thermoplastics - Determination of tensile properties - Part 2:rigid polyvinyl chloride (PVC-U), chlorinated polyvinyl chloride (PVC-C) and high-impact polyvinyl chloride (PVC-H1) machined specimens (type 1) and blanking specimens (type 2) specified in the pipe;

GB/T 8804.3-2003 "Temperature tubing - Determination of tensile properties - Part 3: Polyolefin pipes" - Dumbbell type specimens (type 1, type 2);

GB/T 1040.2-2006 "Determination of tensile properties of plastics - Part 2: Test conditions for molded and extruded plastics"

GB/T 1040.3-2006 "Determination of tensile properties of plastics - Part 3: Test conditions for films and sheets" - Dumbbell type specimens (types 5 and 1B).

Prepare sample specifications:

GB/T10402006 Type I and II dumbbell specimens specified in the Test method for tensile properties of plastics;

GB8802 hard polyvinyl chloride (PVC-U) pipe and fittings Vika softening temperature determination method" and GB1634-79 "thermoplastic softening point (Vicat) test method" specified in the thickness of > 6mm Vicat sample;

Long strip samples with a total length of 250mm, a width of 16-50mm and a thickness of 20mm;

Other shapes of samples required by the user (special order required).

Technical Parameters

Milling cutter diameter: 27mm;

Milling cutter speed: 2900 rev / min;

Work surface size: 400mm 400mm;

Sample thickness: 1 20mm;

Weight: 85Kg;

Power supply voltage: AC 380V 10%, 50Hz;

Power: 370W.

Accessories:

One set of host

One pcs of milling cutter

One pcs of mold

Versatile Sample Preparation

The machine is specifically tailored for producing high-accuracy dumbbell-shaped specimens for ASTM or ISO testing standards. Its interchangeable dies allow labs and research facilities to adapt quickly to varying sample requirements, making it suited for diverse materials, including plastics and rubbers.

Robust Construction and User Safety

Built with powder-coated steel and a stainless steel top, this bench-top unit is both sturdy and corrosion-resistant. Operator safety is enhanced by the inclusion of a safety switch, protective cover, and secure manual lever operation, ensuring risk is kept to a minimum during specimen preparation.

Easy Maintenance and Quiet Operation

Designed for user convenience, the machine is easy to clean and maintain, requiring minimal downtime. Manual operation ensures low noise levels, making it suitable for laboratory environments without disturbing ongoing work.

FAQ's of Dumbbell Type Sample Preparation Machine:

Q: How do you operate the Dumbbell Type Sample Preparation Machine?

A: To operate the machine, simply select the appropriate dumbbell-shaped cutting die, mount your specimen material, and use the manual lever to cut. The built-in protective cover and ON/OFF switch ensure a safe working process.

Q: What specimen types and standards can this machine prepare?

A: This machine can prepare dumbbell-shaped specimens from materials such as rubber and plastic, configurable for Type 1/2 shapes in accordance with ASTM or ISO standard requirements by changing the interchangeable die.

Q: Where should the machine be installed for best operation?

A: The machine is designed for bench-top mounting and is best placed in a stable, flat laboratory environment where 220V power supply is available.

Q: What maintenance is required for this machine?

A: Routine maintenance involves cleaning the stainless steel top and the cutting die after each use to prevent material buildup. All parts are designed for easy access, making upkeep simple and efficient.

Q: What are the primary safety features of this sample preparation machine?

A: Key safety features include an ON/OFF power switch, a mechanical protective cover guarding the operator during cutting, and the manual lever operation for full user control.

Q: How precise are the specimens cut by this equipment?

A: The specimen dimensional accuracy is up to 0.1 mm, which depends on the precision of the hardened tool steel cutting die being used.

Q: What are the benefits of using a manual lever-operated sample preparation machine?

A: Manual operation reduces noise levels, enhances user control over the cutting process, and ensures immediate specimen preparation without warm-up time, making this machine both convenient and efficient for routine laboratory use.
