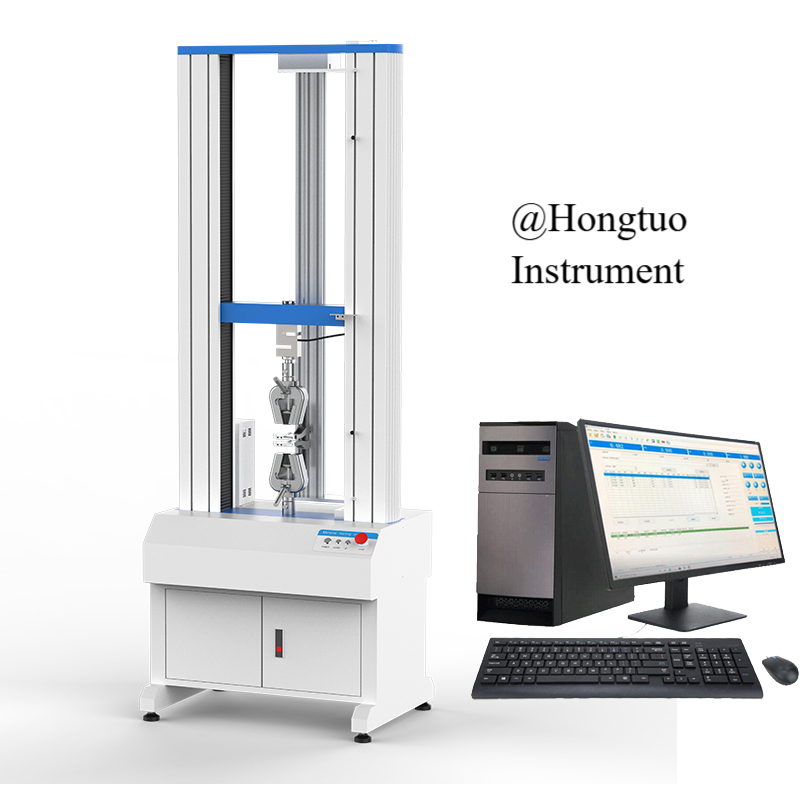

Double Column Computer Controlled Servo Universal Testing Machine
2904.0 USD ($)/Unit
Product Details:
- Features Servo Control, Overload Protection, Emergency Stop, Data Analysis Software
- Specimen Size Customizable
- Humidity 20%~80%RH
- Application Tensile, Compression, Bending, Shear Testing of Metals, Polymers, Composites & More
- Response Time Real Time
- Measuring Range 0.2%~100% FS
- Resolution 0.001 mm
- Click to view more
X
Double Column Computer Controlled Servo Universal Testing Machine Price And Quantity
- 2904.0 USD ($)/Unit
- 1 Unit
Double Column Computer Controlled Servo Universal Testing Machine Product Specifications
- Tensile, Compression, Bending, Shear Testing of Metals, Polymers, Composites & More
- 20%~80%RH
- Customizable
- 5 kN, 10 kN, 20 kN, 50 kN, 100 kN (optional)
- Servo Control, Overload Protection, Emergency Stop, Data Analysis Software
- 1%-100% FS
- Approx. 500 kg
- AC 220V 10%, 50/60Hz
- Fully Automatic
- Computer Controlled, Servo Motor
- Real Time
- 0.2%~100% FS
- 0.001 mm
- Room Temperature (10C~35C)
- USB/RS232
- 50/60 Hz
- Approx. 1800 mm
- 220V/110V
- 1 per test
- Standard
- Double Column Universal Testing Machine
- Floor Mounted
- 1000 mm
- 1%
- 400 mm
- LCD/PC Display
- Material Strength Testing
- 0.001~500 mm/min (adjustable)
- Double Column, Rigid Construction
- White with Blue Highlights
- Up to 2000 Hz
- Automatic Limit Protection, Overload Alarm
- Precision Ball Screw with Servo Motor
- Precision Linear Guides
- Mechanical Wedge Grips (Optional Pneumatic/Custom)
- Approx. 820 x 500 x 1800 mm
- USB to PC, Optional Ethernet
- 60 dB
- Windows-based, Data Export to Excel and PDF
- High Accuracy, Interchangeable
Product Description
Application industry:
Metal materials; aerospace; powder metallurgy; magnetic materials, ceramics manufacturing; rubber and plastics; metrological quality inspection; commodity inspection and arbitration; technical supervision departments; universities; research laboratories; basic materials laboratory; metallurgical steel; machinery manufacturing; Automobile production; textile and chemical fiber; wire and cable; packaging materials and food; instrumentation; medical equipment; petrochemical; civil nuclear energy; energy battery; basic materials;
Application Products:
|
Medium strength metal Sintered products Friction material Rubber Plastic Film Fiber and thin lines Adhesive |
Foam material Tape Elastomer Connector Biomaterials Wood and paper products Metal foil Metallic line |
Oil bearing Ceramics Parts Fastener Composite materials |
Standard:
ASTM, ISO, DIN, GB and other international standards.
Advanced Servo Control and Rigid Construction
Built on a robust double-column frame with a precision ball screw drive system, the machine offers superior rigidity and stability. Driven by a highly accurate servo motor, each test benefits from exceptional motion precision and consistent crosshead movement. This ensures repeatable, reliable results across all testing applications.
Comprehensive Safety and User-Friendly Software
Automatic limit protection, overload alarms, and emergency stops safeguard users and samples during testing. The intuitive Windows-based software streamlines test setup and reporting, with convenient data export options to Excel and PDF for efficient documentation and analysis.
Versatile Testing Capabilities for Diverse Materials
Equipped with interchangeable high-accuracy load cells and customizable grips, this system supports tensile, compression, bending, and shear tests on metals, polymers, composites, and more. Multiple capacity options from 5 kN up to 100 kN ensure suitability for various research, quality control, and industrial requirements.
FAQ's of Double Column Computer Controlled Servo Universal Testing Machine:
Q: How does the computer-controlled servo system enhance test accuracy?
A: The servo system, combined with a precision ball screw drive and real-time electronic feedback, enables highly controlled and repeatable crosshead movement. This results in 1% measurement accuracy and a resolution of 0.001 mm, ensuring precise material strength data.Q: What is the data export process for test results?
A: After completing a test, results are automatically processed by the Windows-based software and can be exported directly to Excel or PDF formats for further analysis, storage, or sharing with colleagues and clients.Q: When should the overload alarm and automatic limit protection be used?
A: These safety features are always active during operation. The overload alarm alerts users to excessive loads while automatic limit protection prevents the crosshead from exceeding safe movement limits, protecting both specimens and the machine.Q: Where can this universal testing machine be installed?
A: The machine is floor-mounted and requires a stable lab or industrial environment with standard AC power (220V/110V). Its dimensions (820 x 500 x 1800 mm) and operating humidity range (20%-80% RH) allow flexible placement within most QC labs, R&D centers, and production floors.Q: What is the process for testing different types of materials?
A: Simply select the appropriate load cell and grip type for your specimen; customize test speed and parameters via the testing software, and initiate the test. The machine accommodates a wide range of specimen sizes and materials, with user-configurable settings for various test standards.Q: How does this equipment benefit users in materials research and quality control?
A: By supplying highly accurate, real-time data and flexible test configurations, this machine improves the reliability and efficiency of material strength assessments, facilitating research development, product validation, and consistent quality control in industrial environments.Tell us about your requirement
Price:
Quantity
Select Unit
- 50
- 100
- 200
- 250
- 500
- 1000+
Additional detail
Mobile number
Email

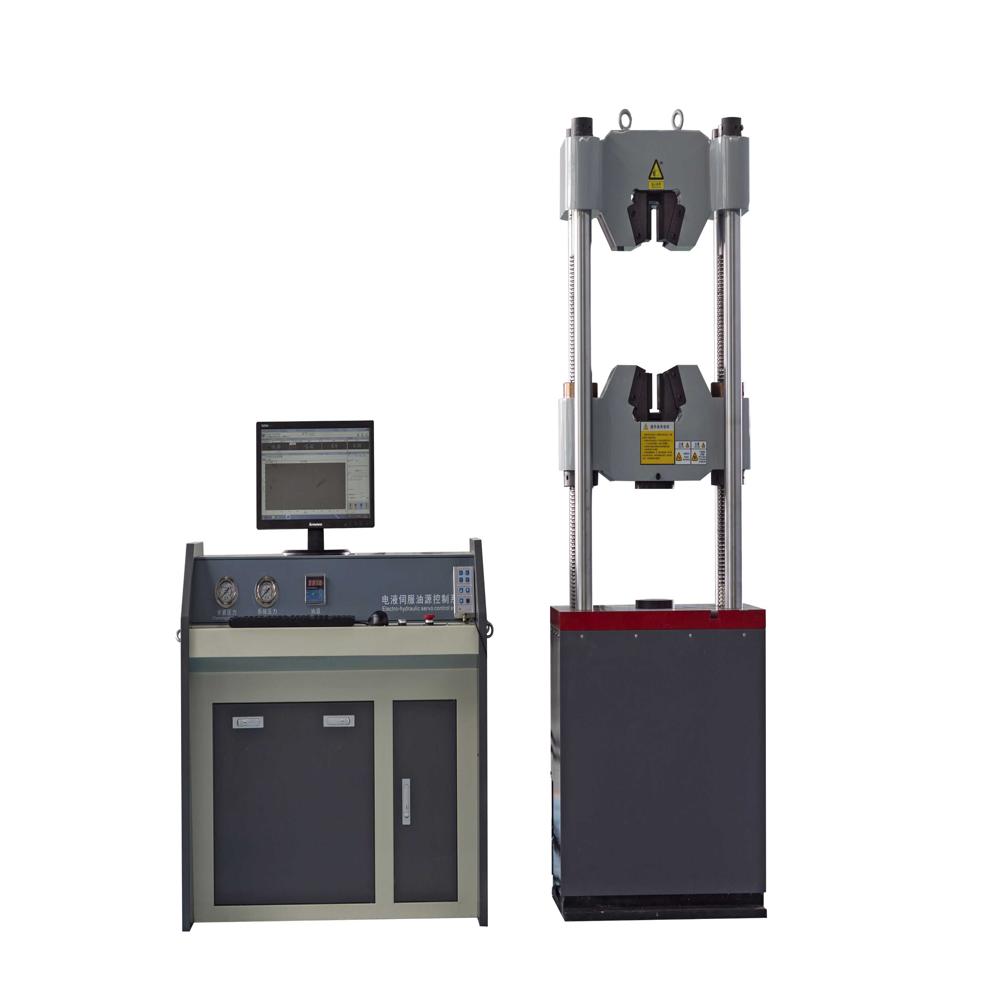

Other Products in 'Universal Testing Machine' category
