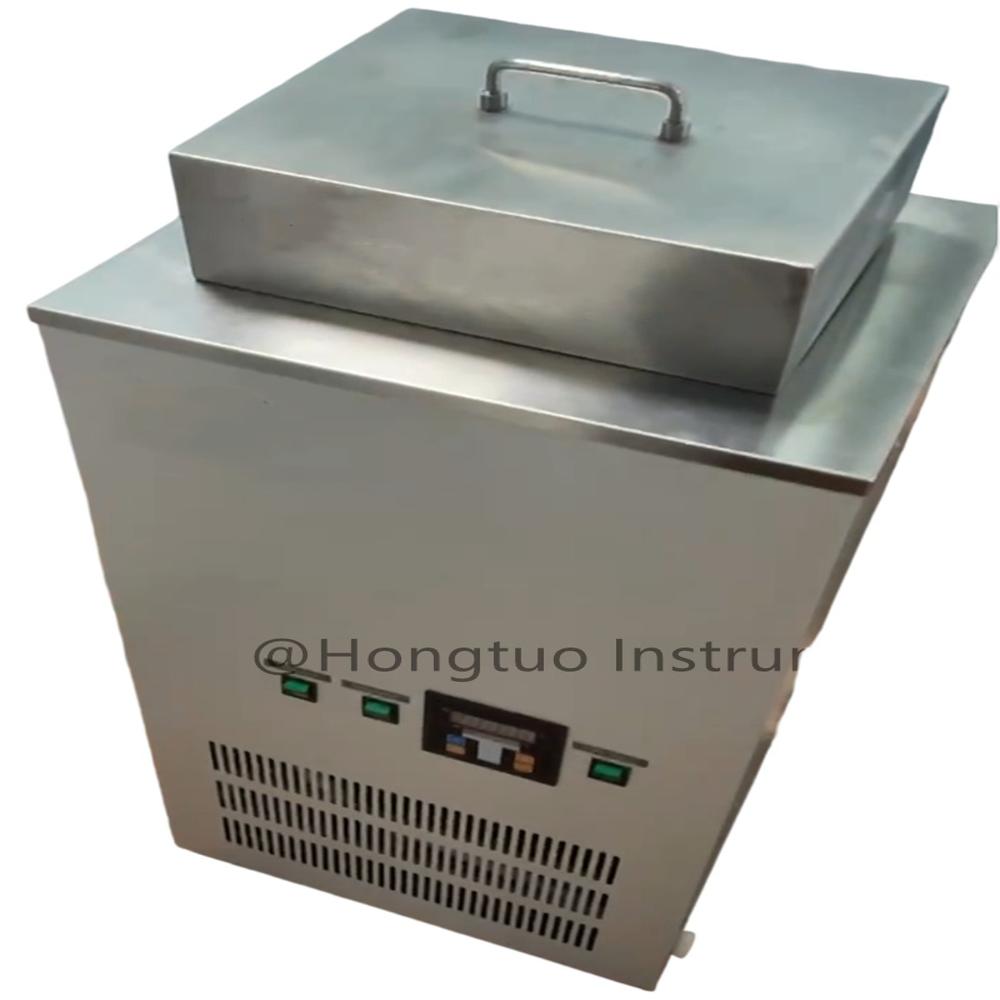

Dichloromethane Immersion Test Machine for Material Testing
1800.0 USD ($)/Unit
Product Details:
- Max Height Approx. 50 cm (Chamber Internal Height)
- Display Type Digital LED Display
- Measuring Range 0C to 60C
- Specimen Size Up to 10 x 10 x 100 mm
- Temperature 0C to 60C, adjustable
- Features Corrosion Resistant Chamber, Digital Temperature Setting, Over-temperature Alarm
- Application Dichloromethane Resistance Testing of Materials (e.g. PVC, Plastics)
- Click to view more
X
Dichloromethane Immersion Test Machine for Material Testing Price And Quantity
- 1 Unit
- 1800.0 USD ($)/Unit
Dichloromethane Immersion Test Machine for Material Testing Product Specifications
- Up to 10 x 10 x 100 mm
- 0C to 60C
- N/A (Immersion-based)
- 0C to 60C, adjustable
- Corrosion Resistant Chamber, Digital Temperature Setting, Over-temperature Alarm
- Lab and Industry Material Testing
- Approx. 50 cm (Chamber Internal Height)
- 10 - 20 Liters
- Digital LED Display
- Approx. 30 kg
- Up to 100 mm
- Multiple Specimens (dependent on size)
- Manual Switch and Digital Control Panel
- 220V 10%
- Standard immersion tank opening
- 0.5C
- 50 Hz
- Material Immersion Tester
- Material Sample Immersion Capability
- Digital Temperature Controller
- Dichloromethane Resistance Testing of Materials (e.g. PVC, Plastics)
- Immediate (for immersion control)
- 220V AC, 50 Hz
- Benchtop
- 0.1C
- Ambient
- Semi-automatic
- 15C to 35C
- Double Wall Insulated Construction
- Overheat Protection, Leakage Protection
- 1.0C
- Manual Immersion Cooling Possible
- Stainless Steel (Anti-corrosive)
- Removable Stainless Steel Lid
- Provided, Removable
- 1500 W
- Dichloromethane (Not Supplied)
- Digital, up to 99 minutes
Product Description
Introduction:
Used for dichloromethane immersion test of plastic pipes, fittings, sheets, etc. Widely used in the production, inspection and research of pipes, fittings and sheets.
Features:
1.The thermal insulation system uses an inner liner to wrap the insulation as a whole. The material uses two kinds of insulation materials, which have good thermal insulation performance and significant energy-saving benefits in long-term use.
2.When heating or cooling, the outer box is still close to room temperature, which greatly improves the safety of the whole machine and saves more than 70% of power consumption.
3.The overall material is 304 stainless steel.
4.Built-in heater, high heat exchange efficiency.
5.The refrigeration device is external, which has no effect on the laboratory temperature and no noise in midsummer.
6.The box lid is opened by a gas spring. After opening, it should meet the laboratory space.
7.Opening the lid is reliable, safe and convenient.
8.The lid of the box is sealed with silicone rubber strips, so there is no air leakage at high temperatures.
9.The structure frame box bottom has large load-bearing capacity and strong deformation resistance.
10.The temperature control system uses brand-name leakage protection devices to protect peoples safety in a timely manner.
Standards:
Conforms to GB/T13526-2007 methylene chloride immersion test method for rigid polyvinyl chloride (PVC-U) pipes.
Technical Parameter:
1.Container specification: 260x210x120mm;
2.Temperature control range: 10-50 (with heating and cooling device);
3.Temperature control accuracy: 0.5;
4.Display accuracy: 0.1;
5.Timing range: 0-99 minutes;
6.Timing accuracy: 1S;
7.Dimensions: 660X660X800mm;
8.Power supply: 220v 50Hz 3KW.
Advanced Corrosion-Resistant Construction
Boasting a double-walled stainless steel chamber, the machine maintains longevity by withstanding corrosive dichloromethane environments. Insulation between walls ensures heat retention and operator safety. The removable lid and sample holder facilitate easy handling of specimens and thorough cleaning after tests, making it ideal for repeated, reliable laboratory or industrial use.
Precision Digital Control
The immersion tester is equipped with a sophisticated digital temperature controller, offering measures from 0C to 60C with 0.5C accuracy and 0.1C resolution. The integrated digital LED display provides instant temperature feedback and real-time monitoring, while over-temperature alarms and manual switches enhance operator control and safety during testing sessions.
Designed for User Convenience and Safety
Usage is streamlined through features like a digital timer (up to 99 minutes), overheat and leakage protection, and manual immersion cooling. The benchtop mounting and approximate 30 kg weight facilitate easy placement in laboratory or industrial settings. Multiple specimens of up to 10 x 10 x 100 mm can be tested simultaneously, ensuring efficient throughput for quality assurance processes.
FAQ's of Dichloromethane Immersion Test Machine for Material Testing:
Q: How does the Dichloromethane Immersion Test Machine work for material testing?
A: This machine immerses material specimens in dichloromethane within a controlled, corrosion-resistant chamber, heating and maintaining the set temperature. The process evaluates the resistance of materials, such as PVC or plastics, by exposing them to dichloromethane for predetermined periods using a digital timer.Q: What safety features are included in this immersion tester?
A: The tester features overheat and leakage protection, a double-wall insulated chamber to minimize heat loss and external temperature, and an over-temperature alarm for enhanced operational safety. The removable lid also helps contain vapors, protecting users during testing.Q: When should I use this equipment in my lab or facility?
A: Use this immersion tester whenever you need to evaluate how materials withstand exposure to dichloromethane, particularly during quality control, development, or routine batch sampling of plastics or PVC articles according to standardized testing protocols.Q: Where can the Dichloromethane Immersion Test Machine be installed?
A: This benchtop unit is suitable for laboratories or industrial settings with ambient temperatures between 15C and 35C. Its manageable size and weight allow for flexible placement on lab benches or workstations near a 220V AC power source.Q: What is the process for conducting a test with this machine?
A: Insert up to multiple specimens in the removable sample holder, fill the chamber with dichloromethane (not supplied), set the required temperature and timer via the digital controls, and begin the test. The digital controller maintains temperature, and manual cooling can be used as needed. After the test, remove and analyze the samples.Q: What are the main benefits of using this immersion tester?
A: Key advantages include highly precise and uniform temperature control, robust corrosion-resistant stainless steel construction, the capacity for multiple samples, and comprehensive safety features, all contributing to reliable and efficient material resistance testing.Q: How do I clean and maintain the equipment after testing?
A: After testing, carefully remove the sample holder and lid, dispose of any used dichloromethane following safety guidelines, and clean the chamber with suitable materials. The stainless steel construction and removable components allow easy maintenance and prevent chemical buildup.Tell us about your requirement
