DH-WF30 Precision Colorimeter

1169.00 USD ($)/Piece

Get a Price/Quote

Product Details:

Interface Type USB
Accuracy E*ab 0.04 (test conditions: standard deviation on test white tile, 30 measurements, 5 s interval after calibration) %
Application Color difference measurement in textiles, paint, plastics, food, printing etc.
Features Portable, rechargeable, color LCD, easy operation, high precision
Humidity Relative humidity <85%
Temperature 0C - 40C (operation) Celsius (oC)
Power Supply Rechargeable lithium battery, 7.4V/1.2Ah
Click to view more
Share Your Product:

Request To Call Back Send Inquiry

DH-WF30 Precision Colorimeter Price And Quantity

Price 1169.00 USD ($)/Piece
Minimum Order Quantity 1 Piece

DH-WF30 Precision Colorimeter Product Specifications

Humidity Relative humidity <85%
Automation Grade Semi-automatic
Port Size 8 mm
Power Supply Rechargeable lithium battery, 7.4V/1.2Ah
Temperature 0C - 40C (operation) Celsius (oC)
Control Mode Button Panel + Color LCD Display
Interface Type USB
Number of Specimens Single or Multiple
Accuracy E*ab 0.04 (test conditions: standard deviation on test white tile, 30 measurements, 5 s interval after calibration) %
Specimen Size Minimum 8 mm diameter Millimeter (mm)
Features Portable, rechargeable, color LCD, easy operation, high precision
Application Color difference measurement in textiles, paint, plastics, food, printing etc.
Measuring Range L*: 0 to 100 Kelvin (K)
Machine Weight 480 g Gram (g)
Test Range E: 0-100
Operating Voltage DC 5V (charging) Volt (V)
Test Speed Approx. 1 sec/measurement
Mounting Type Handheld
Display Type TFT Color LCD
Usage Color measurement & analysis
Resolution 0.01 units
Equipment Type Precision Colorimeter
Response Time 1 second Seconds

Color Space CIE LAB, CIE LCh, HunterLAB, CIE XYZ, CIE RGB, CIE Yxy, etc.
Illumination Type D65 standard light source
Dimensions 205 mm 70 mm 100 mm
Calibration White calibration tile included
Standard Observer 10
Data Storage Up to 10000 records
Operating Environment Indoor use
Repeatability Standard deviation E*ab 0.04
Measurement Conditions Meets CIE No. 15, GB/T 3978, GB 2893, GB/T 18833

Product Description

Aperture (caliber) Application:

Caliber 4mm : Small area, cambered surface. Great convenience to measure small devices, small parts and special type of arc.

Caliber 8mm : Usual Flat surface materials. Great convenience and trustworthy reliability for its versatility, tiny table difference, and stability.

Caliber 16mm : Textured object, pitting, grainy surface or relatively large size, flexible , soft, wet samples, and Powder, Liquid, Granule, Pulp etc.

Colorimeter Application:

Colorimeter can be applicable in textile, printing and dyeing, clothing, footwear, leather, chemicals, plastics, film, pigments, paints, inks, metal, photography, toys, food medicine and other liquid, powder and special industryfor color quality control, color analysis, sample testing, production line testing, also suitable for injection molding, ink, paint, spray and other color industries.

Specification

Model	WF30
Display Mode	CIELABCIELCH
Color Difference Formula	E^*ab
Illumination Condition	CIE Recommendation8/d 45/0 Optional
Light Source	LED blue excitation
Sensor	Photodiode array
Measurement Caliber	4mm/8mm/16mm Alternative
Measurement Condition	ObserverCIE 10 Standard observer Light source: D50 D65 F11(TL84) Contain light waySCI SCE
Measurement Range	L: 0 to 100
Repeated Accuracy	E<0.05 (take the deviation average after 30 times measuring the whiteboard)
Table Difference	E<0.2
Measurement Interval	0.5 Sec.
Storage Capacity	Type sample data : 100 with testing sample data: 200
Language Patterns	English/Simplified Chinese
Battery Charging Time	8 hrs
Battery	Li-ion battery, 5000 times Measurement
Lifetime of Bulb	5 years more than 1.6 million measurements
Display Screen	TFT true color 2.8inch@(16:9) Resolution ratio:400x240
Interface of External	USB2.0 (USB-B)- data communication with color analysis systemsoftware RS-232 (115200bps)- connected with micro printer
Working Temperature Range	0-4032-104
Storage Temperature Range	-20-50-4-122
Humidity Range	Relative humidity less than 85%,without condensation
Weight	700g
Size	1996890mm
Size of Exterior Package	400240340mm
Standard Accessories	3000mAH Li-ion battery/AC adapter/USB Data line/CDColor analysis software/User manual/Warranty card
Optional Accessories	Flour measuring device/Liquid measuring device/Micro printer

Unmatched Precision & Compliance

The DH-WF30 Precision Colorimeter guarantees superior accuracy in color measurement, thanks to its compliance with strict international standards such as CIE No. 15, GB/T 3978, and others. With a repeatability of E*ab 0.04, and multiple color analysis modes, it is the preferred choice for labs and industries requiring stringent color quality control.

Simple Operation & Portability

Operating the DH-WF30 is remarkably simple, with a button panel and color LCD display enhancing ease of use. Lightweight at just 480 grams and featuring a rechargeable lithium battery, the device is fully portable and perfect for on-site or in-lab color analysis, wherever precision matters.

Extensive Data Management

Benefit from the ability to store up to 10,000 measurement records, ensuring comprehensive data management for your workflow. Fast USB connectivity further eases data transfer and documentation, while the included calibration tile ensures repeatable and reliable results for every measurement session.

FAQ's of DH-WF30 Precision Colorimeter:

Q: How do I calibrate the DH-WF30 Precision Colorimeter?

A: To calibrate the DH-WF30, simply place the included white calibration tile onto the measurement port and follow the on-screen prompts. Regular calibration ensures ongoing measurement accuracy and consistency.

Q: What are the main applications of the DH-WF30 Precision Colorimeter?

A: This device is suitable for color difference measurement and analysis in textiles, paint, plastics, food, and printing industries. Its precision and color space versatility make it effective for quality control, R&D, and production monitoring.

Q: When should I perform a calibration with this colorimeter?

A: Calibration is recommended at the start of each measurement session, after any significant environmental change, or after approximately 30 measurements to maintain optimal accuracy and reliability.

Q: Where can the DH-WF30 be used?

A: The colorimeter is designed for indoor use in laboratories, production lines, or quality assurance areas, operating best at temperatures between 0C and 40C and relative humidity below 85%.

Q: What is the process for measuring color with this device?

A: Simply power on the DH-WF30, complete calibration with the white tile, place the measurement port against your specimen (minimum 8 mm diameter), and press the measurement button. Results are displayed instantly on the color LCD.

Q: What benefits does the DH-WF30 offer over other colorimeters?

A: The DH-WF30 provides high measurement accuracy (E*ab 0.04), fast test speed (1 second), extensive data storage, portability, user-friendly operation, and compliance with international color measurement standards, ensuring reliable and efficient performance in various industrial settings.

Tell us about your requirement

Price:

Quantity

Select Unit

50
100
200
250
500
1000+

Additional detail

Mobile number

Other Products in 'Optical Measuring Machine' category

3D Optical Image Video CNC Measuring Machine Price : 11099 USD ($)/Set Price Range : 5899.00 - 19999.00 USD ($)/Set Minimum Order Quantity : 1 Specimen Size : Max 200 mm x 200 mm Capacity : Varies by application Number of Specimens : Single Specimen Max Height : 100 mm (Zaxis) Automation Grade : Fully Automatic Resolution : 0.001 mm Usage : Automatic Image Measuring Instrument Response Time : Immediate (<0.5s) Test Speed : 0200 mm/s (programmable) Display Type : Highresolution LCD display Mounting Type : Benchtop Test Range : 0200 mm Measuring Range : 200 mm x 200 mm x 100 mm (XYZ) Machine Weight : Approx. 300 kg Accuracy : 2 m Application : Precision dimensional measurement, quality control Features : 3D image stitching, autofocus, programmable operation Interface Type : USB 2.0, Ethernet Control Mode : CNC Automatic Frequency : 50/60 Hz Temperature : 10C~30C Power Supply : AC 220V, 50/60Hz Humidity : 20%~80% RH (noncondensing) Equipment Type : 3D Optical Image Video CNC Measuring Machine Operating Voltage : 220V AC Test Width : 200 mm Port Size : Standard USB/Ethernet Test Stroke : 200 mm (X/Y), 100 mm (Z) Gas Pressure : No Gas Required

Send Inquiry

Optical Image Dimension Measurement Video Machine DH-5040F Price : 6239 USD ($)/Set Price Range : 4099.00 - 7999.00 USD ($)/Set Minimum Order Quantity : 1 Specimen Size : Max 500 400 mm Capacity : Supports up to 10 kg Number of Specimens : Single or Batch Mode Max Height : 200 mm (Z axis) Automation Grade : Fully automatic with manual override Resolution : 0.001 mm Usage : Precision optical dimensional measurement Response Time : < 1 second Test Speed : Up to 120 mm/s Display Type : Highresolution embedded 22inch monitor Mounting Type : Benchtop Test Range : 500 mm (X) 400 mm (Y) Measuring Range : X axis: 500 mm, Y axis: 400 mm, Z axis: 200 mm Machine Weight : 260 kg Accuracy : 2 m Application : Precision measurement of dimensions in electronics, hardware, metal and precision parts Features : Noncontact measurement, automatic edge detection, video recording, programmable measurement routines Interface Type : USB, VGA, RS232 Control Mode : Automatic/Manual Frequency : 50 Hz Temperature : 10C~30C Power Supply : AC 220V/50Hz Humidity : 20%~80% RH (noncondensing) Equipment Type : Optical Image Dimension Measurement Video Machine Operating Voltage : 220V AC Test Width : 400 mm Port Size : Standard USB, VGA, and Video ports Test Stroke : 500 mm Gas Pressure : 0.5~0.7 MPa Hardness : N/A (not applicable)

Send Inquiry

High Precision Digital Measuring Profile Projector Price Optical Comparator Price : 3364.00 INR/Set Minimum Order Quantity : 1 Specimen Size : Up to 150 mm diameter Millimeter (mm) Capacity : High Precision Ltr Number of Specimens : Single or multiple Max Height : 300 mm Automation Grade : SemiAutomatic Resolution : 0.001 mm Usage : Dimensional analysis, shape inspection, laboratory and industrial inspection Response Time : Instantaneous Seconds Test Speed : 0100 mm/sec Display Type : Digital LCD/LED Mounting Type : Stand alone tabletop Test Range : 0300 mm Measuring Range : 0300 mm Kelvin (K) Machine Weight : 120 kg Kilograms (kg) Accuracy : 0.002 mm % Application : Profile measurement, dimension analysis, shape comparison Features : High accuracy, efficient measurement, ergonomic design Interface Type : RS232, USB, VGA Control Mode : Digital / Manual Frequency : 50 Hz Hertz (HZ) Temperature : 10 C to 40 C Kelvin (K) Power Supply : AC 220V 10%, 50Hz Humidity : 85% RH Equipment Type : Digital Measuring Profile Projector Operating Voltage : 220V/50Hz Volt (V) Test Width : 150 mm Millimeter (mm) Port Size : Standard (customizable) Test Stroke : 100 mm Gas Pressure : 0.5 0.7 MPa mpa

Send Inquiry

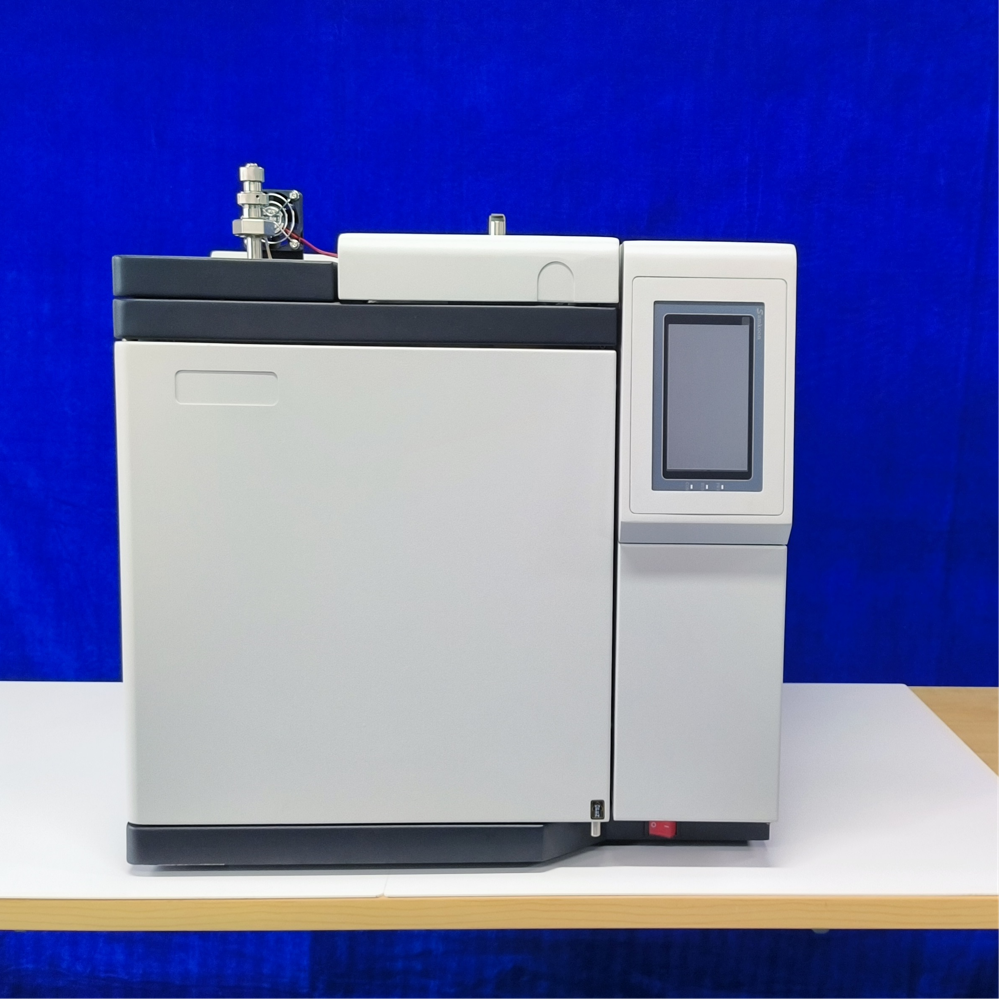

RoHS 2.0 Phenylene Testing Pyrolysis Gas Chromatograph DX-6600M Price : 17600.0 USD ($)/Piece Minimum Order Quantity : 1 Specimen Size : 550 mg (typical sample mass range for pyrolysis) Capacity : Single sample tube per analysis (autosampler optional) Number of Specimens : Single sample per run (multiple runs possible with autosampler) Max Height : Approx. 450 mm Automation Grade : Semiautomatic (fully automatic with autosampler) Resolution : 0.01 ppm or better (method and detector dependent) Usage : Analytical laboratory, compliance testing, research institutes Response Time : <1 second (detector), methoddependent for full analysis Test Speed : Programmable, adjustable as per analysis requirements Display Type : 7inch TFT touchscreen LCD Mounting Type : Benchtop/Laboratory Setup Test Range : RoHS 2.0 analytes (phthalates, PBDE, PBB, and others as required) Measuring Range : 0.01 ppm 1000 ppm (method dependent) Machine Weight : Approximately 45 kg Accuracy : 3% FS or better (method dependent) Application : RoHS/ELV/WEEE compliance testing, environmental protection, electronic materials analysis Features : High temperature pyrolysis interface, multiple detection modes, system selfdiagnosis, realtime data acquisition, userfriendly interface Interface Type : USB, RS232, LAN Ethernet Control Mode : Touchscreen panel / PC Software control Frequency : 50/60 Hz Temperature : Ambient +5C to 350C (oven); Maximum ramp rate: up to 30C/min Power Supply : AC 220V, 50/60Hz Humidity : 80% RH, noncondensing Equipment Type : Pyrolysis Gas Chromatograph for RoHS 2.0 Phenylene Testing Operating Voltage : 220V AC Test Width : N/A (not applicable for GC instruments) Port Size : Standard gas chromatograph column interface size Gas Pressure : Carrier gas pressure: 0.40.5 MPa (adjustable) Hardness : N/A (not a hardnessrated product)
