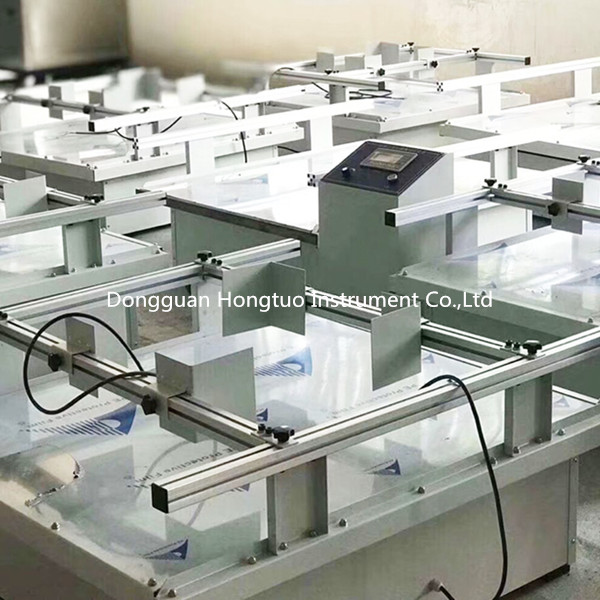

DH-SV-01 Car Simulation Transportation Vibration Table

DH-SV-01 Car Simulation Transportation Vibration Table

1171.00 USD ($)/Set

Get a Price/Quote

Product Details:

Dimension (L*W*H) 1200 1000 650 (mm) Millimeter (mm)
Power Supply AC 220V/50Hz
Gas Pressure N/A (electric driven) N/mm2
Resolution 0.1 rpm/min
Temperature 0~40C (operating temperature) Celsius (oC)
Specimen Size Maximum 1000 x 1000 mm Millimeter (mm)
Display Type Digital display panel
Click to view more
Share Your Product:

Request To Call Back Send Inquiry

DH-SV-01 Car Simulation Transportation Vibration Table Price And Quantity

Price 1171.00 USD ($)/Set
Minimum Order Quantity 1 Set

DH-SV-01 Car Simulation Transportation Vibration Table Product Specifications

Measuring Range Simulated transportation vibration frequency 1-600/min Fahrenheit (oF)
Port Size Standard 220V power port
Humidity 85%RH (operating humidity)
Equipment Type Car Simulation Transportation Vibration Table
Hardness Reinforced steel and alloy frame
Automation Grade Semi-automatic
Power AC220V Volt (v)
Operating Voltage 220V 10% Volt (V)
Mounting Type Floor mounting
Test Stroke 25.4 mm (1 inch)
Application Package transportation vibration simulation, carton vibration testing
Interface Type Control box with digital interface
Response Time 1 second Seconds
Test Range Package cartons, container transportation tests
Features Stepless speed regulation, digital display, easy specimen fixation
Control Mode Microcomputer control
Machine Weight Approx. 180 kg Kilograms (kg)
Capacity 100kg Kg
Usage manufacturing, assembly, transportation and use of new products to determine whether the product can withstand environmental vibration
Accuracy 3% (Speed accuracy) %
Number of Specimens 1 specimen per test
Max Height Table height approx. 650 mm
Test Width 1000 mm Millimeter (mm)
Test Speed 60~300 rpm/min (stepless speed regulation)
Frequency 1-600/min (adjustable) Hertz (HZ)
Display Type Digital display panel
Specimen Size Maximum 1000 x 1000 mm Millimeter (mm)
Temperature 0~40C (operating temperature) Celsius (oC)
Gas Pressure N/A (electric driven) N/mm2
Resolution 0.1 rpm/min
Power Supply AC 220V/50Hz
Dimension (L*W*H) 1200 1000 650 (mm) Millimeter (mm)

Table Material Stainless steel with wear-resistant coating
Operation Method Touch panel start/stop, speed up/down keys
Testing Standard ISTA, ASTM, ISO 2247, and other common transit standards
Cooling Method Ventilated base unit
Fixture Type Adjustable fixture rails
Noise Level 60 dB(A)
Finish White powder coated
Safety Features Overload protection, emergency stop switch
Model Number DH-SV-01

Product Description

Application:

The car simulation transport vibration table is a weapon to improve your high-quality field. It simulates the various vibration environments encountered in the manufacturing, assembly, transportation and use of new products to determine whether the product can withstand environmental vibration. . Applicable to the research, development, quality control and manufacturing of electronics, electromechanical, optoelectronics, automobiles, toys, packaging----all other industries.

It is an indispensable test instrument for improving product quality. The simulated transport vibration table is mainly used to simulate the collision of goods and articles produced by the product in the car trunk when the vehicle encounters different road conditions such as bumps, uphills, downhills, corners, etc. Collision, extrusion of items and articles, etc., cause damage to the product, thereby further improving the quality of the article and the quality of the package. In order to obtain the basis for the assessment of the packaging of the articles and articles by obtaining the influence of the actual working conditions on the articles in the laboratory.

Features:

1. competitive price

2. the digital screen dispaly the vibration frenquency

3. use rail track for the installation of the test sample, oprate easily and safely

4. the pedestal of the machine applies heavy style channel with vibration attenuation pad, convenient, stable,no need to install the land-end screw.

5. Silent, can be used in office buildings, laboratories

Standards:

EN ANSI, UL, ASTM, ISTA international transportation standards

Synchronous noise suppression belt drive, the noise is extremely low

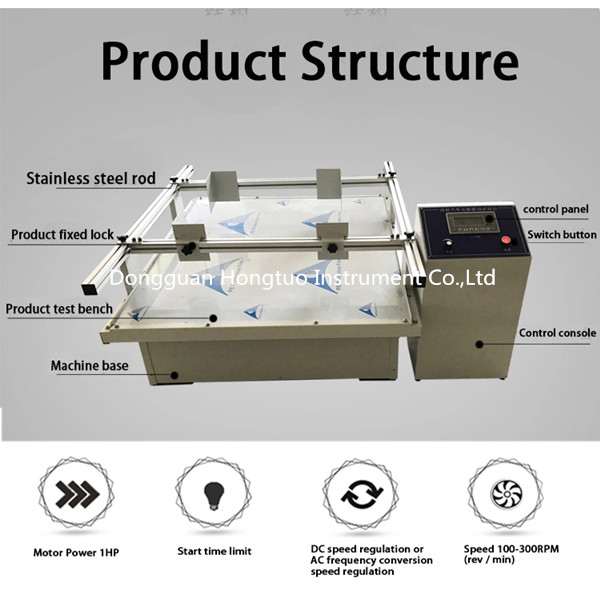

The sample is clamped by guide rail, which is convenient and safe to operate

The base of the machine adopts heavy-duty channel steel with vibration-damping rubber pad, which is easy to install and runs smoothly, without the need to install anchor screws

DC motor speed regulation, smooth operation and strong load capacity

Rotary vibration (commonly known as horse race) conforms to European and American transportation standards

Specification:

Vibration mode	Rotary (horse race)
Vibration frequency	100300rpm
Simulated speed	25-80km/h
Maximum load	100kg
amplitude	25.4mm
Effective work surface size	1200x1000mm
Motor Power	1HP (0.75kw)
Table size	1200 1000 650 (mm)
Timer	9999M
Machine weight	180kg
Display frequency accuracy	1rpm
power supply	AC220V 10A

Advanced Simulation & Safety Features

The DH-SV-01 incorporates microcomputer control, stepless speed regulation, and a digital interface for precise testing. Safety is prioritized with an emergency stop switch and overload protection. The robust construction, adjustable fixture rails, and reinforced alloy frame keep specimens securely in place, ensuring safe and reliable operation even in extended testing scenarios.

Versatile Applications & Reliable Results

Ideal for manufacturers, exporters, and suppliers, the DH-SV-01 enables standard-compliant transportation vibration tests for cartons, containers, and packaging. With its adjustable fixture rails and wide test range, this equipment verifies product durability through simulated transport scenarios, supporting packaging development, manufacturing quality control, and performance assessment of new products.

FAQ's of DH-SV-01 Car Simulation Transportation Vibration Table:

Q: How does the DH-SV-01 Car Simulation Transportation Vibration Table operate for testing packaging durability?

A: The DH-SV-01 uses a digitally controlled microcomputer system to simulate transportation vibrations within a frequency range of 1-600/min. You can adjust speeds steplessly (60-300 rpm/min) via a touch panel. The table accommodates specimen sizes up to 1000 x 1000 mm and secure mounting with adjustable fixture rails, enabling accurate assessment of package resilience during transit.

Q: What are the main testing standards supported by this vibration table?

A: The DH-SV-01 is engineered to comply with international testing standards, including ISTA, ASTM, ISO 2247, and other common transit standards. This assures users that test results are credible and applicable across global logistics and packaging evaluations.

Q: When should you use the DH-SV-01 for product testing?

A: It is ideal to use the DH-SV-01 when evaluating packaging designs, performing quality checks before shipping, or assessing whether new products can withstand transport conditions. The equipment helps identify weaknesses in packaging or products before they are exposed to real-world transit environments.

Q: Where can this vibration table be installed and used?

A: Owing to its floor mounting design and compact footprint (1200 x 1000 x 650 mm), the DH-SV-01 can be installed in laboratories, quality control departments, research facilities, or production sites that require package and product vibration testing.

Q: What is the process for conducting a vibration test using the DH-SV-01?

A: First, place and secure a specimen (up to 1000 x 1000 mm, max 100 kg) on the table using the adjustable rails. Set parameters such as frequency, speed, and duration via the digital touch panel interface. Start the test, observe results on the digital display, and use the emergency stop or overload protection if needed for safety.

Q: How does the DH-SV-01 benefit packaging manufacturers and exporters?

A: By simulating transportation-induced vibrations, this equipment enables manufacturers and exporters to validate the durability of packaging, reduce product damage during shipment, and ensure compliance with international transport standards, saving costs associated with returns and damages.

Q: What are the key usage features that enhance test versatility and accuracy?

A: Notable features include stepless speed regulation, a quick-response digital display, adjustable specimen fixtures, and semi-automatic controls. The microcomputer's accuracy (3%) and fine resolution (0.1 rpm/min) ensure precise vibration simulation, while the strong stainless steel construction and ventilated base safeguard reliable operation.
