DH-SMT-2T Stormer Viscometer

Name: DH-SMT-2T Stormer Viscometer
Brand: Guangdong Hongtuo Instrument Technology Co.,Ltd .
Price: 685.0 USD
Availability: InStock

685.0 USD ($)/Piece

Get a Price/Quote

Product Details:

Operating Voltage AC 220V 10% Volt (V)
Test Range 40-141 KU; 32-1099 g (gm) ; 27-5250 cP
Power Supply AC 220V, 50Hz
Measuring Range 40-141 KU, 32-1099 g, 27-5250 cP Rankine
Frequency 50Hz Hertz (HZ)
Accuracy 1% of full scale %
Specimen Size Stormer standard container (approx. 500 mL) Meter (m)
Click to view more
Share Your Product:

Request To Call Back Send Inquiry

DH-SMT-2T Stormer Viscometer Price And Quantity

Price 685.0 USD ($)/Piece
Minimum Order Quantity 1 Piece

DH-SMT-2T Stormer Viscometer Product Specifications

Test Width 110 mm Millimeter (mm)
Usage Viscosity measurement
Equipment Type Digital Stormer Viscometer
Max Height 470 mm
Specimen Size Stormer standard container (approx. 500 mL) Meter (m)
Response Time <3 seconds Seconds
Machine Weight 11 kg Kilograms (kg)
Capacity 500 ml Ltr
Temperature 5C ~ 35C Celsius (oC)
Features Automatic stirring, digital display, programmable timer, data memory
Humidity 80% RH
Number of Specimens 1 at a time
Power Supply AC 220V, 50Hz
Test Range 40-141 KU; 32-1099 g (gm) ; 27-5250 cP
Operating Voltage AC 220V 10% Volt (V)
Test Stroke 150 mm
Accuracy 1% of full scale %
Frequency 50Hz Hertz (HZ)
Measuring Range 40-141 KU, 32-1099 g, 27-5250 cP Rankine
Control Mode Touch Screen Control
Resolution 0.1 KU
Test Speed 200 rpm 0.5% (Standard), 1000 g
Mounting Type Bench-top
Interface Type USB (optional for data export)
Port Size Standard fit for Stormer Can
Application Paints, coatings, inks, adhesives, and other viscous materials
Automation Grade Automatic
Display Type Touch screen LCD

Material of Test Cup Stainless Steel SUS304
Ambient Conditions Non-corrosive, dust-free environment
Dimension 330 320 470 mm (L W H)
Motor Power 40 W
Calibration Method Auto Calibration with standard oils
Timer Range 0-999 seconds (settable)
Language Support Multi-lingual Touchscreen Interface

Product Description

1. Main Features

The operation interface is simple and clear, and the viscosity test can be done quickly and conveniently through the creation of test program and data analysis;

Viscosity measurement accuracy: automatic calibration by computer, high precision, small error;

The display rich content: in addition to KU, G, CP of the three commonly used parameters, and temperature measurements for the full-scale value percentage (graphics), viscosity curve, range overflow alarm, timing, clock date, etc.;

Timing measurement: very practical. We measured the paint, ink, paint is a typical non Newtonian fluid, the viscosity and temperature on the outside (except the temperature rise, but also with the decrease of viscosity) measurement time length. The paint has ink and paint is shear thinning characteristics, the longer the time of measurement of viscosity the smaller, if the viscosity of samples of the same class are comparable, the measurement time must be the same;

USB interface,insert U disk to copy measurement data directlyoptional

Self built 30 sets of test procedures: can be compiled, can quickly call;

Access to 30 sets of measurement data and curves; stored in the viscometer, the data include sample name, KU, G, CP value, measurement date, etc.;

The real-time display of the viscosity curve: on the screen at any time watch;

Can connect micro printer and computer: there are two interfaces, serial connection computer, parallel port connection printer;

The front level: the rotor is vertically placed in the sample, it is important to the accuracy of measurement data. Through the observation level in front of the three foot level, which can conveniently adjust the base level of the bubble will be adjusted to the middle position (the current domestic Stormer viscometer on the market are not level regulating device);

Rich optional accessories: temperature probe, viscometer thermostat, constant temperature cup, printer, standard viscosity sample, etc.

DH-STM-2T Strmer viscometer is widely used to determine the paint, ink, paint or other KU values to represent the viscosity of the industry, in line with international standards ASTM, D562 and GB9296 and other related standards.

2. Detailed Technical Parameters:

model	DH-STM-2T
Control / display mode	5 inch color touch screen
speedr/min	2000.1
measuring range	40.2KU 141.0KU 32g 1099g 27 5250CP
Measurement accuracy	3%
measurement reproducibility	1.5%
Measuring container	1 pint
timing	Flexible setting according to sample situation
temperature measurement	Standard temperature probe interface (need to match temperature probe)
Self built measurement procedure	Can save 30 sets (including sample, measurement time, date)
Save the measurement results	30 sets of data (including KU, G, cP, time, curves, etc.) can be saved
viscograph	Real time display viscosity curve
Print	Data, curves can be printed (need to choose printers)
data output interface	USB interface: insert U disk to copy data directly (optional) RS232 interface: connectable computer
Thermostatic unit	Options (including special viscometer thermostatic bath, thermostatic cup)
working power supply	110V / 60Hz or 220V / 50Hz
outline dimension	300 300 450mm

Accurate Digital Viscosity Measurement

The DH-SMT-2T Stormer Viscometer delivers high-precision digital readings, offering a broad measurement range (KU, g, cP) suitable for quality control and research in the paint, coating, and ink industries. Its automatic calibration and programmable timer guarantee consistent, reproducible results every test.

User-Friendly Operation and Touchscreen Control

Operating the viscometer is straightforward with its multilingual touchscreen LCD display, allowing users to effortlessly navigate settings. The robust automatic stirring and bench-top mounting further streamline testing, making accurate viscosity measurement both simple and efficient.

Reliable Performance in Industrial Environments

Designed for longevity and reliability, the DH-SMT-2T is housed in a dust-free, non-corrosive compatible enclosure. Its stainless steel construction, USB data export option, and memory function enhance productivity and data management for laboratory and industrial users alike.

FAQ's of DH-SMT-2T Stormer Viscometer:

Q: How does the DH-SMT-2T Stormer Viscometer achieve accurate calibration?

A: The viscometer features an automatic calibration system using standard calibration oils, ensuring each measurement is precisely aligned with industry standards for accuracy and repeatability.

Q: What types of materials can be tested with this viscometer?

A: It is ideal for measuring the viscosity of a range of viscous materials, including paints, coatings, inks, adhesives, and similar substances, making it versatile for various applications.

Q: When should I use the DH-SMT-2T Viscometer for testing in my process?

A: Use the viscometer during quality control, product development, or routine inspection stages to monitor and ensure product consistency and performance throughout your production or research process.

Q: Where is the optimal place to use or install this viscometer?

A: The DH-SMT-2T is designed for bench-top installation in laboratories or production environments that are dust-free and non-corrosive, ensuring the instrument's longevity and reliable performance.

Q: What is the typical process for measuring viscosity with this viscometer?

A: Simply fill the standard 500 ml Stormer container with your sample, set the required test parameters on the touchscreen, insert the test cup, and initiate the test. The equipment automatically stirs and records the viscosity within seconds.

Q: How does the touchscreen interface benefit users?

A: The multi-lingual touchscreen LCD allows for quick setting adjustments, viewing of results, access to programmable timers, and monitoring of all parameters in real-time, enhancing usability and reducing operator error.

Q: What are the benefits of using a digital viscometer like this model?

A: Digital viscometers offer automated operation, higher accuracy, data memory, optional USB export for easy data transfer, and simple controls, making viscosity measurement faster, more reliable, and more user-friendly than manual or analog alternatives.

Tell us about your requirement

Price:

Quantity

Select Unit

50
100
200
250
500
1000+

Additional detail

Mobile number

Other Products in 'Digital Viscosity Meter' category

Digital ASTM Paint KU Krebs Viscometer Stormer Viscometer Price : 685.00 INR/Set Minimum Order Quantity : 1 Usage : Paint Laboratory Testing Power Supply : 220V AC 10%, 50/60 Hz Test Speed : 200 1 RPM Interface Type : RS232 Serial Display Type : Digital LED Display Specimen Size : 500 mL (Standard Sample Container) Millimeter (mm) Machine Weight : 7 kg Kilograms (kg) Test Range : 40~141 KU Operating Voltage : 220V AC Volt (V) Measuring Range : 40 141 KU (32 1099 g); 27 5274 cP Kelvin (K) Frequency : 50 Hz Hertz (HZ)

Send Inquiry

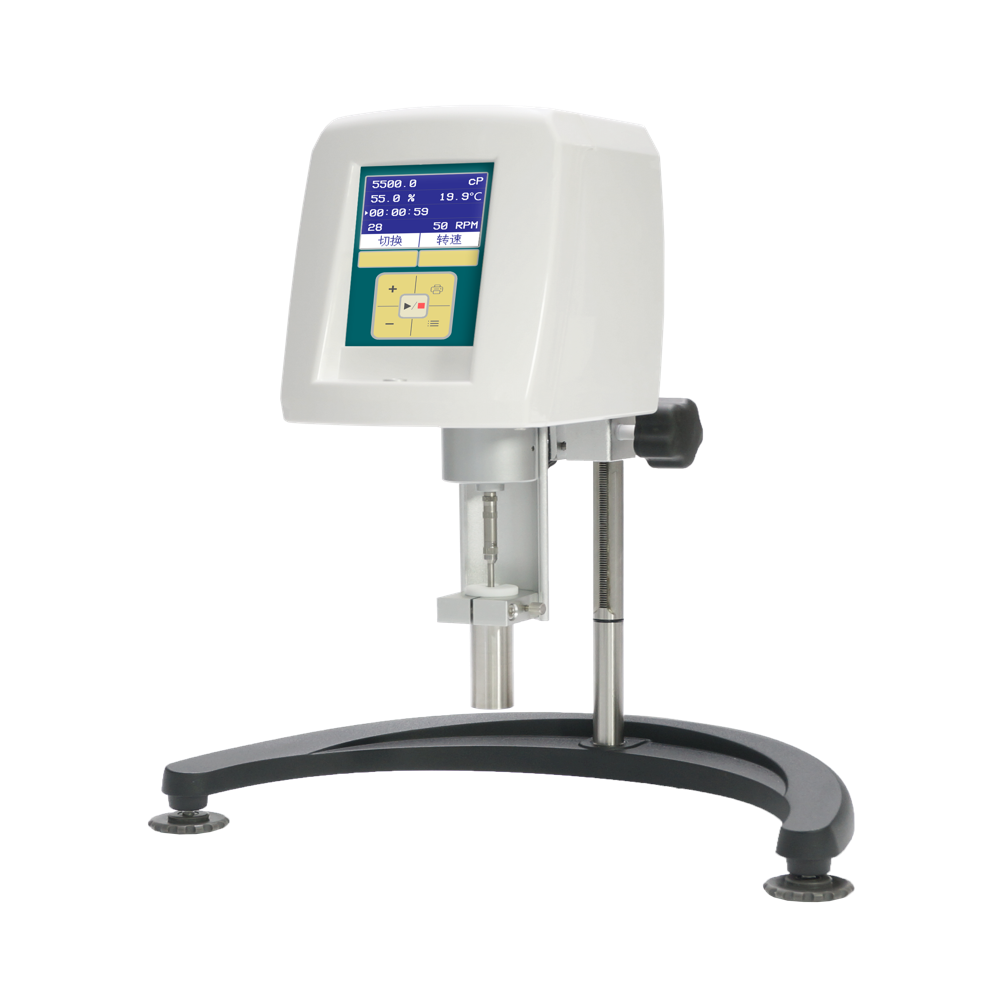

SSR Series Digital Rotary Viscometer Price : 1040.0 USD ($) Minimum Order Quantity : 1 Usage : Paint, asphalt (SHRP), paper coating, ceramics, pulp, frost, like objects, plastic sols, daily chemicals, starch, food products, surface coatings, resin, gum, toothpaste, silk mark ink, bright agent, organic solvents Test Speed : 0.3 100 Total 37 Interface Type : RS232: Connect printer (dedicated); RS232: connect computer (dedicated) Display Type : Digital display Specimen Size : ULR: 21ml 18,25,31,34 rotor 711ml Meter (m) Test Range : 1 1.6MPa.s Operating Voltage : 110V or 220V Volt (V) Measuring Range : 1 1.6MPa.s ULR: 1 1K 18 rotor 3 10K 25 rotor 480 1.6M 31 rotor 30 100K 34 rotor 60 200K Rankine Frequency : 60Hz or 50Hz Hertz (HZ)
