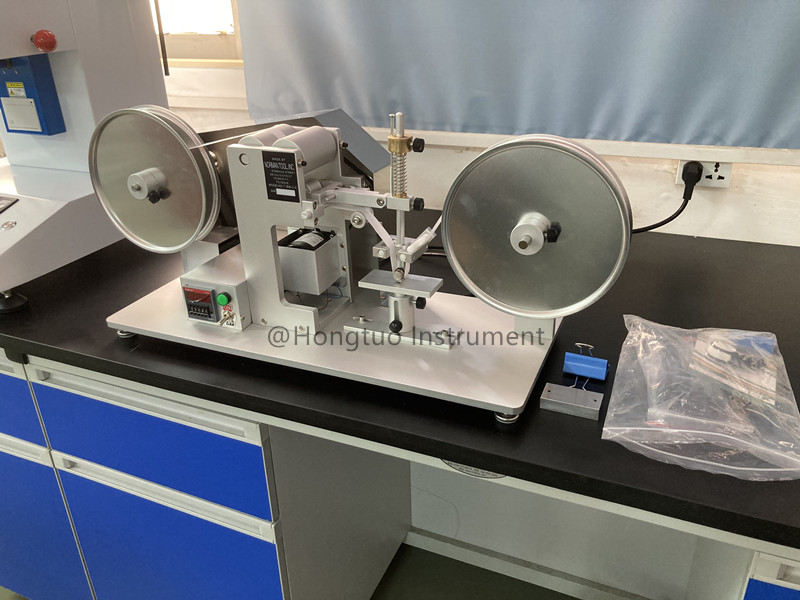

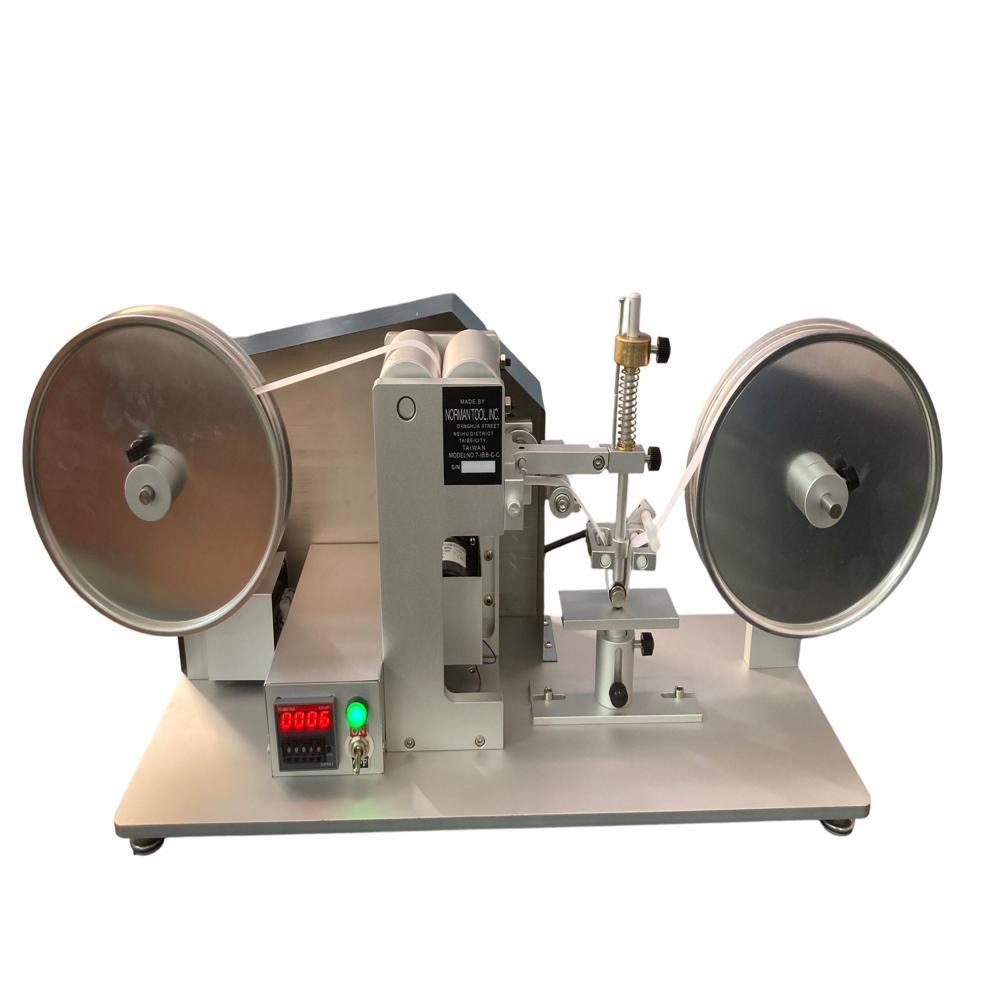

DH-RCA Abrasion Tester for Surface Wear Testing

DH-RCA Abrasion Tester for Surface Wear Testing

Name: DH-RCA Abrasion Tester for Surface Wear Testing
Brand: Guangdong Hongtuo Instrument Technology Co.,Ltd .
Price: 492.0 USD
Availability: InStock

492.0 USD ($)/Unit

Get a Price/Quote

Product Details:

Frequency 50Hz
Temperature 15C ~ 40C (Operating condition)
Accuracy 1 cycle
Equipment Type Abrasion Tester
Response Time Immediate (mechanical)
Operating Voltage 220V 10%
Display Type Digital LED counter
Click to view more
Share Your Product:

Request To Call Back Send Inquiry

DH-RCA Abrasion Tester for Surface Wear Testing Price And Quantity

Price 492.0 USD ($)/Unit
Minimum Order Quantity 1 Unit

DH-RCA Abrasion Tester for Surface Wear Testing Product Specifications

Temperature 15C ~ 40C (Operating condition)
Frequency 50Hz
Display Type Digital LED counter
Response Time Immediate (mechanical)
Operating Voltage 220V 10%
Equipment Type Abrasion Tester
Accuracy 1 cycle
Machine Weight About 15 kg
Control Mode Digital counter and manual
Test Stroke 100 mm (standard)
Specimen Size Maximum 100 mm 50 mm
Application Surface wear/abrasion resistance testing
Features Simple operation, precise test, durable performance
Interface Type Push button + display
Capacity Testing paper length up to 11 m
Humidity 85% RH (Operating condition)
Usage Lab abrasion and wear testing
Mounting Type Benchtop/Tabletop
Test Speed 60 cycles/min (adjustable)
Automation Grade Semi-automatic
Resolution 1 cycle
Test Width 15 mm
Max Height Approx. 300 mm (overall)
Measuring Range 0~9,999 cycles
Number of Specimens Single specimen per test
Power Supply AC 220V, 50Hz
Test Range Surface abrasion testing for various materials

Fixture Adjustment Range Up to 30 mm vertically for specimen thickness
Drive Mode Electric motor drive
Abrasive Type Standard RCA paper roll or equivalent
Noise Level 60 dB
Service Support Onsite installation & training available
Test Duration Setting Programmable via digital counter
Finish Anodized aluminum, stainless steel
Abrasion Pressure Weight-based, 175g (standard), 275g and 55g optional
CE Certification Yes
Abrasion Paper Roll Width 19 mm (standard)

Product Description

Application:

The RCA Abrasion Wear Tester is used to test surfaces for resistance to abrasion and wear. Typically used on painted or plated organic finishes, foil, and inked key pad lettering.

This tester is widely used as a standard for many silicone key pad and membrane switch manufacturers. This abrasion tester is used as a standard to the auto, appliance, cell phone,plastics, and coating industries. It uses an inexpensive roll of throw away abrasion paper. All build-up error is eliminated and consistent readings are easily obtained.

Standards:

ASTM F2357-04: Standard Test Method for Determining the Abrasion Resistance of Inks and Coatings on Membrane Switches Using the Norman Tool RCA Abrasion tester.

Features:

l Easy set-up and operation

l Automatic shut-off

l Repeatable and consistent results

l 3 load settings, 55g 175g 275g

l Abrasion Debris does not affect test

l Continuously uses inexpensive unused abrasive media

Specification:

Surface meter	One
Tools	One group
Test Load	55g, 175g, 275g Each one
Dust Cover	One
Magnifier	One
Pan-use Fixer	One
O-Ring	Three
Paper Tape	One Roll
counter range	Setting
Dimensions (tester main unit)	803838cm(HDW)
Weight (tester main unit)	30KG
Power	220V, 5A

Precision Surface Wear Testing

Engineered for accuracy, the DH-RCA Abrasion Tester offers a programmable cycle range up to 9,999, controlled through a digital LED interface. Its weight-based abrasion mechanism and adjustable fixtures ensure consistent, reproducible results on a variety of sample thicknesses and sizes, making it an ideal solution for research labs and manufacturing quality assurance.

Versatile Applications and Reliable Construction

With a 19 mm paper roll width, a robust anodized aluminum and stainless steel finish, and stable benchtop design, this tester is both versatile and durable. Capable of handling samples up to 100 mm x 50 mm and supporting test speeds up to 60 cycles per minute, it's perfect for evaluating surface wear on plastics, coatings, and other materials.

User-Friendly Operation & Support

The semi-automatic DH-RCA Abrasion Tester features intuitive push-button controls and a clear digital display for simplified use. It comes with onsite installation and training support, ensuring your team can easily operate and maintain the equipment. CE certification guarantees safety and reliability, with quiet 60 dB operation for lab environments.

FAQ's of DH-RCA Abrasion Tester for Surface Wear Testing:

Q: How does the DH-RCA Abrasion Tester perform surface wear testing?

A: The DH-RCA Abrasion Tester uses a standard RCA paper roll driven by an electric motor to repeatedly abrade the test surface under a set pressure (175g by default, with other weights available). The fixture accommodates specimen thicknesses up to 30 mm, and the programmable digital counter tracks cycles with 1 cycle accuracy.

Q: What materials can be tested with this abrasion tester?

A: This tester is suitable for evaluating surface abrasion resistance on various materials, including plastics, coatings, metals, and more. The adjustable fixture and test area accommodate specimens up to 100 mm by 50 mm, making it versatile for different laboratory applications.

Q: When should I use different abrasion pressures or weights?

A: Use the standard 175g weight for general testing. Optional weights of 55g and 275g are available to replicate lighter or heavier wear conditions, enabling users to adapt the test to specific industry standards or materials.

Q: Where is the DH-RCA Abrasion Tester typically used?

A: This instrument is designed for benchtop or tabletop use in laboratory environments. It is widely used by quality assurance departments, research labs, manufacturers, and suppliers in industries where abrasion resistance is a critical quality parameter.

Q: What is the process for setting up and running a test?

A: To run a test, mount the prepared specimen on the adjustable fixture, set the desired abrasion pressure, load the standard RCA paper roll, and program the test cycles via the digital LED counter. The electric motor will drive the abrasion automatically, with results displayed immediately on completion.

Q: How does using this tester benefit my quality control procedures?

A: The DH-RCA Abrasion Tester offers precise, repeatable results with immediate feedback, helping identify surface durability and improve product reliability. Its programmable settings and adjustable features offer testing flexibility, supporting compliance with industry standards.

Q: Is onsite installation and training available for this equipment?

A: Yes, onsite installation and training are available to ensure proper setup and familiarization with the operation and maintenance of the tester. This service helps streamline implementation and ensures users achieve accurate and reliable testing outcomes.
