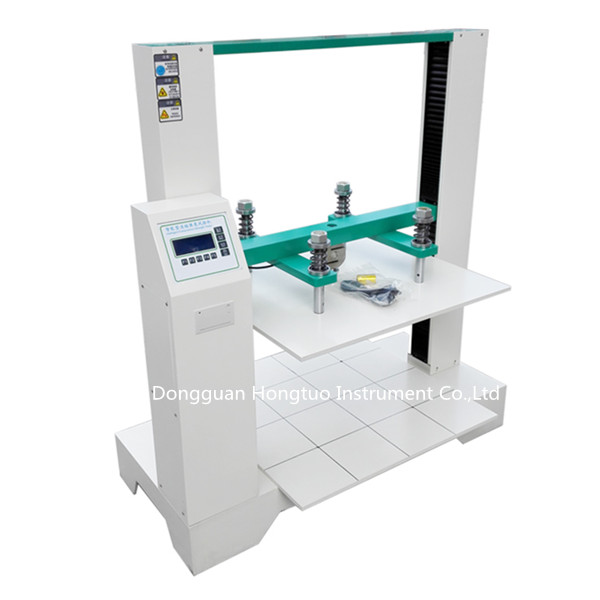

DH-CC-01 Intelligent Carton Box Compression Strength Test Machine

DH-CC-01 Intelligent Carton Box Compression Strength Test Machine

Name: DH-CC-01 Intelligent Carton Box Compression Strength Test Machine
Brand: Guangdong Hongtuo Instrument Technology Co.,Ltd .
Price: 1974.0 USD
Availability: InStock

1974.0 USD ($)/Set

Get a Price/Quote

Product Details:

Interface Type RS232/USB (optional)
Power Supply AC 220V 10%, 50/60Hz
Automation Grade Automatic
Number of Specimens Single specimen testing
Display Type Digital LCD/Touch panel
Frequency 50/60 Hz Hertz (HZ)
Humidity 85% RH (no condensation)
Click to view more
Share Your Product:

Request To Call Back Send Inquiry

DH-CC-01 Intelligent Carton Box Compression Strength Test Machine Price And Quantity

Price 1974.0 USD ($)/Set
Minimum Order Quantity 1 Set

DH-CC-01 Intelligent Carton Box Compression Strength Test Machine Product Specifications

Display Type Digital LCD/Touch panel
Test Width 1000 mm Millimeter (mm)
Frequency 50/60 Hz Hertz (HZ)
Humidity 85% RH (no condensation)
Accuracy 1% of reading %
Temperature 10C ~ 35C Celsius (oC)
Application Carton, packaging box compression strength testing
Interface Type RS232/USB (optional)
Power Supply AC 220V 10%, 50/60Hz
Control Mode Microcomputer control / Touch Screen
Number of Specimens Single specimen testing
Automation Grade Automatic
Test Speed 10-300 mm/min adjustable
Measuring Range Full scale automatic conversion Celsius (oC)
Test Range 0-50 kN (0-5000 kgf)
Test Stroke Up to 1000 mm
Usage Industrial, laboratory testing
Response Time Real-time data output Seconds
Capacity 500kg Kg
Machine Weight Approx. 450 kg Kilograms (kg)
Specimen Size Maximum 1000x1000x1000 mm (customizable) Millimeter (mm)
Operating Voltage 220V AC Volt (V)
Mounting Type Floor standing
Port Size Standard electrical interface
Equipment Type Compression Strength Test Machine
Max Height 1000 mm
Resolution 0.01 N
Features Automatic peak hold, overload protection, programmable test modes

Calibration Method Automatic electronic calibration
Language Support English/Chinese (customizable)
Data Storage Large internal memory for test records
Safety Protection Emergency stop switch, overload protection
Test Platform Material High-strength steel with powder coating
Operation Mode Manual/Automatic selectable
Noise Level < 65 dB
Drive System Ball screw, servo motor drive
Compliance Standard Conforms to ISO, ASTM carton compression test standards
Software Support PC software for data analysis and report generation

Product Description

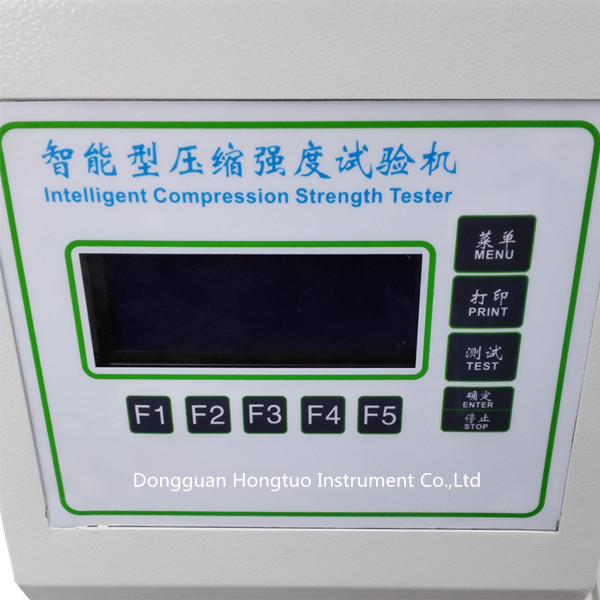

1.LCD large blue backlit liquid crystal display

2. Can display test value and maximum value, with printing function;

3. Constant force and timing test, after the test is completed, automatically reset;

4. Overload shutdown, emergency stop button, automatic shutdown when the specimen is damaged, automatic shutdown when the upper and lower limits are set; overload protection, limit element protection device.

5. Control mode: dual-position (computer host and microcomputer LCD monitor can be tested separately)

6. Display mode: electronic LCD display and Computer display

Product introduction: It is the basic instrument for testing the compressive strength of corrugated boxes (ie packaging testing equipment), and is suitable for compressive strength test, compliance test and stacking strength test of various corrugated boxes.

Features:

1. After the test is completed, there is an automatic return function, which can automatically judge the crushing force and automatically save the test data

2. Three configurable speeds, full Chinese LCD display operation interface, and various units to choose from.

3. The relevant data can be input and the compressive strength is automatically converted, and the packaging stacking test function is provided; the strength and time can be set directly, and the machine will automatically stop after the test is completed.

4. Three working modes:

Strength test: can measure the maximum pressure resistance of the cabinet;

Fixed value test: the overall performance of the cabinet can be detected according to the set pressure;

Stacking test: According to the requirements of national standards, stacking tests of 12 hours, 24 hours and other conditions can be carried out.

Detailed equipment parameters:

Capacity	500kg
Accuracy level	1 class
Control method	Microcomputer control (computer operating system is optional)
Display method	Electronic LCD display (or computer display)
Unit conversion	kgfgf NkNlbf
Stress unit conversion	MPakPakgf/cm2lbf/in2
Displacement unit	mm cm in
Force resolution	1/100000
Display resolution	0.001N
Machine stroke	600 mm
Platen size	600*600 mm
Test speed	5mm100mm/min can input speed arbitrarily
Software function	English language
Stop mode	Overload shutdown, emergency stop button,specimen damage automatic shutdown, upper and lower limits automatic shutdown
safety devices	Overload protection, limit element protection device
Machine power	AC inverter motor drive controller
Mechanical system	High precision ball screw
Power supply	AC220V/50HZ60HZ 4A
Machine weight	Around 350KG
features	Percent break value can be set, automatic stop, can enter the menu to choose 4 different speeds, 20 results, you can view the average value of all test results and single results

Meet the following criteria:

GB/T 4857.4 "Pressure test method for packaging and transportation package"

GB/T 4857.3 "Static load stacking test method for packaging and transport packages"

ISO2872 "Packaging - Complete, Fully Loaded Transport Packages - Stress Test"

ISO2874 "Packaging - Complete, Fully Loaded Transport Packages - Stacking Tests with Pressure Testers"

QB/T 1048 "Cardboard and Carton Compression Tester"

Advanced Compression Testing Performance

The DH-CC-01 offers an extensive test range from 0 up to 50 kN and accommodates specimens up to 1000 x 1000 x 1000 mm, suitable for a variety of carton and packaging applications. Its servo motor and ball screw drive ensures repeatable accuracy and stability during rigorous testing, conforming to international standards.

User-friendly Operation and Safety

Equipped with a digital LCD/touch panel interface, the DH-CC-01 is easy to program and operate. Safety features such as the emergency stop switch and overload protection ensure secure use, while auto-calibration and programmable test modes streamline workflow and minimize operator intervention.

Comprehensive Data Handling and Analysis

The system is backed by powerful PC software for detailed data analysis and customizable report creation. Testing records can be safely stored in large internal memory, and connectivity is ensured via RS232 or USB interfaces, making data transfer and management efficient for both research and quality control.

FAQ's of DH-CC-01 Intelligent Carton Box Compression Strength Test Machine:

Q: How is the DH-CC-01 Carton Compression Strength Test Machine calibrated?

A: The calibration process is fully automated and performed electronically, ensuring high precision and requiring minimal manual intervention. This maintains consistency in measurement and compliance with ISO/ASTM standards.

Q: What types of specimens and sizes can be tested with this machine?

A: The DH-CC-01 is designed for single carton or packaging box specimens with maximum dimensions of 1000 x 1000 x 1000 mm. Sizes can be customized to suit specific testing needs.

Q: When should I use manual or automatic operation modes?

A: Manual mode is recommended for specialized or unique tests requiring operator control, while automatic mode streamlines standard tests for efficiency and repeatability, especially when conducting multiple or routine evaluations.

Q: Where can the test results and data be accessed or stored?

A: Test outcomes are displayed in real time on the digital LCD/touch panel and can be stored in the machine's internal memory. Data can also be exported and analyzed using the supported PC software via USB or RS232 interfaces.

Q: What are the key benefits of using the DH-CC-01 for compression testing?

A: This machine delivers accurate, repeatable results, supports comprehensive data analysis with multilingual software, ensures user safety, and complies with industry standards, significantly enhancing testing efficiency and reporting.

Q: How does the automatic peak hold feature improve the testing process?

A: Automatic peak hold captures and retains the highest compression value during tests, ensuring crucial data is accurately recorded for evaluation and reporting without manual observation.

Q: What environments is the DH-CC-01 suitable for?

A: Built for industrial and laboratory applications, the DH-CC-01 performs reliably in environments with humidity up to 85% RH (non-condensing) and temperatures from 10C to 35C.

Tell us about your requirement

Price:

Quantity

Select Unit

50
100
200
250
500
1000+

Additional detail

Mobile number

Other Products in 'Paper Testing Machine' category

Carton Box Paper Testing Equipment / Clamp Force Tester For Transport Price : 971.00 USD ($)/Set Minimum Order Quantity : 1 Temperature : 10C 35C Celsius (oC) Accuracy : 1% FS % Control Mode : Microcomputer / Touch Screen Control Test Speed : 5 500 mm/min (adjustable) Machine Weight : Approx. 500 kg Kilograms (kg) Capacity : Max Load 3000 kg Ltr Test Width : 200 2000 mm Millimeter (mm) Display Type : Digital Display / LCD Touch Screen Application : Carton Box, Corrugated Paper Board Transport Simulation Testing Humidity : 35% 65% RH Automation Grade : Automatic Number of Specimens : 1 Power Supply : AC 220V/50Hz Usage : Packing Clamp Test Machine Test Range : 0 30 kN Response Time : <1s Seconds Specimen Size : Standard: 1200 x 1200 mm Millimeter (mm) Features : Clamping Force Test, Compression Hold, Auto Reset, Safety Interlock Resolution : 0.01 kN Mounting Type : Floor Mounted Equipment Type : Clamp Force Tester Interface Type : RS232 / USB Port Measuring Range : 0 30 kN Kelvin (K) Operating Voltage : 220V / 50Hz Volt (V) Max Height : 2000 mm Hardness : Industrial Grade Frequency : 50 Hz Hertz (HZ) Test Stroke : 0 1200 mm Port Size : Customizable

Send Inquiry

High Frequency Simulated Transportation Vibration Table Machine Price : 1109.00 INR/Set Minimum Order Quantity : 1 Temperature : Room Temperature Celsius (oC) Accuracy : 0.1 mm % Control Mode : Digital microcomputer control Test Speed : 60300 rpm adjustable Machine Weight : Approx. 150 kg Kilograms (kg) Capacity : Max. 200 kg Kg Test Width : 500 mm Millimeter (mm) Display Type : Digital display Application : Simulating vibration conditions during transportation for product packaging tests Humidity : 20%~80% RH Automation Grade : Automatic Number of Specimens : 1 (Or multiple depending on size) Power Supply : AC 220V, 50Hz Usage : Car Simulation Transportation Vibration Table Test Range : 0.1g~2.0g Response Time : Instantaneous (realtime monitoring) Seconds Specimen Size : Depends on platform size Millimeter (mm) Features : High frequency vibration, programmable controls, realtime speed & amplitude adjustment, overload protection Resolution : 0.01 mm Mounting Type : Floormounted Equipment Type : High Frequency Simulated Transportation Vibration Table Machine Interface Type : Touchscreen / PushButton interface Measuring Range : 0.56 mm amplitude (variable) Kelvin (K) Operating Voltage : 220V AC Volt (V) Max Height : Approx. 1500 mm Hardness : Industry standard structural hardness Frequency : 560 Hz adjustable Hertz (HZ) Test Stroke : 25 mm (standard) Port Size : Standard platform: 1000 mm x 1200 mm

Send Inquiry

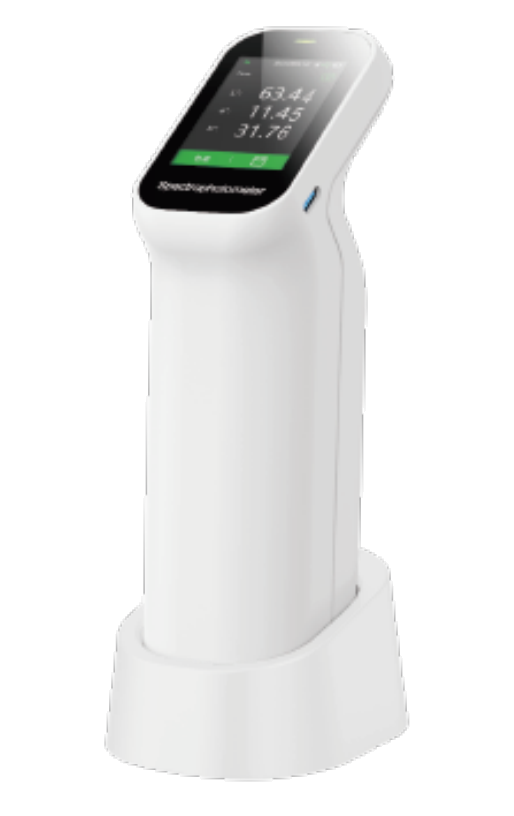

HT-DS410 Color analysis instrument with excellent repetition accuracy Price : 480.00 USD ($)/Unit Minimum Order Quantity : 1 Temperature : Operating Temperature 0C~40C Accuracy : Repeatability E*ab 0.03 Control Mode : Touchscreen Test Speed : 0.5 s per measurement Machine Weight : 480 g Capacity : 3000 measurements per charge Test Width : 8 mm/4 mm (aperture size) Display Type : Capacitive Touchscreen Display Application : Color Evaluation for Textiles, Plastic, Printing, Paint, etc. Humidity : Relative Humidity 085% Automation Grade : Automatic Measurement Number of Specimens : Single Specimen per Measurement Power Supply : Rechargeable Lithium Battery, USB Charging Usage : Laboratory/Industrial/Field Test Range : 0~100 units (depends on parameter) Response Time : 0.5 seconds Specimen Size : Minimum: 8 mm diameter Features : Portable, Rechargeable, Memory Storage, Data Output Resolution : 0.01 units Mounting Type : Handheld Equipment Type : Color Analysis Instrument Interface Type : USB, Bluetooth Measuring Range : L: 0100, a: 128~128, b: 128~128 Operating Voltage : 5V DC (USB charging) Port Size : Aperture: 8 mm/4 mm

Send Inquiry

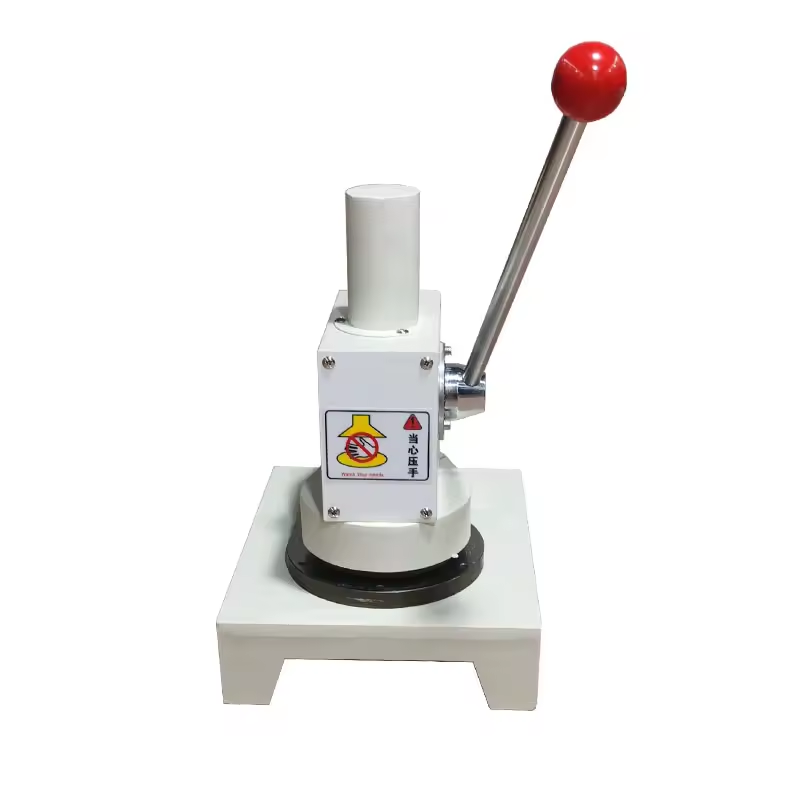

Quantitative Sampler Price : 388.00 USD ($)/Unit Minimum Order Quantity : 1 Temperature : Ambient Fahrenheit (oF) Accuracy : 0.5% of specimen area % Control Mode : Manual Test Speed : Manual Operation Machine Weight : Approx. 812 kg Kilograms (kg) Capacity : Single operation/manual Kg Test Width : 110 mm (typically for standard cutters) Millimeter (mm) Application : Sampling and cutting precise specimens for GSM testing Humidity : Ambient Automation Grade : Manual Number of Specimens : Single specimen Power Supply : Not required (manual device) Usage : Laboratory sampling of textile, paper, nonwovens Test Range : Standard sampling thickness up to 10 mm Response Time : Instantaneous (manual) Seconds Specimen Size : 100 cm2 (typical sampling area for GSM cutter) Centimeter (cm) Features : Rugged construction, corrosionresistant, safe manual operation, accurate cutting Resolution : As per cutter blade precision Mounting Type : Benchtop Equipment Type : Quantitative Sampler Interface Type : Mechanized lever Measuring Range : Up to 100 cm2 specimen area Newton Max Height : Approx 2428 cm Hardness : Industrial hardened body Test Stroke : 40 mm
