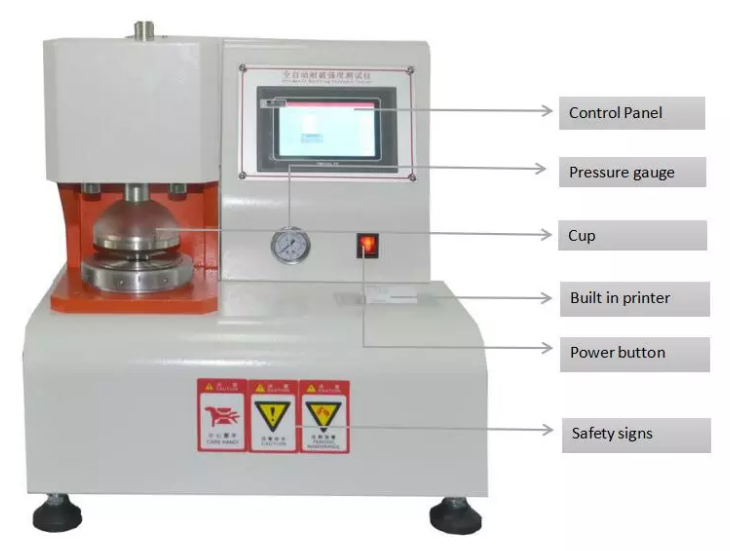

DH-CB-01 Cardboard Bursting Strength Tester

DH-CB-01 Cardboard Bursting Strength Tester

1299.00 USD ($)/Piece

Get a Price/Quote

Product Details:

Response Time <1 second Seconds
Mounting Type Bench-top
Hardness Industrial grade construction
Equipment Type Cardboard Bursting Strength Tester
Number of Specimens Single Specimen per Cycle
Application Testing bursting strength of cardboard, corrugated board, and paper board
Port Size Standard Grip Opening: 30.5 mm (diameter)
Click to view more
Share Your Product:

Request To Call Back Send Inquiry

DH-CB-01 Cardboard Bursting Strength Tester Price And Quantity

Minimum Order Quantity 1 Piece
Price 1299.00 USD ($)/Piece

DH-CB-01 Cardboard Bursting Strength Tester Product Specifications

Power Supply AC 220V, 50Hz
Features Automatic clamping, automatic reset, micro-printer, data storage
Gas Pressure 0.6 MPa (Compressed Air) mpa
Automation Grade Automatic
Capacity 0-35 kg/cm2 Kg
Specimen Size Circular, Diameter 100 mm Millimeter (mm)
Interface Type RS232 Data Interface
Max Height 350 mm
Resolution 0.01 kPa
Accuracy 0.5% F.S. %
Machine Weight Approximately 75 kg Kilograms (kg)
Operating Voltage 220V 10%, 50Hz Volt (V)
Application Testing bursting strength of cardboard, corrugated board, and paper board
Test Stroke 0-15 mm
Port Size Standard Grip Opening: 30.5 mm (diameter)
Test Speed 95 5 ml/min
Number of Specimens Single Specimen per Cycle
Equipment Type Cardboard Bursting Strength Tester
Hardness Industrial grade construction
Response Time <1 second Seconds
Mounting Type Bench-top
Dimension (L*W*H) 445 425 555mm Millimeter (mm)
Test Range 0 - 4000 kPa
Usage research institutes, paper manufacturers, packaging industry and quality inspection departments.
Temperature Room Temperature (15 - 35C) Fahrenheit (oF)
Control Mode Microcomputer Control / Touch Screen
Power AC220 V 10%,50Hz 120w Volt (v)
Measuring Range 0 - 4 MPa Celsius (oC)
Frequency 50/60 Hz Hertz (HZ)
Display Type Digital LCD Touch Screen
Test Width 100 mm Millimeter (mm)
Humidity 20-90% RH

Display Unit kPa, kg/cm2 selectable
Hydraulic Oil Type Glycol-based hydraulic oil
Test Medium Glycerol
Printer Built-in Micro-printer for Test Results
Dimensions 540 mm x 430 mm x 500 mm
Noise Level <65 dB(A)
Construction Material Mild Steel with Powder Coating
Clamping Method Pneumatic Clamping
Press Plate Diameter 95 mm (upper and lower plates)
Overload Protection Yes
Memory Storage Store up to 100 test results
Safety Feature Emergency Stop Button

Product Description

Standards: JIS-L1004, L1018, L1031, K6328, P8131, P8112, ASTM-D2210, TAPPI T403, ISO2759, GB/T 1539, GB/T 454, GB/T 465.1, GB/T 6545 GB/T6545 , ISO 2759 , GB1539 , QB/T1057 of "Bursting Strength measurement for Cardboard.,etc.

Features:

Large color touch screen controller
Equipped with printer. Print the test result immediately.
Clamping ring material is stainless steel. Durable, fine mechanical property,green product and corrosion resistance are much better than other material.
The structure is specially designed and high precision of test results.
The equipment is easy and quick operations

Main technical parameters:

Bursting strength range	2505600kPa
Resolution	1 kPa
Accuracy	0.5%FS
Pressure speed	17010ml/min
Specimen clumping force	more than 690kPa
Clamping ring diameter	31.5mm
Power	AC220 V10%,50Hz 120w
Dimension	445425555mm

Versatile Applications for Packaging and Quality Control

The DH-CB-01 Cardboard Bursting Strength Tester is tailored for professionals in the packaging industry, quality control, research laboratories, and paper manufacturing. Designed to handle a single specimen at a time, it delivers quick and reliable readings, making it indispensable for testing laboratories and quality inspection departments seeking efficient burst strength verification.

Efficient, Accurate, and User-Friendly Operation

With features such as a pneumatic clamping system, microcomputer touch screen, and automatic reset, the DH-CB-01 streamlines the testing process. The built-in micro-printer instantly documents results, while data storage and RS232 interface enhance record-keeping and connectivity. The machine's industrial-grade construction and overload protection offer both durability and operational safety.

FAQ's of DH-CB-01 Cardboard Bursting Strength Tester:

Q: How does the DH-CB-01 Cardboard Bursting Strength Tester function?

A: This tester operates by pneumatically clamping a circular cardboard specimen (100 mm in diameter) between two press plates. Glycerol is used as the test medium, and force is applied until the sample bursts. The maximum pressure at the point of rupture is digitally displayed and can be printed immediately on the built-in micro-printer.

Q: What is the process for conducting a test with this equipment?

A: Simply prepare a circular specimen, place it between the plates, and initiate the test via the touch screen. The automatic clamping and reset functions enhance ease of use, while the system records and displays burst strength values within one second. Up to 100 results can be stored for later review.

Q: When should you use the DH-CB-01 Bursting Strength Tester?

A: Use this instrument whenever it is necessary to determine the bursting strength of cardboard, corrugated board, or paper board. It is ideal during quality control checks, material development, or research projects requiring repeatable and accurate burst strength data.

Q: Where can this tester be installed and used effectively?

A: Best suited for laboratory, production, or quality control environments, the DH-CB-01 is a bench-top model compatible with standard electrical outlets (AC 220V, 50/60 Hz) and compressed air supplies. Its robust and compact design ensures efficient use of workspace.

Q: What are the benefits of using this tester in packaging applications?

A: This tester provides quick, accurate, and repeatable burst strength results, supporting reliable packaging material selection and quality assurance. With digital documentation, memory storage, and built-in safety features, it promotes streamlined workflow and enhanced product integrity for packaging manufacturers and users.

Q: How is safety ensured when using this machine?

A: Safety is prioritized through features like pneumatic clamping (minimizing manual handling), overload protection, and an emergency stop button, all housed within a durable powder-coated mild steel body. These safeguards ensure secure operation for users in busy laboratory environments.

Tell us about your requirement

Price:

Quantity

Select Unit

50
100
200
250
500
1000+

Additional detail

Mobile number

Other Products in 'Paper Testing Machine' category

DH-SV-01 Car Simulation Transportation Vibration Table Price : 1171.00 USD ($)/Set Minimum Order Quantity : 1 Usage : manufacturing, assembly, transportation and use of new products to determine whether the product can withstand environmental vibration Control Mode : Microcomputer control Temperature : 0~40C (operating temperature) Celsius (oC) Display Type : Digital display panel Features : Stepless speed regulation, digital display, easy specimen fixation Automation Grade : Semiautomatic Power Supply : AC 220V/50Hz Capacity : 100kg Kg Accuracy : 3% (Speed accuracy) % Machine Weight : Approx. 180 kg Kilograms (kg) Test Speed : 60~300 rpm/min (stepless speed regulation) Test Range : Package cartons, container transportation tests Test Width : 1000 mm Millimeter (mm) Humidity : 85%RH (operating humidity) Max Height : Table height approx. 650 mm Specimen Size : Maximum 1000 x 1000 mm Millimeter (mm) Resolution : 0.1 rpm/min Operating Voltage : 220V 10% Volt (V) Application : Package transportation vibration simulation, carton vibration testing Number of Specimens : 1 specimen per test Hardness : Reinforced steel and alloy frame Equipment Type : Car Simulation Transportation Vibration Table Mounting Type : Floor mounting Response Time : 1 second Seconds Dimension (L*W*H) : 1200 1000 650 (mm) Millimeter (mm) Frequency : 1600/min (adjustable) Hertz (HZ) Measuring Range : Simulated transportation vibration frequency 1600/min Fahrenheit (oF) Interface Type : Control box with digital interface Port Size : Standard 220V power port Test Stroke : 25.4 mm (1 inch) Gas Pressure : N/A (electric driven) N/mm2

Send Inquiry

ardboard Carton Edge Crush Strength Tester Price : 800 USD ($) Minimum Order Quantity : 1 Usage : Edge Crush Test (ECT), Ring Crush Test (RCT), Flat Crush Test (FCT) Control Mode : Digital Microprocessor Temperature : 10C 40C Display Type : Digital LED Display Features : Automatic force reset, peak value hold, realtime test data display Automation Grade : Semi Automatic Power Supply : AC 220V, 50Hz Capacity : 200 kg Accuracy : 1% of reading Machine Weight : 68 kg Test Speed : 12.5 mm/min Test Range : 03000N(030000N/M) Test Width : 100 mm Humidity : 20% 85% RH Max Height : 320 mm Specimen Size : 100 x 25 mm Resolution : 0.1 N Operating Voltage : 220V AC Application : Measuring edgewise compressive strength of carton board and corrugated cardboard Number of Specimens : 1 at a time Hardness : HRC 5060 (fixtures) Equipment Type : Edge Crush Tester Mounting Type : Floor Standing Response Time : 1 second Dimension (L*W*H) : 360mm 330mm 550mm Millimeter (mm) Frequency : 50 Hz Measuring Range : 0 1000 N Interface Type : RS232 Port Size : Standard 16 mm pneumatic Test Stroke : 70 mm Gas Pressure : 0.6 MPa

Send Inquiry

DH-WA-01 Cobb Paper Water Absorption Performance Tester Price : 539.0 USD ($)/Set Minimum Order Quantity : 1 Usage : Paper absorbency testing Control Mode : Manual Temperature : Applicable (test under standardized temperature conditions) Display Type : Analog scale Features : Sturdy construction, corrosionresistant, easy to operate, complies with TAPPI/ISO standards Automation Grade : Manual Power Supply : Not required (manual) Capacity : up to 200 ml water reservoir Accuracy : 0.5 GSM Machine Weight : 8.5 kg Test Speed : Manual operation Test Range : 0200 GSM Test Width : 100 mm Humidity : Applicable (test under standardized humidity conditions) Max Height : Approx. 220 mm (device height) Specimen Size : 125 mm diameter or as per standard requirements Resolution : 0.1 GSM Operating Voltage : Not applicable (manual device) Application : Determining the water absorption (Cobb value) of paper, paperboard and corrugated fiberboard Number of Specimens : 1 at a time Hardness : Metal body, corrosionresistant Equipment Type : Cobb Paper Water Absorption Performance Tester Mounting Type : Table top Response Time : Within 2 minutes Measuring Range : 0200 GSM Interface Type : Not applicable (manual device) Port Size : Standard Cobb port, 112.8 mm diameter Test Stroke : 210 mm

Send Inquiry

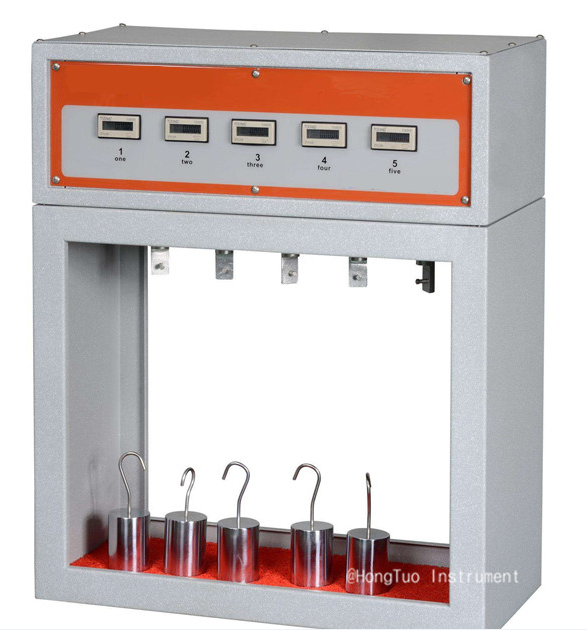

Tape Retentivity Tester Price : 529.0 USD ($)/Set Minimum Order Quantity : 1 Usage : Lab and industrial adhesive tape retention testing Control Mode : Digital Timer Control Temperature : Room Temperature (232C) Display Type : LCD Digital Timer Features : Multistation (5 independent), digital timing, anticorrosion body Automation Grade : Semiautomatic Power Supply : AC 220V 50Hz Capacity : 1000g per weight Accuracy : 1 second (timer) Machine Weight : About 25 kg Test Speed : Not applicable (static loading) Test Range : 0~99999.9 min (Timer) Test Width : Standard 24 mm Humidity : 4070% RH Max Height : Approx 400 mm (internal test space) Specimen Size : 25 mm x 100 mm Resolution : 0.1 min Operating Voltage : 220V Application : For adhesive tape holding power test Number of Specimens : 5 positions Equipment Type : Tape Retentivity Tester Mounting Type : Desktop Response Time : Instantaneous (for timer start/stop) Frequency : 50Hz
