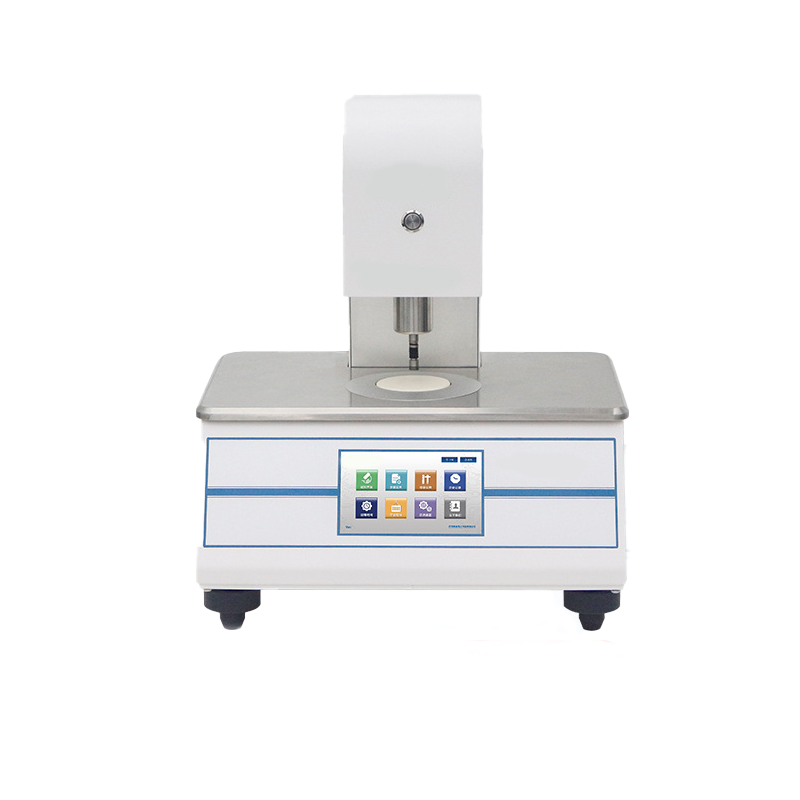

DH-CA Film Thickness Tester

5100.00 USD ($)/Set

Get a Price/Quote

Product Details:

Automation Grade Automatic
Number of Specimens 1
Humidity 20% - 70% RH
Resolution 0.1 m
Interface Type USB
Application Plastic film, sheet, paper, and similar materials
Display Type Color Touch Screen
Click to view more
Share Your Product:

Request To Call Back Send Inquiry

DH-CA Film Thickness Tester Price And Quantity

Minimum Order Quantity 1 Set
Price 5100.00 USD ($)/Set

DH-CA Film Thickness Tester Product Specifications

Max Height 200 mm
Temperature 15C - 35C Celsius (oC)
Hardness Applicable up to 90 Shore A
Port Size Standard 5 mm air inlet
Test Stroke 0 - 10 mm
Mounting Type Benchtop
Equipment Type Film Thickness Tester
Test Speed 10 mm/min
Operating Voltage 220V Volt (V)
Power Supply AC 220V, 50/60Hz
Machine Weight Approx. 18 kg Kilograms (kg)
Measuring Range 0.1 - 6 mm Celsius (oC)
Control Mode Touch Screen / Auto
Test Range 0.1 - 6 mm
Capacity 500N Kg
Specimen Size 100 mm x 100 mm Millimeter (mm)
Accuracy 1 m %
Frequency 50/60 Hz Hertz (HZ)
Automation Grade Automatic
Usage Laboratory, Quality Control
Number of Specimens 1
Humidity 20% - 70% RH
Resolution 0.1 m
Application Plastic film, sheet, paper, and similar materials
Display Type Color Touch Screen
Interface Type USB
Test Width 100 mm Millimeter (mm)
Gas Pressure 0.6 MPa mpa
Features High precision, digital display, user-friendly interface
Response Time 1 s Seconds

Measuring Principle Contact Type with Digital Feedback
Ambient Light Influence Negligible due to design
Memory Storage Up to 500 test results
Calibration Method Automatic and Manual
Operating Noise < 60 dB
Language Options Multi-language support
Safety Features Overload protection, anti-jamming design
Zero Position Adjustment Automatic
Data Output Format CSV, PDF

Product Description

Technical Features

l 5 inch touch screen. Microcomputer control, menu-type interface and PVC operation panel, which is convenient for users operation and data viewing;

l Strictly follow the standard design of contact area and measurement pressure, and support various non-standard customization;

l The measuring head automatically rises and falls during the test, effectively avoiding system errors caused by manual operation;

l Two test modes, automatic and manual, which is convenient for users to choose freely;

l Optional auto sampler supports and the relevant parameters setting such as sampling step, number of measurement points and sampling speed;

l lReal-time display of analysis data such as the maximum, minimum, average, and standard deviation

l Standard gauge blocks for system calibration assured the test accuracy and data consistency;

l The standard USB interface facilitates the external connection and data between the system and the computer.

Application

Basic application

Paper, plastic film, Sheet, diaphragm, cardboard, foil, silicon, metal, textile, solid electrical insulation, non-woven materials etc

Test Principle

The pre-conditioned specimen is placed on a flat test plane, the pressure foot which is paralleled to the test plane will raise and falls on the upper surface of the specimen with certain pressure applied on. The displacement sensor with the pressure foot will detect the space between the upper and lower surface of the specimen, which is the thickness of the specimen.

Test Standard

ISO 4593ISO 534ISO 3034ISO12625-3ISO5084GB/T 6672GB/T 451.3 GB/T 6547ASTM D374ASTM D1777ASTM D3652ASTM D6988ASTM F2251TAPPI T411BS 2782-6DIN53370JIS K6250JIS K6783JIS Z1702 BS 3983BS 4817 FEFCO No 3EN1942

Technical Data Sheet

Model Item	DH-CA Film Thickness Tester
Test range	02 mmStandard 06 mm (optional)
Resolution	0.1 m
Test pressure	17.51 KPaFilmstandard501 KPaPaperoptional
Contact area	50 mmFilmstandard200 mmPaperoptional Note: one choice of film and paper; customization is available.
Feeding distance	01000 mm (optional)
Feeding speed	0.199.9 mm/s(optional)
Power supply	AC 220V 50Hz 80W
Size	461 mm(L) 334 mm(W) 357 mm(H)
Weight	32 kg

Product Configuration

Standard configuration	Instrument, standard gauge block
Optional	Professional Software and Communication Cable, Non standard Measuring Head, Argumentation weights

Please Note: Hongtuo is always dedicated to the innovation and improvement of product performance and function. Therefore, technical specifications are subject to change without further notice. Hongtuo reserves the rights of final interpretation and revision.

Precision Digital Measurement

The Film Thickness Tester utilizes a contact-type digital feedback mechanism, offering high precision with a resolution of 0.1 m and accuracy up to 1 m. Its robust design mitigates ambient light influence, ensuring reliable results in diverse environments. Fast response time, automatic zero adjustment, and multi-language options enhance user convenience for routine thickness testing.

User-Friendly Interface and Data Management

Its color touch screen offers seamless control via automatic or manual calibration. The device supports storage of up to 500 test results and enables data export in universally compatible formats like CSV and PDF through a standard USB interface. This integrated approach simplifies workflow and reporting for laboratory or industrial applications.

Durability and Reliable Performance

With a benchtop mounting type and 18 kg build, the tester is engineered for stability and durability. Safety features such as overload protection and anti-jamming design ensure longevity, while its quiet operation (<60 dB) supports a comfortable workplace. Optimized for specimen sizes of 100 mm x 100 mm, it caters to rigorous quality control needs.

FAQ's of Film Thickness Tester:

Q: How does the Film Thickness Tester ensure accurate and consistent measurement results?

A: The tester employs a contact-type digital measurement principle with both automatic and manual calibration options. Automatic zero position adjustment and robust construction reduce ambient light influence, guaranteeing consistent and precise measurements within a range of 0.1 - 6 mm and 1 m accuracy.

Q: What materials and specimen sizes can be analyzed with this device?

A: The Film Thickness Tester is suitable for plastic films, sheets, paper, and similar materials. It accommodates specimens sized 100 mm x 100 mm, with a maximum hardness of up to 90 Shore A and a measuring range of 0.1 - 6 mm.

Q: When should automatic versus manual calibration be used?

A: Automatic calibration is ideal for routine daily operations, streamlining the setup and increasing efficiency. Manual calibration can be used for custom settings, specific sample requirements, or compliance with unique testing standards.

Q: Where can the test data be exported, and in which formats?

A: Test results can be stored onboard (up to 500 entries) and exported via a standard USB interface in CSV or PDF formats, facilitating efficient data transfer to computers or laboratory management systems.

Q: What is the process for operating the Film Thickness Tester?

A: Operation involves placing the sample (100 mm x 100 mm) on the tester, selecting the test parameters on the touch screen, initiating the automatic or manual zero adjustment, and starting the test. The process completes within seconds, with results instantly displayed and saved.

Q: How does the tester benefit laboratory and quality control processes?

A: It delivers rapid, precise thickness measurements with digital feedback, reducing errors and increasing throughput. Automated features, comprehensive memory, and export options enable efficient quality control and traceability for manufacturing or research settings.

Q: What safety features are included in this tester?

A: Safety is enhanced by overload protection and an anti-jamming design, preventing equipment and sample damage. Low noise operation further improves laboratory environments.
