DH-BMC-1 Touch Screen Falling Dart Impact Tester for Plastic Film Testing

1832.00 USD ($)/Unit

Get a Price/Quote

Product Details:

Test Range 5 g to 2000 g
Frequency 50/60 Hz Hertz (HZ)
Hardness Not Applicable - Impact Testing Equipment
Accuracy 1 g %
Application Plastic Film Impact Resistance Test
Response Time Instantaneous / <1 sec Seconds
Operating Voltage 220V AC 10% Volt (V)
Click to view more
Share Your Product:

Request To Call Back Send Inquiry

DH-BMC-1 Touch Screen Falling Dart Impact Tester for Plastic Film Testing Price And Quantity

Price 1832.00 USD ($)/Unit
Minimum Order Quantity 1 Unit

DH-BMC-1 Touch Screen Falling Dart Impact Tester for Plastic Film Testing Product Specifications

Power Supply AC 220V, 50/60Hz
Display Type Color Touch Screen
Features Touch Screen, Real-Time Data, Customizable Drop Height, Automatic Statistical Analysis
Measuring Range 50 g - 2000 g Kelvin (K)
Port Size Diameter of Clamp: 125 mm
Mounting Type Floor Standing
Test Speed Standard Free Fall (Gravity Driven)
Test Width Not Applicable (Point Impact) Millimeter (mm)
Interface Type USB/Ethernet (Optional)
Automation Grade Semi-automatic
Temperature 10C~40C Celsius (oC)
Humidity 85% RH
Machine Weight Approx. 65 kg Kilograms (kg)
Capacity Multiple Dart Weights (to 2000g max) Ltr
Specimen Size 150 mm x 150 mm (customizable) Millimeter (mm)
Equipment Type Falling Dart Impact Tester
Frequency 50/60 Hz Hertz (HZ)
Test Range 5 g to 2000 g
Hardness Not Applicable - Impact Testing Equipment
Accuracy 1 g %
Test Stroke Up to 1500 mm (adjustable)
Usage Plastic, Film, Sheet Testing
Control Mode Touch Screen Digital Control
Application Plastic Film Impact Resistance Test
Response Time Instantaneous / <1 sec Seconds
Operating Voltage 220V AC 10% Volt (V)
Number of Specimens 1 specimen per test
Max Height 1500 mm (Adjustable Drop Height)
Resolution 1 g

Drop Method Electromagnetic Release
Safety Features Anti-slide Platform, Emergency Stop
Ambient Condition Sensor Integrated (Temperature & Humidity)
Export Capability Data Export to USB/Computer
Data Storage Up to 500 Test Results
Dart Types Type A & Type B (Compliant with ASTM D1709)
Test Method Compliance ASTM D1709, ISO 7765-1
Footprint Approx. 600 mm x 480 mm
Dart Head Material Hardened Steel
Dart Head Diameter Type A: 38 mm / Type B: 50 mm

DH-BMC-1 Touch Screen Falling Dart Impact Tester for Plastic Film Testing Trade Information

Supply Ability 300 Unit Per Month
Delivery Time 3 Days

Product Description

Features:

1. The electromagnetic suction and hanging of the header can be released automatically, effectively avoiding human errors

2.The sample is pneumatically tightened and released, reducing experimental errors and test time

3.Test method A, B dual mode design

4.Unique lighting observation lamp, convenient and fast test

Principle:

At the beginning of the test, first select the test method, estimate an initial mass and m value, and conduct the test. If the first sample is broken, use the weight m to reduce the mass of the falling body; if the first sample is not broken, the weight m must be used to increase the mass of the falling body and conduct the test accordingly. In short, using weights to reduce or increase the mass of the falling body depends on whether the previous sample is broken. After testing 20 samples, calculate the total number of broken samples N. If N is equal to 10, the test is completed; if N is less than 10, after supplementing the sample, continue the test until N is equal to 10; if N is greater than 10, after supplementing the sample, continue the test until the total number of unbroken samples is equal to 10, and finally the system automatically calculates the impact result.

Application:

Film, sheet	It is suitable for testing the impact resistance of plastic films, sheets and composite films with a thickness of less than 1mm, such as PE cling film, wrapping film, PET sheet, food packaging bags of various structures, heavy packaging bags, etc.
Aluminum foil, aluminum-plastic composite film	Applicable to the impact resistance test of aluminum foil and aluminum-plastic composite film
Paper and cardboard testing	Applicable to the impact resistance test of paper and cardboard

Technical Parameters:

Measuring method	A method/ B method
Measuring range	A method:502000g B method:3002000g (Addition 25g and 40g)
Impact height	A method: 660mm1mm B method: 1500mm1mm
Dart head diameter	A method38mm B method50mm
Test accuracy	0.1g0.1J
Sample size	150mm150mm
Sample clamping	pneumatic
Air source pressure	0.6MPaGas source User-provided
Air source interface	8mm Polyurethane tube
Power supply	AC 220V 50Hz
Net weight	70kg
Exterior dimension	A method500 mm (L) 450 mm (W) 1320 mm (H) B method500 mm (L) 450 mm (W) 2160 mm (H)

Compliant standards:

ISO 7765-1-1988, GB/T 9639.1-2008, ASTM D1709, JIS K7124-1

Configuration:

Standard configuration: A method configuration, micro printer

Optional parts: B method configuration

Note: The air source interface of this machine is 8mm polyurethane tube; the air source is provided by the user

Versatile Dart Impact Testing

This tester accommodates both Type A and Type B dart heads, facilitating comprehensive impact resistance tests for a range of plastic film types. With a customizable drop height and a clamp diameter of 125 mm, you can tailor test conditions for various specimen requirements, ensuring accurate and reliable data across multiple film grades.

Advanced Digital Control & Data Management

The touch screen control panel makes operation intuitive, while real-time data capture and storage of up to 500 test results streamline workflow. Data export to USB or computer via Ethernet enhances traceability and collaboration. This ensures your testing process is both efficient and fully documented.

Enhanced Safety and Usability

Equipped with an anti-slide platform and emergency stop, safety is a key priority. The integrated ambient condition sensor automatically measures temperature and humidity, providing full context for every result. The device's semi-automatic operation simplifies usage, making it accessible for both experienced technicians and new operators.

FAQ's of Touch Screen Falling Dart Impact Tester for Plastic Film Testing:

Q: How do I operate the Touch Screen Falling Dart Impact Tester safely?

A: Begin by placing your film specimen on the anti-slide platform and securing it with the clamp. Select the dart type and weight, set the desired drop height via the touch screen, and initiate the test. Safety is enhanced through the emergency stop feature, allowing you to halt proceedings instantly if required.

Q: What types of tests can be performed and which standards does this machine comply with?

A: This equipment performs point impact resistance testing on plastic films using the falling dart method. It fully complies with ASTM D1709 and ISO 7765-1, using both Type A (38 mm) and Type B (50 mm) hardened steel darts, ensuring your results are universally recognized and comparable.

Q: When should I export or analyze the stored test data?

A: You can store up to 500 test results on the device. Exporting or analyzing data is advisable after a significant series of tests, or whenever a batch analysis is needed. Data transfer is straightforward with USB or Ethernet connectivity, supporting efficient record-keeping and quality analysis.

Q: Where can this testing device be used most effectively?

A: It is optimized for use in laboratories, manufacturing quality control departments, research settings, and any facility needing precise evaluations of plastic film impact resistance. Its floor-standing design and adjustable test parameters offer versatility for diverse industrial environments.

Q: What are the main benefits of using the touch screen interface?

A: The color touch screen streamlines the testing process, allowing for quick parameter settings, instant result viewing, and automatic statistical analysis. This digital control reduces operator error and enhances productivity, making quality assessment faster and more reliable.

Q: How does the ambient condition sensor enhance test accuracy?

A: By automatically recording temperature and humidity during each test, the integrated ambient sensor ensures that environmental factors are considered in data interpretation. This leads to more consistent and reproducible results, vital for quality assurance.

Tell us about your requirement

Price:

Quantity

Select Unit

50
100
200
250
500
1000+

Additional detail

Mobile number

Other Products in 'Plastic and Rubber Testing Equipment' category

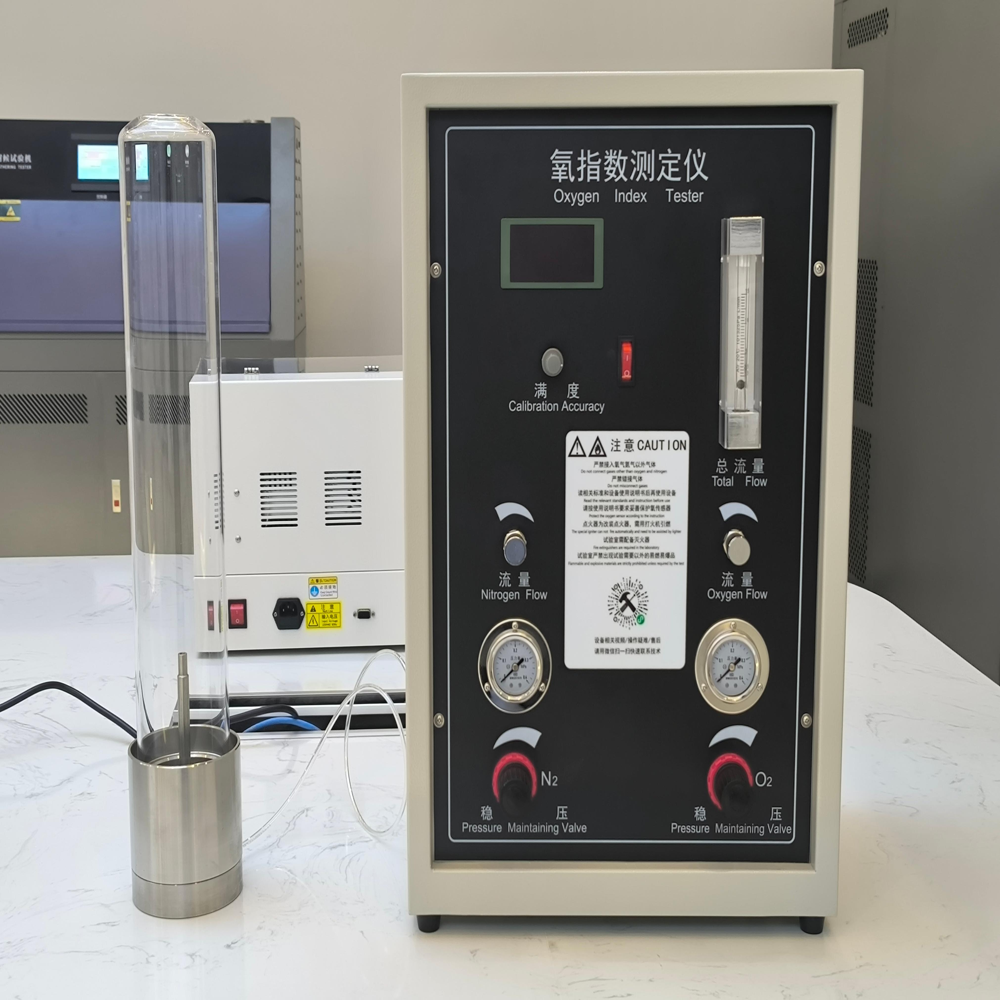

Automatic Oxygen Index Tester for Flammability Testing DH-OI-01 Price : 2357.00 INR/Unit Minimum Order Quantity : 1 Usage : Lab Testing of Material Flammability Automation Grade : Fully Automatic Power Supply : AC 220V 10%, 50Hz Features : Automatic Gas Control, Digital Display, Pressure Regulators Resolution : 0.1% Max Height : 400 mm (Combustion Cylinder) Number of Specimens : 1 at a time Control Mode : Automatic (Touch Screen Control) Accuracy : 0.2% (Oxygen Concentration) % Test Range : Oxygen Index 0~100% Response Time : 3 seconds Seconds Application : Flammability Testing of Plastics & Polymers Temperature : Room Temperature (10C~35C) Celsius (oC) Interface Type : Touch Screen Interface Equipment Type : Automatic Oxygen Index Tester Specimen Size : Length 70~150 mm, Width 6.5~10 mm, Thickness 4.5 mm Millimeter (mm) Machine Weight : Approx. 25 kg Kilograms (kg) Humidity : 75% RH Display Type : Touch Screen Display Test Speed : Adjustable, 10~100 mm/min Mounting Type : Benchtop Measuring Range : O2 Index 0~100% Kelvin (K)
