DH-300B-3 Thermal Deformation, Vicat Softening Point Temperature Tester

3014.00 USD ($)/Set

Get a Price/Quote

Product Details:

Resolution 0.01C
Number of Specimens 3
Port Size Standard specimen rod size: 1 mm or 10 mm
Temperature Room temperature to 300C Celsius (oC)
Accuracy 0.5C %
Application For measuring plastic, rubber, and other nonmetallic materials thermal deformation temperature and Vicat softening point temperature
Response Time Instant digital reading Seconds
Click to view more
Share Your Product:

Request To Call Back Send Inquiry

DH-300B-3 Thermal Deformation, Vicat Softening Point Temperature Tester Price And Quantity

Minimum Order Quantity 1 Set
Price 3014.00 USD ($)/Set

DH-300B-3 Thermal Deformation, Vicat Softening Point Temperature Tester Product Specifications

Resolution 0.01C
Number of Specimens 3
Port Size Standard specimen rod size: 1 mm or 10 mm
Accuracy 0.5C %
Temperature Room temperature to 300C Celsius (oC)
Application For measuring plastic, rubber, and other nonmetallic materials thermal deformation temperature and Vicat softening point temperature
Test Speed 501 mm/h, 1202 mm/h, 102 mm/min
Capacity 3 test stations Ltr
Test Width 3 stations Millimeter (mm)
Gas Pressure 0.6 MPa (if equipped with cooling system) mpa
Machine Weight About 80 kg Kilograms (kg)
Usage Material Testing Lab, Research Institutes, Quality Control
Response Time Instant digital reading Seconds
Humidity 80% RH
Interface Type RS232 serial port
Measuring Range 50C to 300C Celsius (oC)
Control Mode Microcomputer automatic control
Frequency 50 Hz Hertz (HZ)
Max Height 400 mm (including digital gauge)
Test Stroke 0-10 mm
Operating Voltage 220V 50Hz Volt (V)
Mounting Type Floor standing
Test Range Temperature 50C-300C
Automation Grade Automatic
Specimen Size Vicat: 1010(3~6) mm, Deformation: 12513(3~6) mm Millimeter (mm)
Equipment Type Thermal Deformation and Vicat Softening Point Tester
Power Supply AC 220V, 50Hz
Display Type Digital Display (LCD/LED digital) (each station separated)
Features Multiple stations, high-precision, real-time data display, easy operation, programmable temperature ramp

Bath Medium Glycerol, silicone oil or transformer oil
Language Support Supports multiple languages (English default)
Temperature Sensor PT100 platinum resistance
Ambient Temperature 15C-35C
Heating Rate Control 120C/h or 50C/h constant temperature rise, adjustable by program
Compliance Conforms to ISO 75, ISO 306, GB/T 1633, GB/T 1634
Fixture Load Weight Vicat 10N/50N/200N selectable, Deformation 0.45MPa, 1.8MPa
Data Output Results printable; supports USB export
Material Corrosion-resistant coated frame, stainless steel specimen fixtures
Cooling Mode Natural or water-cooled (optional)

DH-300B-3 Thermal Deformation, Vicat Softening Point Temperature Tester Trade Information

Supply Ability 300 Set Per Month
Delivery Time 3 Days

Product Description

DH-300B-3

Thermal Deformation, Vicat Softening Point Temperature Tester

Application:

This machine is a non-metallic material testing instrument designed and manufactured according to the latest international standards and national standards. It is mainly used for non-metal such as plastic, hard rubber, nylon, electrical insulating materials, long fiber reinforced composite materials, high strength thermosetting laminates. Determination of the heat distortion temperature of the material and the Vicat softening point temperature. It is easy to operate and precise in control. It is a highly intelligent test instrument widely used in colleges and universities, research institutes and product quality supervision and inspection units. It adopts single-chip control, PID phase-modulated output, with upper limit temperature setting, and automatically stops heating when the test temperature reaches the upper limit temperature.

Standards:

GB/T1633 "Determination of vicat softening temperature (VST) of thermoplastics"

GB/T1634 "Determination of plastic load deflection temperature part 1: general test method"

GB/T8802 "Determination of softening temperature of plastic pipe fittings"

Equals to ISO2507-1:2017

IS075-2013 "Determination of plastic load deformation temperature"

ASTM D 648 "Plastic heat deflection temperature test method"

ASTM D 1525 "Plastic vicat softening temperature test method"

Advantages:

1.Intelligent PID adjustment, accurate heating rate, precise temperature control

2.Can do thermal deformation test of various standard specimen

3.Can do Vicat softening point test of various standard specimen

4.The required load can be automatically calculated according to the test standard and sample size

5.Two heating rates can be selected, free switching, simple operation

6.When the test is completed or the temperature exceeds the upper limit, the temperature control will be turned off and shut down automatically

7.With software over-temperature protection and leakage protection

8.Has air-cooled and water-cooled dual rapid cooling

Specification:

1). Temperature control range: ambient temperature300

2). Heating rate: (12010)/h (121)/6min

(505)/h (50.5)/6min

3). Temperature indication error: 0.1

4). Temperature control accuracy: 0.5

5). Maximum deformation indication error: 0.001mm

6). Deformation measurement range: 0-10mm

7). Number of sample racks: 3

8). The weight of the load bar and the tray: 68g

9). Test span range: 64 or 100mm according to the standard

10). Fuel tank volume: about 13L

11). Heating medium: methyl silicone oil

12). Cooling method: built-in active air cooling or external water cooling

13). Heating power: 1.5kw

14). Appearance size: length 60cm*width 50cm*height 132cm

Configuration

1) 1x host

2) 3 x sample holders

3). 3 x heat deformation indenters

4). 3 x Vicat needles

5). 3 x sets of weights (including boxed weights) (attached table)

6). 1x power socket

Superior Accuracy and Flexibility

With a wide temperature range from 50C to 300C, the DH-300B-3 tester delivers exceptional precision (0.5C accuracy, 0.01C resolution). Users can program heating rates and select cooling modes, enabling tailored thermal testing that meets global standards (ISO 75, ISO 306, GB/T 1633, GB/T 1634). The adjustable fixture loads and deformation pressures offer flexibility for various material types and test conditions.

User-Friendly and Automated Operation

Equipped with an easy-to-read digital display for each station, the tester operates via a microcomputer for automatic control, reducing the need for manual intervention. Instant digital readings ensure real-time monitoring, while automated data output features-including USB export and printouts-streamline record-keeping and analysis. Multi-language support (default English) enhances usability for international teams.

Rugged Build for Long-Term Use

Constructed with a corrosion-resistant coated frame and stainless steel specimen fixtures, the DH-300B-3 is built for durability in demanding lab environments. Its robust design and high-quality components sustain accuracy and reliability, making it a valuable asset for research institutes, quality control labs, and manufacturers.

FAQ's of DH-300B-3 Thermal Deformation, Vicat Softening Point Temperature Tester:

Q: How does the DH-300B-3 ensure precise temperature control during tests?

A: The instrument utilizes a PT100 platinum resistance temperature sensor and allows programmable heating rates (120C/h or 50C/h), ensuring accurate and stable temperature ramp for reliable measurement results. The system supports both natural and water-cooling options for controlled test environments.

Q: What types of materials can be tested with this device?

A: The DH-300B-3 is designed for thermal deformation and Vicat softening point testing of plastics, rubbers, and other nonmetallic materials, commonly used in material testing labs, research institutes, and quality control applications.

Q: When should I choose water cooling over natural cooling?

A: Water cooling offers faster temperature reduction, ideal for high-throughput environments or when rapid transition between tests is required. Natural cooling may be sufficient for occasional or low-intensity usage.

Q: Where can the DH-300B-3 be installed and operated?

A: This floor-standing tester is suitable for laboratories, quality control departments, and research facilities with access to AC 220V, 50Hz power supply and ambient conditions between 15C and 35C with humidity up to 80% RH.

Q: What is the process for running a standard Vicat softening point test?

A: First, specimens are prepared to specified sizes, mounted on stainless steel fixtures, and the desired load and heating rate are set via the microcomputer. The system then automatically ramps temperature, records deformation, and outputs data digitally with options for print or USB export.

Q: How does the user benefit from the multi-language support and digital display?

A: Multi-language functionality ensures accessibility for international users, reducing training time. The separate digital display for each station provides clear, real-time data, enhancing operational oversight and minimizing errors.

Q: What standards does this equipment comply with and why is that important?

A: The DH-300B-3 meets ISO 75, ISO 306, GB/T 1633, and GB/T 1634 requirements, ensuring its test results are globally recognized and comparable for regulatory and quality assurance purposes.

Tell us about your requirement

Price:

Quantity

Select Unit

50
100
200
250
500
1000+

Additional detail

Mobile number

Other Products in 'Plastic and Rubber Testing Equipment' category

Small Plastic Injection Molding Machine for Precision Plastic HT-20Z Price : 930.00 USD ($)/set Minimum Order Quantity : 1 Usage : Small Batch Production, R&D, Educational Purposes Automation Grade : Manual Power Supply : 220V AC, 50/60Hz Machine Weight : Approx. 25 kg Kilograms (kg) Hardness : Machined Steel Platens, Hard Chrome Finish Features : Compact, Tabletop, Easy Mold Change, Adjustable Heating Application : Precision Molding of Small Plastic Parts, Prototypes, Laboratory Testing Test Speed : Adjustable (depends on mold and resin) Response Time : <1s Seconds Humidity : 85% RH Resolution : 0.001 MPa (Pressure Gauge) Number of Specimens : Single mold cavity Accuracy : 0.01 MPa (Pressure Gauge) % Temperature : 1040C (Ambient) Celsius (oC) Test Range : 530 g shot weight Specimen Size : Customizable, Standard: 15x15x2 mm Millimeter (mm) Equipment Type : Manual Small Plastic Injection Molding Machine Display Type : Digital and Analog Pressure Display Measuring Range : Digital Pressure Gauge: 01 MPa Kelvin (K) Control Mode : Digital/Manual with Pressure Regulator Operating Voltage : 220V AC Volt (V) Mounting Type : Tabletop/Bench Mounted Capacity : 610 Ton Clamping Force Ltr Test Width : 60 mm (Platen Width) Millimeter (mm) Interface Type : Push Button, Digital Display Frequency : 50/60 Hz Hertz (HZ) Max Height : 350 mm (Total Height of Machine) Test Stroke : Max. 60 mm

Send Inquiry

Professional Izod Pendulum Impact Test Machine HT-5-50D-CM Price : 1857.00 USD ($)/Set Minimum Order Quantity : 1 Usage : Laboratory and industrial impact testing Automation Grade : Manual Power Supply : 230V AC, 50Hz Machine Weight : Approx. 10kg Kilograms (kg) Hardness : Machine body Hardened steel Features : Rugged construction, ergonomic handle, highprecision digital indication, replaceable striking edge Application : Measuring impact resistance/strength of materials such as plastics, metals, and composite specimens Test Speed : 3.5 m/s Response Time : Immediate (realtime digital readout) Seconds Humidity : Up to 85% RH noncondensing Resolution : 0.01 Joule Number of Specimens : 1 per test Accuracy : 0.1 Joule % Temperature : 10 C to 35 C Operating Range Celsius (oC) Test Range : 0~25 J (Joules) Specimen Size : 75 mm 10 mm 10 mm Millimeter (mm) Equipment Type : Pendulum Impact Test Machine Display Type : Digital Display Measuring Range : 0 25 Joules Kelvin (K) Control Mode : Manual Release, Digital Reading Operating Voltage : 110 220V Volt (V) Mounting Type : Table Top Capacity : Up to 25 Joules Tons/year Test Width : 10 mm nominal Millimeter (mm) Interface Type : Direct/Digital Frequency : 50/60Hz Hertz (HZ) Max Height : Approx. 550 mm Test Stroke : Standard IZOD stroke (maximum angle to base)

Send Inquiry

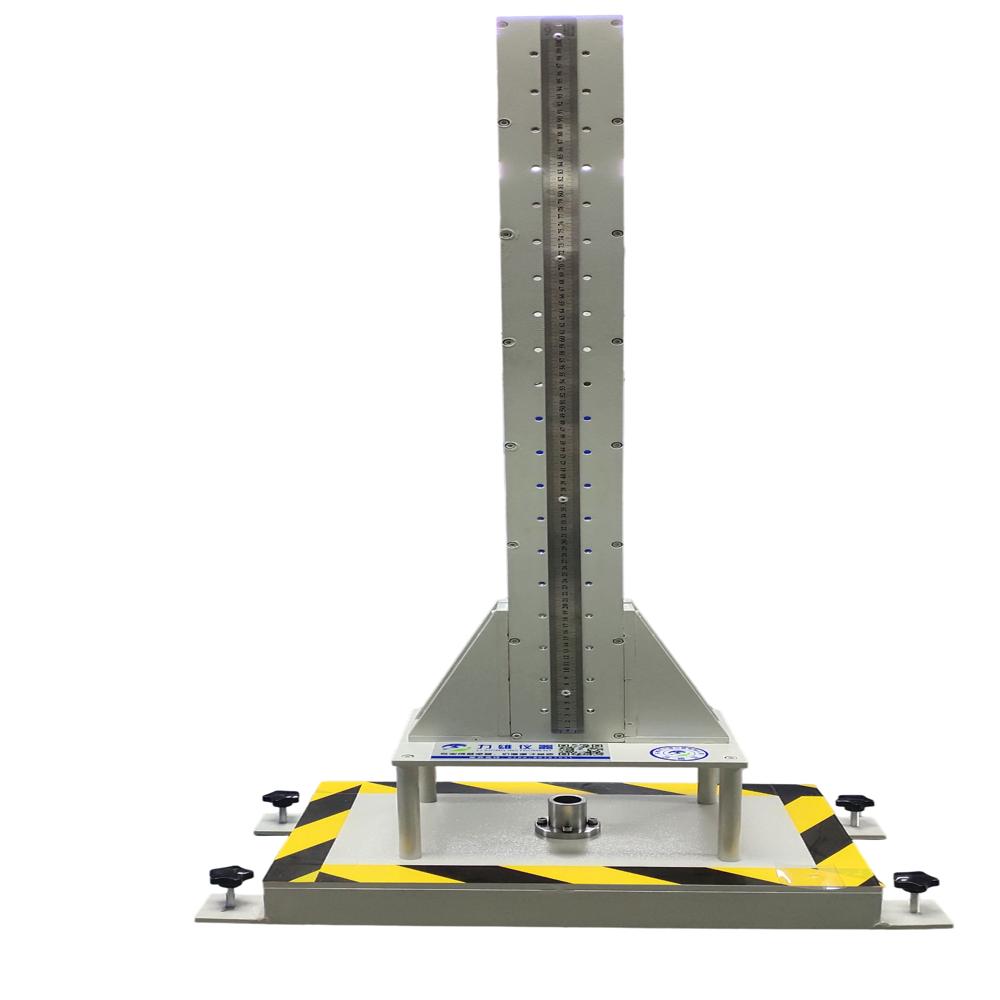

DuPont Impact Tester HT-794 Price : 1274.0 USD ($)/Set Minimum Order Quantity : 1 Usage : Impact Resistance Testing of Thin Materials Automation Grade : Manual Power Supply : Not Required (Manual Operation) Machine Weight : Approx. 30 kg Hardness : Applicable for Flexible Materials Features : Stable Base, Adjustable Impact Height, Safety Clamp, Steel Ruler Height Marking Application : Film, Coating, Sheet Material Impact Resistance Testing Test Speed : Standard Free Fall (Gravity driven) Response Time : Instantaneous on Release Humidity : 20% 80% RH (Operational) Resolution : 1 mm Height Scale Number of Specimens : 1 per test Accuracy : 1 mm (Drop Height) Temperature : 10C 40C (Operational) Test Range : 1J to 50J (Impact Energy) Specimen Size : Up to 150 mm x 150 mm Equipment Type : DuPont Impact Tester Display Type : Manual Scale (Ruler Type) Measuring Range : Up to 1000 mm Drop Height Control Mode : Manual Release Mechanism Operating Voltage : Not Required (Manual) Mounting Type : Floor/Bench Top Capacity : Max 2 kg Falling Weight Max Height : 1000 mm Test Stroke : Up to 1000 mm
