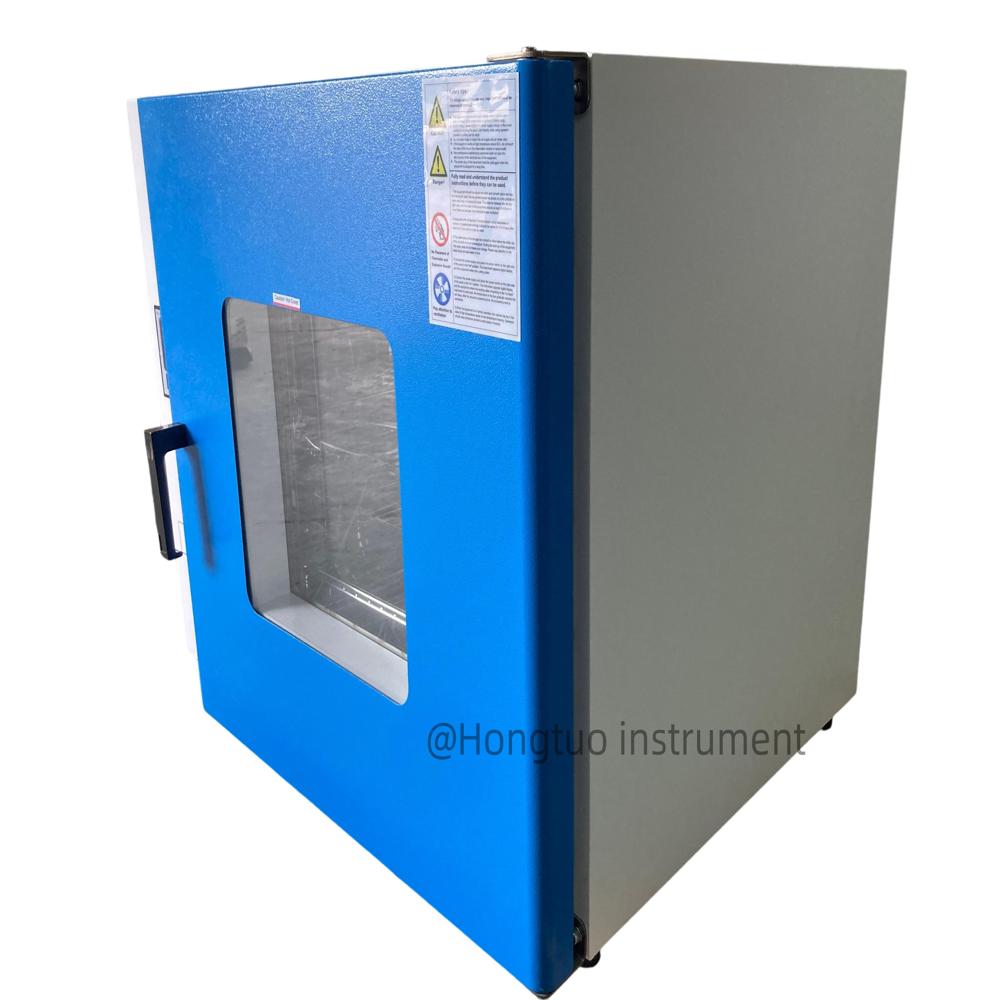

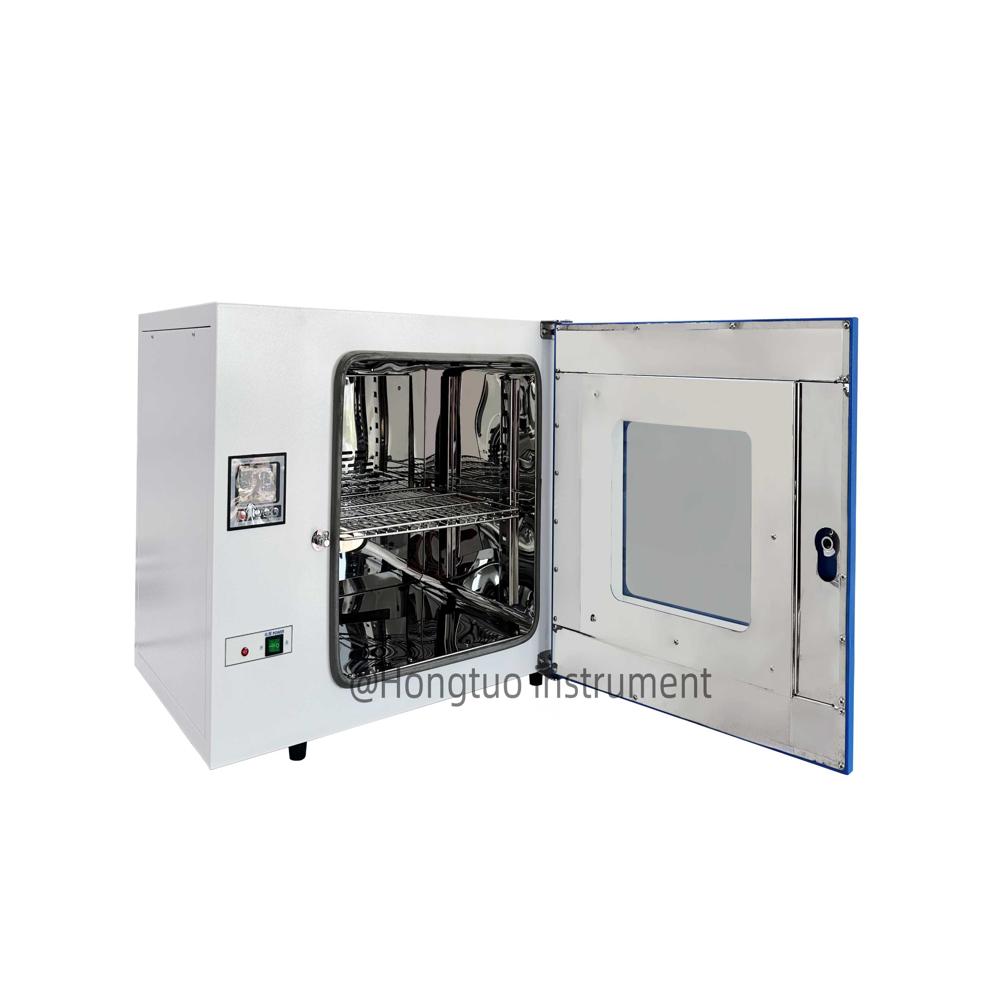

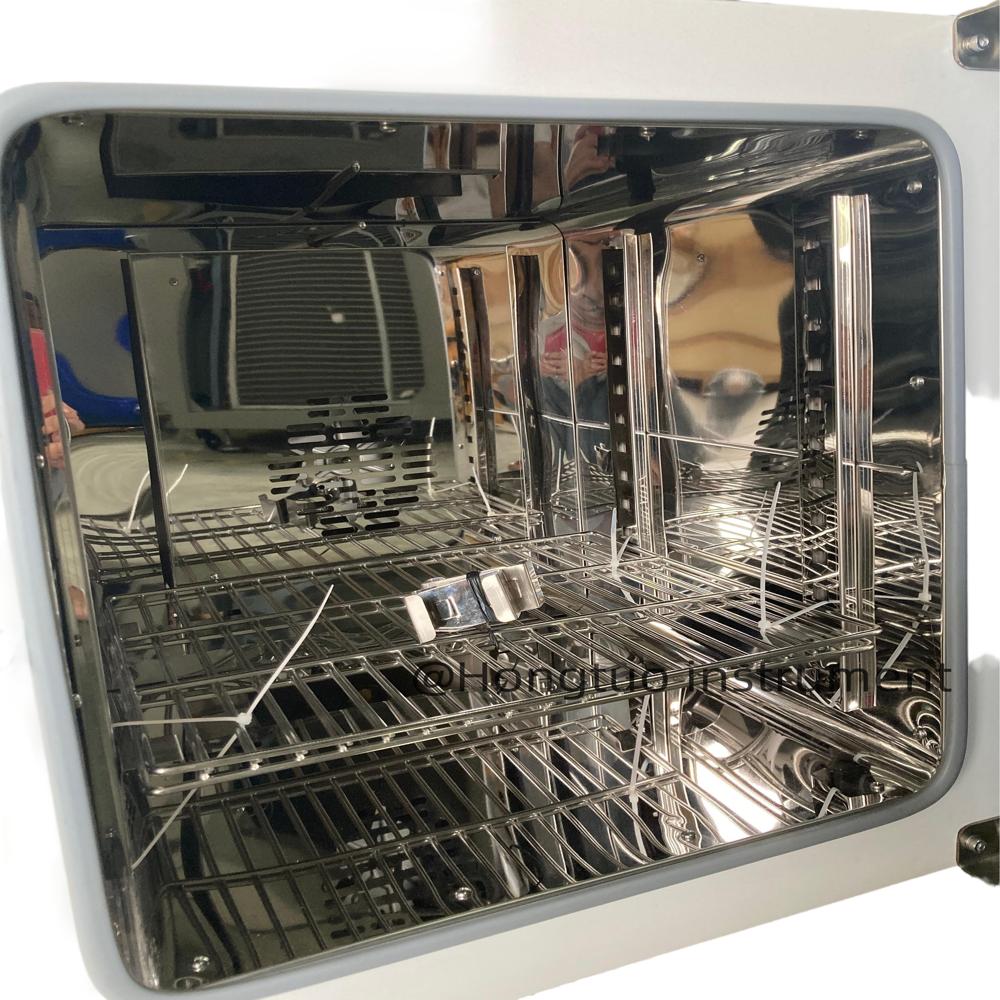

Desktop Constant Temperature Blast Drying Oven Series

Desktop Constant Temperature Blast Drying Oven Series

Name: Desktop Constant Temperature Blast Drying Oven Series
Brand: Guangdong Hongtuo Instrument Technology Co.,Ltd .
Price: 420.0 USD
Availability: InStock

420.0 USD ($)/Unit

Get a Price/Quote

Product Details:

Mounting Type Desktop
Number of Specimens Varies based on internal chamber size, typically 2-4 trays
Accuracy 1C
Resolution 0.1C
Operating Voltage 220V, 50Hz
Frequency 50 Hz
Max Height Typically 450-600mm, varies by model
Click to view more
Share Your Product:

Request To Call Back Send Inquiry

Desktop Constant Temperature Blast Drying Oven Series Price And Quantity

Minimum Order Quantity 1 Unit
Price 420.0 USD ($)/Unit

Desktop Constant Temperature Blast Drying Oven Series Product Specifications

Control Mode Microcomputer intelligent PID temperature controller
Max Height Typically 450-600mm, varies by model
Machine Weight Approximately 40-60 kg (varies by oven size/model)
Gas Pressure Atmospheric (no additional gas pressure required)
Accuracy 1C
Number of Specimens Varies based on internal chamber size, typically 2-4 trays
Mounting Type Desktop
Resolution 0.1C
Frequency 50 Hz
Operating Voltage 220V, 50Hz
Humidity Not applicable / Drying application only
Capacity 50L, 80L, 120L (varies by model)
Features Over-temperature protection, timer, forced air convection for uniform temperature
Interface Type No data output interface/standard control panel
Temperature Room temperature to 300C (adjustable)
Automation Grade Semi-automatic
Application Drying, baking, sterilizing, and heat treatment in laboratories and industry
Response Time Rapid, typically within 15 minutes to reach set temperature
Display Type Digital display (LED or LCD)
Equipment Type Desktop Constant Temperature Blast Drying Oven
Usage General laboratory, industrial, and research facility use
Specimen Size Depends on tray dimensions; usually up to 300mm x 300mm
Power Supply 220V, 50Hz

Timer Range 0-9999 minutes
Insulation High-density mineral wool
Shelf Position Adjustable shelves
External Material Powder-coated steel
Noise Level Low, below 60 dB
Heating Method Electric heating with forced air circulation
Safety Features Over-temperature alarm, automatic cut-off
Chamber Door Double-layer tempered glass observation window
Internal Material Stainless steel chamber

Product Description

Application:

This product is suitable for storage and transportation of electrical and electronic products, components, parts and their materials under high temperature and constant temperature environment, use time adaptability test and aging, as well as industrial and mining enterprises, hardware manufacturing and shipbuilding enterprises, for heating treatment of workpieces and general dehydration and drying.

Features:

1. The box body is made of high-quality cold-rolled steel plate, and the surface is electrostatically sprayed with powder. The coating is hard and firm, and has strong anti-rust ability.

2. The studio is made of high-quality stainless steel plate, with rounded corners, smooth, fluent, and easy to clean.

3. The box body and the studio are filled with ultra-fine glass wool insulation materials, which have good insulation function, effectively ensuring the stability and accuracy of the temperature in the box and the impact on the use environment.

4. The box is designed with a reasonable hot air circulation channel to make the temperature distribution in the box more uniform and the temperature rise faster; and it is equipped with an air outlet pipe to discharge the air in the box in small amounts. If the gas discharged from the box has odor or is toxic, the air outlet pipe can be conveniently connected to another pipeline to discharge the gas to a designated location.

5. The temperature control is manufactured using microcomputer intelligent digital technology, with industrial PID self-tuning and four-digit dual LED window

indication functions, high temperature control accuracy, strong anti-interference ability, and very convenient operation.

Technical Parameters:

Product name	Desktop Constant Temperature Blast Drying Oven
Product model	DHG-9023A
Power supply	220V 50HZ
Power consumption	750W
Temperature control range	9xx0 and 9xx3 Series RT +10250 / 9xx5A Series RT +10300
Temperature resolution	0.1/0.5
Working temperature	540
Inner chamber dimensionmm	300300270
Overall dimensionmm	625450500
VolumeL	35
Inner chamber material	Stainless steel
Shelf	2 pcs
Timer range	19999min

Precision and Uniformity in Every Batch

The oven's forced air convection system guarantees even temperature distribution, eliminating cold spots and ensuring optimal drying, baking, sterilizing, or heat treatment. The microcomputer intelligent PID controller provides accurate, stable control with a resolution of 0.1C and a rapid response time. Whether used in a laboratory, industrial, or research facility, users benefit from precise, repeatable results each time.

Enhanced Safety Features for Reliable Operation

Safety is paramount with features such as over-temperature alarms, automatic cut-off, and robust construction. The double-layer tempered glass window and stainless steel chamber add durability and protection, while over-temperature protection prevents overheating. The oven's low-noise operation and intuitive control panel make it suitable for a wide range of environments without disrupting workspaces.

Flexible and User-Friendly Design

Adjustable shelves and three available chamber capacities provide versatility for accommodating different sample sizes and quantities. The digital display, wide timer range, and easy-to-use standard control panel make operation straightforward, while the compact desktop mounting allows for convenient placement in any workspace. No additional gas or humidity control is needed, simplifying maintenance and usage.

FAQ's of Desktop Constant Temperature Blast Drying Oven Series:

Q: How does the forced air circulation in this drying oven benefit laboratory processes?

A: The forced air circulation ensures uniform temperature distribution throughout the stainless steel chamber, enabling even drying, baking, sterilizing, or heat treatment processes. This feature helps avoid hot or cold spots, thus maintaining consistent and reliable results for all specimens in every cycle.

Q: What safety features does the Desktop Constant Temperature Blast Drying Oven offer?

A: The oven includes over-temperature alarms and automatic electrical cut-off systems. These features protect both the equipment and samples by immediately addressing any unsafe temperature increases, making it safe for continuous use in laboratory and industrial settings.

Q: When should I use this oven, and for which applications is it best suited?

A: This drying oven is ideal for general laboratory, industrial, and research facility use, especially for processes such as drying, sterilizing, baking, and heat treatment. It is most effective when precise temperature control and uniform heating are required for sensitive or valuable materials.

Q: Where can the oven be placed for optimal operation?

A: Designed for desktop mounting, the oven's compact size allows it to be conveniently positioned on benchtops in laboratories, research facilities, or industrial sites. Ensure that placement allows adequate ventilation and easy access to the control panel and specimen chamber.

Q: What is the process for setting the temperature and timer on the oven?

A: The oven is equipped with a microcomputer intelligent PID temperature controller and a digital display panel. To operate, set the desired temperature (room temperature to 300C) and timer (0-9999 minutes) using the control buttons. The oven will quickly reach and maintain the set temperature, and the timer will automatically control the operation period.

Q: How many samples can I process in one cycle, and what is the typical specimen size?

A: Depending on the selected model (50L, 80L, or 120L), the oven can accommodate 2-4 trays per cycle. Each tray typically holds specimens up to 300mm x 300mm, but actual quantity may vary depending on specimen size and tray arrangement.

Q: What are the main benefits of this oven's construction and materials?

A: The stainless steel interior provides excellent durability and easy cleaning while the powder-coated steel exterior adds protection against corrosion. The high-density mineral wool insulation ensures energy efficiency and safe, cool-to-the-touch surfaces during operation. The double-layer tempered glass window allows safe observation without heat loss.

Tell us about your requirement

Price:

Quantity

Select Unit

50
100
200
250
500
1000+

Additional detail

Mobile number

Other Products in 'Environmental Testing Chamber' category

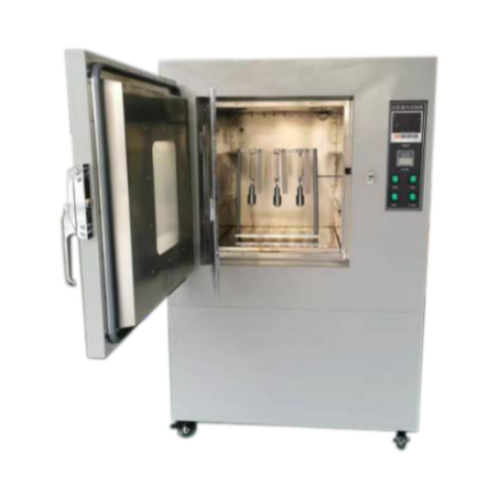

Natural Ventilation Aging Test Chamber for Material Testing Price : 3999.0 USD ($)/Set Minimum Order Quantity : 1 Power Supply : AC 220V 10%, 50Hz Control Mode : Programmable digital controller Machine Weight : Approx. 180 kg Frequency : 50 Hz Hardness : Cabinet: Mild steel, powder coated Features : Uniform heating, natural ventilation, programmable cycles Automation Grade : Automatic Usage : Material aging test, temperature durability test Max Height : 1100 mm Measuring Range : 0~999 hours Gas Pressure : Ambient Test Speed : Variable, adjustable Resolution : 0.1C Accuracy : 1C Number of Specimens : 4 to 6 samples Mounting Type : Floor standing, caster wheels Operating Voltage : 220 V Test Width : 400 mm Capacity : Single chamber Humidity : 40% ~ 70% RH (Adjustable) Port Size : Customizable Interface Type : RS232/USB optional Temperature : Ambient to 200C (Adjustable) Test Stroke : 200 mm Response Time : <10 seconds Test Range : Ambient to programmed values Application : Material aging, durability and thermal testing Display Type : Digital LCD display Equipment Type : Natural Ventilation Aging Test Chamber Specimen Size : Up to 300 mm length
