Ceramic Fiber Muffle Furnace for Laboratory Applications

Ceramic Fiber Muffle Furnace for Laboratory Applications

Name: Ceramic Fiber Muffle Furnace for Laboratory Applications
Brand: Guangdong Hongtuo Instrument Technology Co.,Ltd .
Price: 963.0 USD
Availability: InStock

963.0 USD ($)/Piece

Get a Price/Quote

Product Details:

Frequency 50/60 Hz
Temperature Room temperature to 1100C / 1200C / 1400C (model dependent)
Mounting Type Benchtop
Power Supply 220V~240V, 50/60Hz, Single Phase
Features High thermal efficiency, rapid heating, energy-saving ceramic fiber insulation
Specimen Size Various, depends on chamber size
Accuracy 1C
Click to view more
Share Your Product:

Request To Call Back Send Inquiry

Ceramic Fiber Muffle Furnace for Laboratory Applications Price And Quantity

Minimum Order Quantity 1 Piece
Price 963.0 USD ($)/Piece

Ceramic Fiber Muffle Furnace for Laboratory Applications Product Specifications

Features High thermal efficiency, rapid heating, energy-saving ceramic fiber insulation
Mounting Type Benchtop
Power Supply 220V~240V, 50/60Hz, Single Phase
Frequency 50/60 Hz
Temperature Room temperature to 1100C / 1200C / 1400C (model dependent)
Machine Weight Approx. 35-45 kg
Automation Grade Semi-Automatic
Operating Voltage 220V AC
Equipment Type Ceramic Fiber Muffle Furnace
Resolution 1C
Usage Laboratory Applications, Research and Development
Display Type Digital LED Display
Accuracy 1C
Application Laboratory Ashing, Material Testing, Heat Treatment, Ceramics and Glass Processing
Control Mode Digital PID Controller
Capacity 2 L / 4 L / 8 L (model dependent)
Specimen Size Various, depends on chamber size

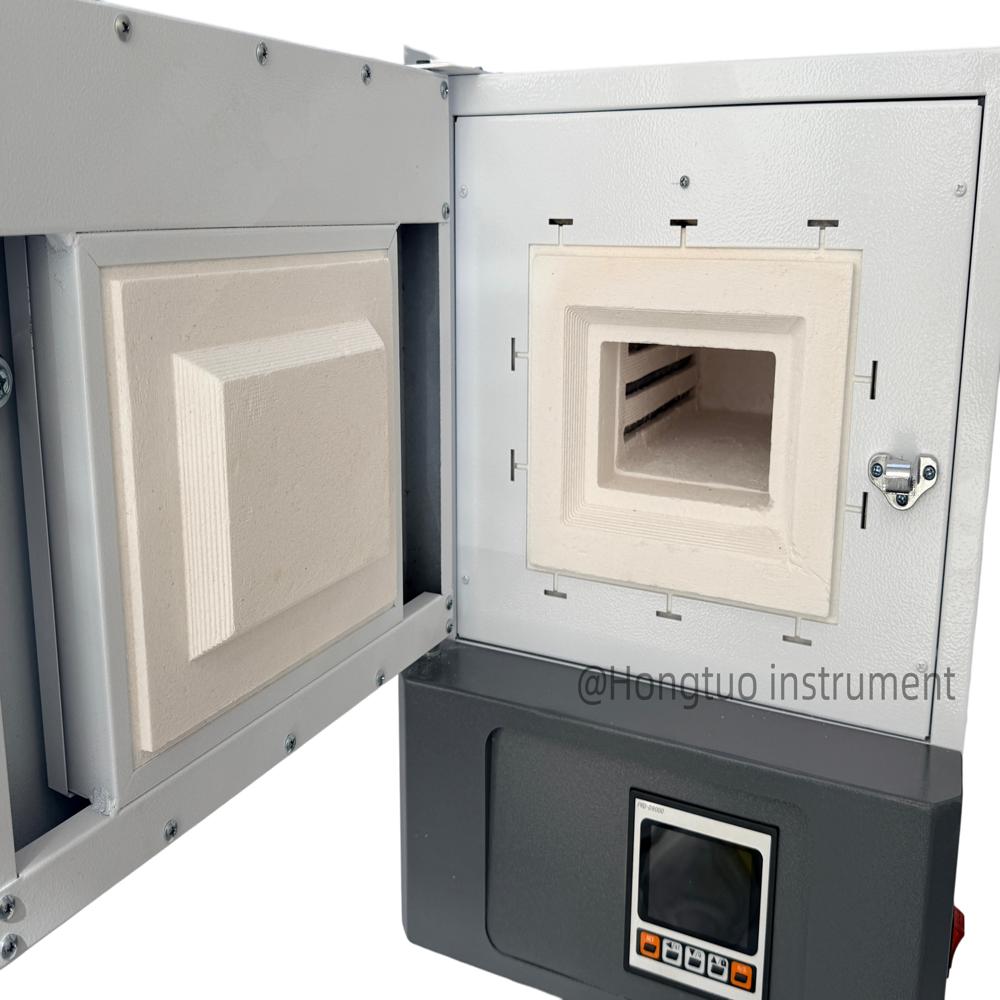

Door Type Front-opening, insulated door
Temperature Uniformity 5C across chamber
Chamber Material High-quality ceramic fiber insulation
Chamber Dimensions Approx. 200 mm x 120 mm x 80 mm (W x D x H) (varies per model)
Safety Feature Over-temperature protection, door safety interlock switch
Heating Element Kanthal wire/wound fiber element
Insulation Thickness 40 mm (approx.)
Color Powder-coated grey and blue
Controller Type Programmable/Timer setting available
Ambient Operating Temperature 5C to 40C
Maximum Heating Rate Up to 15C/min

Product Description

Applications Overview: The ceramic fiber muffle furnace is a high-temperature electric furnace primarily used for high-temperature experiments and material preparation. It can be used in industries such as power generation, coal mining, paper making, petrochemicals, pharmaceutical research, and education.

Features:

The heating element is a nickel-chromium wire, employing three-sided heating for excellent uniform temperature distribution within the cranial cavity.

The temperature sensing element is a type K thermocouple. It features rapid heating, significant energy savings, and high operating efficiency.

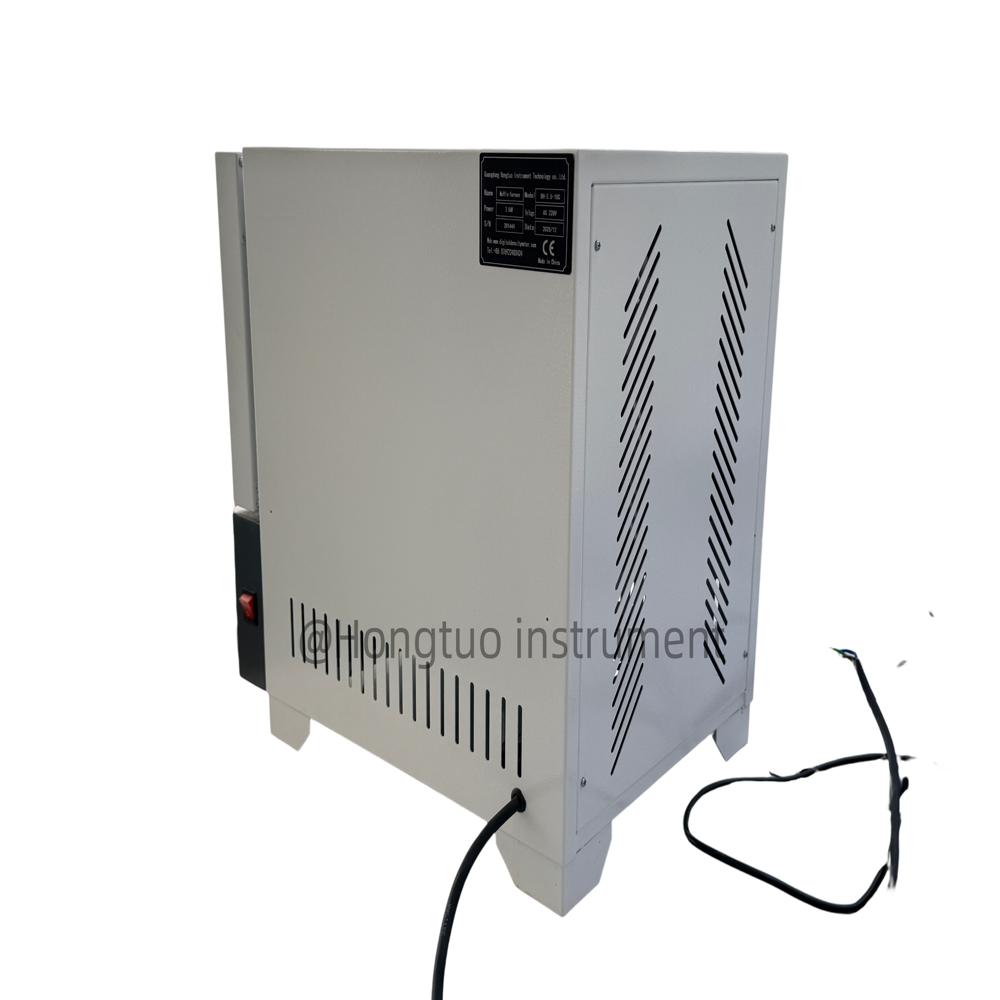

The outer casing is made of high-quality cold-rolled steel plate, treated with phosphate coating and then powder-coated at high temperature; the color is computer gray.

Ceramic fiberboard is used as the thermal insulation material, with a double-layer air insulation system, resulting in a low surface temperature of the casing.

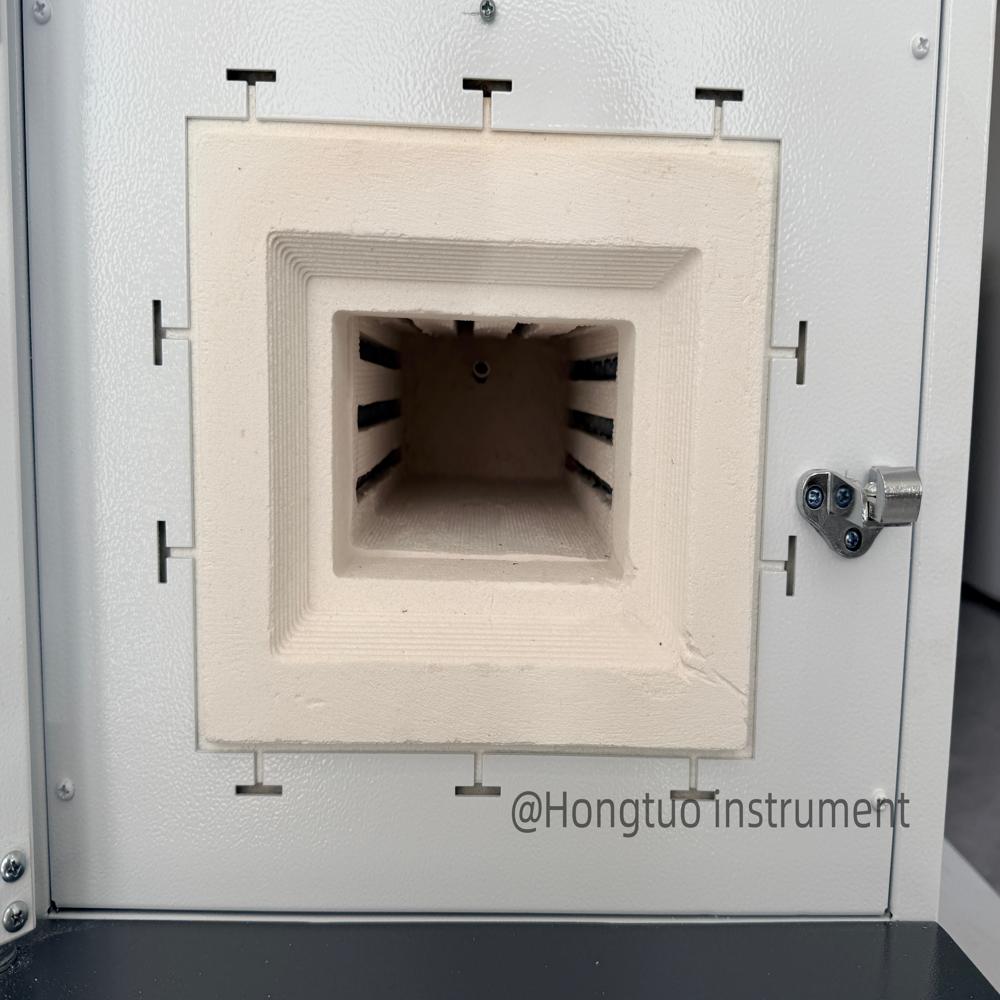

The corrosion-resistant, lightweight furnace lining is made of high-quality alumina polycrystalline fiber inorganic material formed by vacuum adsorption.

A 30-segment LCD programmable control instrument is used, featuring high brightness, a wide-viewing-window digital display, and clear, intuitive readings.

Microcomputer PID intelligent control solves problems such as temperature overshoot, resulting in excellent temperature control.

Full protection measures include: fault alarm, over-temperature alarm, and automatic shut-off of heating output.

Optional features include: touchscreen instrument, 485 interface, USB interface, RJ45 network port, air inlet, and smoke exhaust outlet.

Robust and Energy-Efficient Performance

The Ceramic Fiber Muffle Furnace boasts high thermal efficiency thanks to its advanced ceramic fiber insulation with a 40 mm thickness, enabling rapid heating while minimizing energy consumption. Its digital control and programmable timer allow for precise and customizable operation, making it a dependable choice for modern laboratory demands.

Precision and Safety at Every Step

This muffle furnace is equipped with a digital PID controller that provides temperature accuracy and control with a 1C resolution, maintaining consistency within the chamber. Operator safety is prioritized through over-temperature protection and a reliable door safety interlock, ensuring worry-free laboratory workflows.

Versatile Laboratory Applicability

Accommodating diverse specimen sizes and capacities (2 L, 4 L, 8 L), this furnace supports a wide range of laboratory processes, including ashing, ceramics processing, heat treatment, and material testing. Its front-opening, insulated door design facilitates easy loading and unloading, streamlining sample handling during routine or specialized tasks.

FAQ's of Ceramic Fiber Muffle Furnace for Laboratory Applications:

Q: How does the ceramic fiber insulation benefit laboratory operations in this muffle furnace?

A: The high-quality ceramic fiber insulation ensures rapid heating and excellent thermal retention, which translates to energy savings and minimizes heat loss. This allows for consistent temperature control, enhancing experimental accuracy and improving overall laboratory efficiency.

Q: What safety features are integrated into the furnace design?

A: The muffle furnace includes over-temperature protection, automatically shutting down heating when set limits are exceeded, and a door safety interlock switch that prevents operation if the door is not securely closed. These safeguards protect both samples and lab personnel during use.

Q: When should I use this muffle furnace for laboratory applications?

A: This furnace is ideal for tasks such as laboratory ashing, heat treatment, material testing, ceramics, and glass processing where precise and uniform high-temperature conditions are essential. It supports research, quality control, and routine analytical procedures.

Q: Where can this muffle furnace be installed in a laboratory setting?

A: Designed as a benchtop unit, the furnace can be conveniently installed on standard laboratory countertops. It requires a power supply of 220V~240V, 50/60Hz, and should be placed in well-ventilated areas within the recommended ambient operating temperature of 5C to 40C.

Q: What process control features does the digital PID controller offer?

A: The built-in digital PID controller provides programmable temperature settings and a timer function, ensuring precise control of heating profiles. Users can achieve the required temperature with 1C accuracy and conveniently monitor the status through the digital LED display.

Q: How does the uniformity and capacity of the chamber enhance laboratory results?

A: With temperature uniformity kept within 5C and chamber capacities ranging from 2 L to 8 L, the furnace provides consistent heating across all specimens, ensuring reproducible and reliable results for various sample sizes and types.

Q: What are the main benefits of using this ceramic fiber muffle furnace in research and testing?

A: Users benefit from high thermal efficiency, rapid heating rates, precise temperature control, and robust safety features. Its energy-saving construction and versatile design make it suitable for a wide range of laboratory applications, providing quality outcomes and cost-effective operation.
