Automatic Oxygen Index Tester for Flammability Testing DH-OI-01

Automatic Oxygen Index Tester for Flammability Testing DH-OI-01

Name: Automatic Oxygen Index Tester for Flammability Testing DH-OI-01
Brand: Guangdong Hongtuo Instrument Technology Co.,Ltd .
Price: 2357.00 INR
Availability: InStock

2357.00 INR/Unit

Get a Price/Quote

Product Details:

Resolution 0.1%
Specimen Size Length 70~150 mm, Width 6.5~10 mm, Thickness 4.5 mm Millimeter (mm)
Temperature Room Temperature (10C~35C) Celsius (oC)
Accuracy 0.2% (Oxygen Concentration) %
Automation Grade Fully Automatic
Display Type Touch Screen Display
Gas Pressure 0.2~0.3 MPa mpa
Click to view more
Share Your Product:

Request To Call Back Send Inquiry

Automatic Oxygen Index Tester for Flammability Testing DH-OI-01 Price And Quantity

Price 2357.00 INR/Unit
Minimum Order Quantity 1 Unit

Automatic Oxygen Index Tester for Flammability Testing DH-OI-01 Product Specifications

Application Flammability Testing of Plastics & Polymers
Frequency 50 Hz Hertz (HZ)
Number of Specimens 1 at a time
Control Mode Automatic (Touch Screen Control)
Machine Weight Approx. 25 kg Kilograms (kg)
Usage Lab Testing of Material Flammability
Measuring Range O2 Index 0~100% Kelvin (K)
Interface Type Touch Screen Interface
Test Speed Adjustable, 10~100 mm/min
Operating Voltage 220V Volt (V)
Power Supply AC 220V 10%, 50Hz
Features Automatic Gas Control, Digital Display, Pressure Regulators
Port Size 6 mm Gas Inlet
Mounting Type Bench-top
Equipment Type Automatic Oxygen Index Tester
Test Range Oxygen Index 0~100%
Max Height 400 mm (Combustion Cylinder)
Humidity 75% RH
Response Time 3 seconds Seconds
Display Type Touch Screen Display
Automation Grade Fully Automatic
Gas Pressure 0.2~0.3 MPa mpa
Accuracy 0.2% (Oxygen Concentration) %
Specimen Size Length 70~150 mm, Width 6.5~10 mm, Thickness 4.5 mm Millimeter (mm)
Temperature Room Temperature (10C~35C) Celsius (oC)
Resolution 0.1%

Ignition Method Electronic Ignition
Gas Type Nitrogen & Oxygen
Ambient Working Conditions Dust-Free, Ventilated Laboratory
Calibration Method Automatic/Manual
Alarm Function Low Pressure & Over-pressure Protection
Data Output USB/Printer optional
Combustion Cylinder Material Borosilicate Glass

Automatic Oxygen Index Tester for Flammability Testing DH-OI-01 Trade Information

Supply Ability 300 Unit Per Month
Delivery Time 3 Days

Product Description

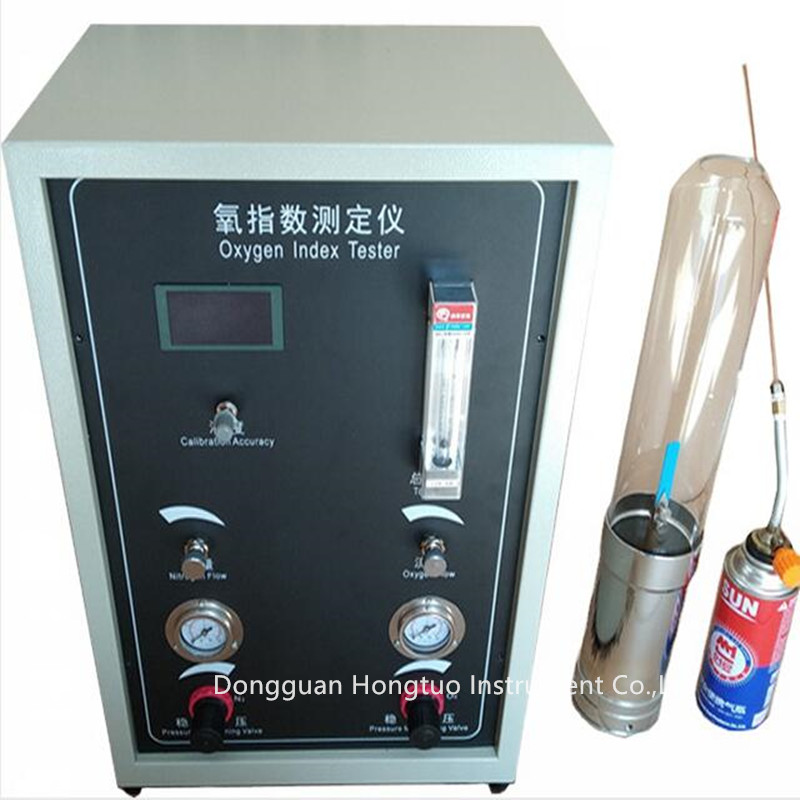

Automatic Oxygen Index Tester DH-OI-01

Advantage:

1. Full-color touch screen control, just set the oxygen concentration value on the touch screen,

the program will automatically adjust to the oxygen concentration balance and emit a beep sound prompt, eliminating the trouble of manually adjusting the oxygen concentration;

2. The stepped proportional valve is used to greatly improve the control accuracy of the flow

rate. The closed-loop control is adopted. The oxygen concentration drift program is automatically adjusted back to the target value during the test, avoiding the disadvantage that the traditional oxygen index meter cannot adjust the oxygen concentration during the test. Improve test accuracy.

Application:

It is suitable for the determination of the combustion properties of materials such as plastics,

rubber, fibers, foams, films and textiles, that is, the concentration percentage of the

lowest oxygen in which the polymer just maintains combustion.

Features:

The combustion tube is made of high temperature resistant high quality quartz glass tube (inner diameter 85mm, length 300mm)

Outlet diameter: 40mm

The mixer is filled with glass beads to mix oxygen and nitrogen evenly. (Bead 4.5mm filling height 95mm, label one bag)

Self-supporting sample holder, which can hold the sample vertically; (optional non-self-supporting type frame)

Adopting relay control system, all electronic originals adopt domestic leading brands, which can better guarantee the performance and reliability of the machine.

The equipment has the following safety protection devices: power supply overload, short circuit protection, and control loop overload protection.

Standards:

In line with GB/T 2406.2-2009, GB/T 2406.1-2008 standard

Applicable standards:

ASTM D 2863, ISO 4589-2, NES 714 GB/T 5454 GB/T 10707 GB/T 8924-2005 GB/T 16581-1996

NB/SH/T 0815-2010 TB/T 2919-1998 IEC 61144-1992 ISO 15705-2002 ISO 4589-2-1996

Main Technical Parameter:

1. Adopt imported oxygen sensor, oxygen concentration can be digital displayed without calculation.the accuracy is higher and more accurate, the range is 0-100%

2. Digital resolution: 0.1%

3. Measurement accuracy: 0.1 level

4. The touch screen setting program automatically adjusts the oxygen concentration

5. One-click calibration accuracy

6. One-click concentration ratio

7. Automatic alarm sound when the oxygen concentration is stable

8. With timing function

9. Can store experimental data

10. Can query historical data

11. Can clear historical data

12. Can choose whether to burn 50mm

13. Air source failure prompt

14. Oxygen sensor fault prompt

15. Prompt for wrong connection of oxygen and nitrogen

16. Oxygen sensor aging tips

17. Standard oxygen concentration input

18. The diameter of the combustion tube can be set (two common specifications are available)

19. Flow adjustment range: 0-20L/min (0-1200L/h)

20. Quartz glass tube: 75cm (can be customized according to user requirements)

21. Gas velocity in the combustion tube: 40mm2mm/s

22. Overall dimensions: 650mm400830mm (can be customized according to user requirements)

23. Pressure gauge accuracy level 2.5, resolution: 0.01MPa

24. Test environment: ambient temperature: room temperature 50 ;relative humidity: 70%;

25. Input pressure: 0.05-0.3MPa

26. Working pressure: nitrogen 0.15-0.20Mpa oxygen 0.15-0.20Mpa

27. The sample holder can be used for soft and hard plastics, various building materials, textiles, fire doors, etc.

28. Propane (butane) ignition system, the ignition nozzle is made of a metal tube, and the end has a nozzle with an inner diameter of 21mm, which can be bent freely. Can be inserted into the combustion tube to ignite the sample, flame length: 164mm, size 5mm-60mm can be adjusted freely,

29. Gas: Nitrogen and oxygen for industrial use, purity>99%; (user-provided/regular gas station industrial oxygen purity is generally between 99.2%-99.3%).

30. Power requirements: AC220 (+10%) V, 50HZ

31. Maximum power consumption: 150W

32. Self-supporting material sample clamp: can be fixed on the axis of the combustion cylinder and can clamp the sample vertically

33. Non-self-supporting material sample holder: can fix the two vertical sides of the sample to the frame at the same time (optional/applied to soft and non-self-supporting materials such as textiles)

Standard configuration:

1. Main unit (size: length * width * height 360mm * 250mm * 550mm) 1 set

2. Burning tube 1 set

3. Ignition 1 pcs

4. Power cord 1 pcs

5. Spare glass tube 1 pcs

6. Glass beads 1 bag (into the combustion column)

7. Nylon tube 4 1.2 m (connecting the combustion column to the main unit)

8. Sealing ring some

9. Pointed sample holder 1 set

10. Metal mesh (into the combustion column) 1 pcs

11. Plastic air outlet plate 1 pcs

12. Rubber hose 2 pcs

13. M101 inner joint screw 1pcs (within the combustion column)

14. M101 joint nut 1 piece (connected to the main unit)

15. Instructions 1 copy

16. Non-self-supporting sample holder 1 set (optional)

Tell us about your requirement

Price:

Quantity

Select Unit

50
100
200
250
500
1000+

Additional detail

Mobile number

Other Products in 'Plastic and Rubber Testing Equipment' category

Laboratory Flat Vulcanizing Machine for Rubber Sample Preparation Price : 4999.0 USD ($)/Unit Minimum Order Quantity : 1 Power Supply : AC 220V, 50/60Hz Usage : Rubber laboratory, R&D, Rubber manufacturing Automation Grade : Semiautomatic (Fullautomatic optional) Features : Automatic temperature control, Overload protection, Timer Machine Weight : Approx. 250 kg Measuring Range : Varies by installed force gauge and sensor Test Speed : Adjustable, typically 550 mm/min Operating Voltage : 220V/380V optional Application : Rubber Sample Preparation, Laboratory Curing of Rubber, Small Batch Vulcanization Testing Test Width : 200 mm Hardness : N/A Dependent on Mold Number of Specimens : 1~2 per cycle Control Mode : Digital Touch Panel & Manual Operation Response Time : 5 seconds (temperature and force feedback) Display Type : Digital LCD and LED Indicator Accuracy : 0.5C (temperature), 1% (force) Temperature : Room temperature to 300C Specimen Size : Customizable (commonly 150150 mm or 200200 mm) Resolution : 0.1C (temperature), 0.1 kN (force) Mounting Type : Floorstanding Equipment Type : Laboratory Flat Vulcanizing Machine Test Range : Varies by Mold Size, usually up to 150150 mm Max Height : 1000 mm (machine height) Test Stroke : Max 150 mm Humidity : 85% RH Interface Type : RS232/USB data output (optional) Port Size : Standard 1/4 (air inlet) Frequency : 50/60 Hz Capacity : 30 Ton (standard), options 10T/20T/30T/50T Gas Pressure : 0.5~0.8 MPa (Air)

Send Inquiry

Torque Testing Instrument Bottle Lid Torque Meter Price : 609.00 INR/Set Minimum Order Quantity : 1 Power Supply : AC 220V, 50Hz Usage : Laboratory, industrial quality control Automation Grade : Manual Features : High precision, easyoperation, robust construction Machine Weight : Approx. 6.5 kg Kilograms (kg) Measuring Range : 010 Nm Kelvin (K) Test Speed : Manual operation Operating Voltage : 220V Volt (V) Application : Measuring opening/closing torque of bottle caps Test Width : Suitable for standard bottle lids Millimeter (mm) Hardness : Aluminum alloy body Number of Specimens : 1 specimen at a time Control Mode : Digital Control Response Time : Instantaneous Seconds Display Type : Digital LCD Accuracy : 1% F.S. % Temperature : 10 C ~ 40 C Celsius (oC) Specimen Size : Diameter 10~120 mm Millimeter (mm) Resolution : 0.01 Nm Mounting Type : Benchtop Equipment Type : Torque Testing Instrument Test Range : 010 Nm Max Height : 180 mm Test Stroke : 0~150 mm (Adjustable) Humidity : 85% RH Interface Type : RS232/USB Port Size : Standard 3/8 fitting Frequency : 50Hz Hertz (HZ) Capacity : 10 Nm Kg

Send Inquiry

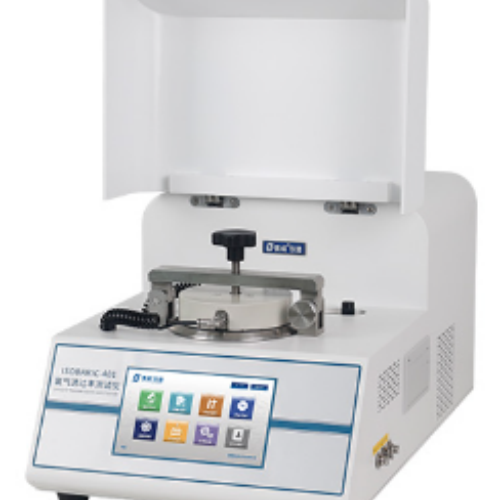

Oxygen Transmission Rate Tester for Packaging Film Testing Price : 16969.0 USD ($)/Piece Minimum Order Quantity : 1 Power Supply : AC 220V, 50Hz Usage : Laboratory analyzer Automation Grade : Automatic Features : Userfriendly interface, automatic data saving, multiparameter reporting Machine Weight : Approx. 50 kg Measuring Range : 0.01~1000 cc/m2day Test Speed : Adjustable, up to 5 tests per hour Operating Voltage : 220 V Application : Oxygen permeability testing in packaging films Test Width : Up to 100 mm (film sample width) Number of Specimens : 1 (single test cell) Control Mode : Touch screen PLC control Response Time : Within 30 seconds Display Type : 7inch color LCD touch screen Accuracy : 1% of reading Temperature : 15~55C (0.1C) Specimen Size : 97 mm diameter Resolution : 0.01 cc/m2day Mounting Type : Tabletop Equipment Type : Oxygen Transmission Rate Tester Test Range : 0.01~1000 cc/m2day Max Height : 320 mm Test Stroke : 025 mm adjustable Humidity : 0~85% RH (controlled) Interface Type : USB, Ethernet Port Size : 6 mm gas inlet/outlet Frequency : 50 Hz Capacity : Maximum 1000 cc/m2day Gas Pressure : 0.4 0.6 MPa
