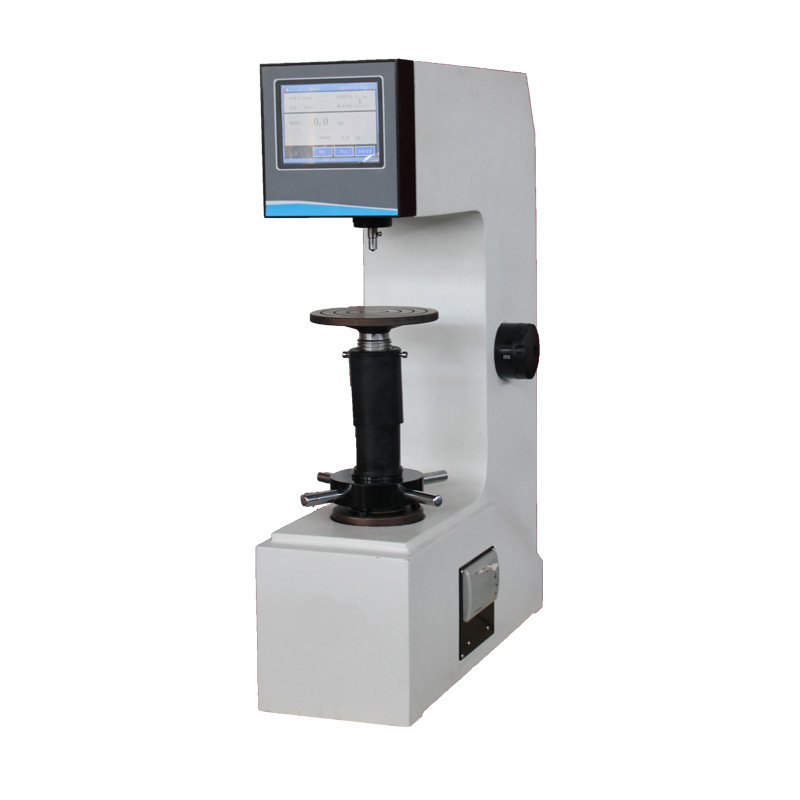

900LV2 Multifunctional Rockwell Hardness Tester

3968.00 USD ($)/Piece

Get a Price/Quote

Product Details:

Temperature 10C to 35C Celsius (oC)
Hardness Rockwell, Superficial Rockwell, Brinell scales
Port Size Standard Sample Port
Automation Grade Automatic
Measuring Range Rockwell, Superficial Rockwell and Brinell hardness scales Kelvin (K)
Number of Specimens Single Specimen/Operation
Interface Type RS232/USB data output
Click to view more
Share Your Product:

Request To Call Back Send Inquiry

900LV2 Multifunctional Rockwell Hardness Tester Price And Quantity

Minimum Order Quantity 1 Piece
Price 3968.00 USD ($)/Piece

900LV2 Multifunctional Rockwell Hardness Tester Product Specifications

Equipment Type Multifunctional Rockwell Hardness Tester
Features Automatic loading/unloading, digital display, data storage, multi-hardness scale selection
Frequency 50/60 Hz Hertz (HZ)
Mounting Type Bench/Standalone
Accuracy Meets ISO 6508-2, ASTM E18, GB/T230.2 standards %
Max Height 220 mm (specimen)
Control Mode Touch Screen/Automatic
Resolution 0.1 HR
Test Range 20-95 HRA, 10-100 HRB, 20-70 HRC, 400-650 HB
Response Time Instantaneous measurement on completion of indentation Seconds
Specimen Size Max 220 mm height, 170 mm depth Millimeter (mm)
Application Rockwell, Superficial Rockwell, Brinell hardness testing for steel, non-ferrous metals, hard alloys etc.
Humidity 85% RH
Hardness Rockwell, Superficial Rockwell, Brinell scales
Test Speed Continuous/Automatic (varies with operation)
Machine Weight ~120 kg Kilograms (kg)
Temperature 10C to 35C Celsius (oC)
Test Stroke Max 220 mm
Number of Specimens Single Specimen/Operation
Measuring Range Rockwell, Superficial Rockwell and Brinell hardness scales Kelvin (K)
Port Size Standard Sample Port
Automation Grade Automatic
Usage Metallurgical labs, industrial production, quality inspection
Display Type Digital LCD Touch Screen
Power Supply AC 220V 5%, 50/60 Hz
Test Width 170 mm (Throat Depth) Millimeter (mm)
Operating Voltage 220V AC 5% Volt (V)
Interface Type RS232/USB data output

Connectivity USB, RS232, Printer interface
Dimensions 520220700 mm approx.
Illumination Built-in LED working light
Test Load Steps 10, 15, 30, 45, 60, 100, 150 kgf (Rockwell); 3, 15, 45 kgf (Superficial Rockwell)
Data Storage Up to 500 test results
Indenter Types Diamond cone and hard alloy ball (1/16", 1/8", 1/4" as standard and optional)
Software Functions Statistical analysis, hardness conversion, curve printing
Hardness Conversion Supports conversion between Rockwell, Brinell, Vickers and others
Compliance ASTM E18, ISO 6508, GB/T230
Test Method Auto force application, holding, and release
Noise Level <60 dB in operation
Body Material Cast iron, powder coated finish

Product Description

Main Feature:

1. This machine adopts a fully closed-loop sensor control system with high precision, high repeatability and stability;

2. Maximum test force is 250kgf;

3. The overall steel plate is welded, the structure is firm, and the rigidity is good;

4. Comply with ASTM DIN, ISO, JIS international standards, and China national standard GB;

5. LCD liquid crystal display or computer screen display, direct digital display of measurement results, and conversion of relevant hardness values;

6. The operation can be switched between Chinese and English;

Parameter:

1.Minimum detection resolution: 0.2um

2.Objective lens magnification: 70X, 140X

3.Test force time: 1-99 seconds

4.Loading and unloading method: automatic closed-loop sensor control

5.Test process: automatic

6.Display: LCD menu display, current scale, hardness value, statistical data, 7.average value, standard deviation

8.Test height: within 250mm

9.Test depth: within 130mm

10.The minimum diameter of cylindrical parts is 3mm

11.Working power supply :220V/50Hz

Advanced Multi-Scale Hardness Testing

The 900LV2 enables seamless testing across Rockwell, Superficial Rockwell, and Brinell scales for a wide range of materials. Its versatile indenter system accommodates both diamond cone and hard alloy ball options, supporting precise evaluations of steel, alloys, and non-ferrous metals. The tester automatically applies, holds, and releases test loads, ensuring consistent accuracy every time.

Comprehensive Data Management and Analysis

Equipped with a digital LCD touch screen, this tester can store up to 500 test results and features advanced software for statistical analysis and hardness conversion. Data transfer is simplified with USB and RS232 outputs, while built-in curve printing and reports assist with thorough documentation. The storage and connectivity options support efficient workflows in high-demand environments.

Rugged Construction and User-Friendly Design

Fabricated from cast iron with a powder-coated finish, the 900LV2 is built for longevity in industrial settings. Its intuitive touch screen, integrated LED lighting, and quiet operation (<60 dB) foster ease of use and safety. The unit's bench-mounted, standalone configuration supports testing specimens up to 220 mm high and 170 mm deep, offering flexibility for various applications.

FAQ's of 900LV2 Multifunctional Rockwell Hardness Tester:

Q: How does the 900LV2 Multifunctional Rockwell Hardness Tester operate?

A: The 900LV2 uses automatic force application, holding, and release to perform hardness testing according to selected Rockwell, Superficial Rockwell, or Brinell methods. Users set the parameters via the digital LCD touch screen, place the specimen, and let the machine perform an instantaneous measurement after indentation.

Q: What types of indenters are compatible with the 900LV2 Tester?

A: This tester supports diamond cone and hard alloy ball indenters (with 1/16", 1/8", and 1/4" ball sizes available as standard and optional choices), allowing it to accommodate a wide range of testing requirements and material types.

Q: Where can the 900LV2 Hardness Tester be used effectively?

A: It is ideally suited for metallurgical laboratories, industrial production environments, and quality inspection facilities, where precise, repeatable hardness measurements are crucial for ensuring material standards and consistency.

Q: What data management features does the tester provide?

A: The device can store up to 500 individual test results, supports statistical analysis, enables hardness scale conversion (Rockwell, Brinell, Vickers, and others), and allows data export via USB, RS232, and printer interfaces, all geared toward streamlining quality control processes.

Q: What is the process for changing between hardness scales or tests?

A: Users can quickly select the required test method and hardness scale through the touch screen interface. The tester's design makes changing indenters and setting appropriate loads straightforward, enabling smooth transitions between different testing standards.

Q: What are the benefits of using the 900LV2 for hardness testing?

A: The 900LV2 offers high measurement accuracy, versatile testing options, substantial data storage, and automatic operation. Its compliance with ASTM E18, ISO 6508, and GB/T230 standards ensures reliable results, making it a trusted tool for demanding quality assurance workflows.
