Galvanized Coating Thickness Gauge Cheap Coating Thickness Gauge Price

Galvanized Coating Thickness Gauge Cheap Coating Thickness Gauge Price

199.00 - 599.00 USD ($)

Get a Price/Quote

Product Details:

Display Type LCD digital display
Resolution 0.1m (<100m), 1m (100m)
Automation Grade Manual
Operating Voltage 3V (2 x 1.5V AAA batteries)
Interface Type None/Stand-alone
Humidity 20%~90% RH
Specimen Size Minimum curvature radius: convex 1.5mm, concave 25mm
Click to view more
Share Your Product:

Request To Call Back Send Inquiry

Galvanized Coating Thickness Gauge Cheap Coating Thickness Gauge Price Price And Quantity

Minimum Order Quantity 1 Set
Price Range 199.00 - 599.00 USD ($)

Galvanized Coating Thickness Gauge Cheap Coating Thickness Gauge Price Product Specifications

Display Type LCD digital display
Machine Weight 5 Kilograms (kg)
Resolution 0.1m (<100m), 1m (100m)
Test Speed 1 reading/sec
Automation Grade Manual
Capacity Coating Thickness Tester Kilogram(Kg)
Usage Paint, plating, and galvanized coating thickness measurement
Operating Voltage 3V (2 x 1.5V AAA batteries)
Test Stroke Test probe stroke: up to 2mm
Interface Type None/Stand-alone
Port Size Probe diameter: 12mm
Specimen Size Minimum curvature radius: convex 1.5mm, concave 25mm
Humidity 20%~90% RH
Application Measuring thickness of non-magnetic coatings (zinc, paint, enamel, etc.) on steel and insulating coatings on non-ferrous metals
Equipment Type Digital coating thickness gauge
Response Time 1s
Measuring Range 0~1500m (0~59.0 mil)
Number of Specimens Single point or continuous multiple specimens
Test Width Standard single-point
Control Mode Manual measurement
Features Low battery indicator, auto power-off, compact and portable, easy calibration
Mounting Type Handheld
Power Supply 2 x 1.5V AAA batteries
Temperature 0C~40C (operating)
Accuracy (2%+1m)
Test Range 0~1500m

Alarm Function Audible and visual high/low alarms
Backlight Yes
Battery Life Over 50 hours continuous operation
Calibration Method Zero-point and foil calibration
Storage Capacity Stores up to 100 measurements
Housing Material ABS plastic
Probe Type Integrated magnetic/eddy current probe
Included Accessories Calibration foils, zero plate, carrying case, user manual

Galvanized Coating Thickness Gauge Cheap Coating Thickness Gauge Price Trade Information

FOB Port shenzhen
Supply Ability 300 Set Per Month
Delivery Time 7 Days
Packaging Details standard exporting package
Main Domestic Market All India

Product Description

Galvanized Coating Thickness Gauge Cheap Coating Thickness Gauge Price

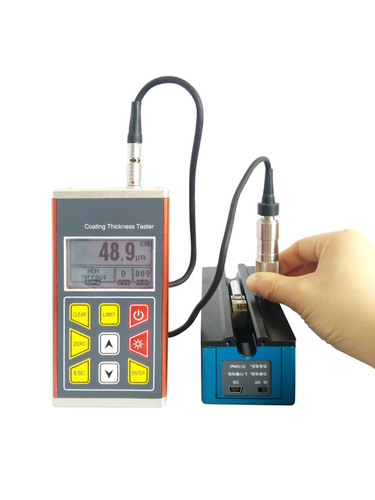

KCT300 is capable to measure thickness of non-magnetic coating layers covered on magnetic substrate. Such as: non-magnetic (aluminum, chrome, copper, enamel, paint) covered on magnetic substrate (steel, alloy and magnetic stainless steel), also can measure thickness of non-conductive coatings layers covered on conductive substrate. Such as: (enamel, rubber, paint, plastic) covered on conductive substrate (aluminum, brass, zinc and nonmagnetic stainless steel);

Features:

Various probes optional, probe auto matching;
Durable ruby probe, more wear and precise;
Full metal shell design, sturdy, portable, high reliability;
Alarm function when overrun the settable limiting range;
Five statistics values [MEAN, MAX, MIN, NO., S.DEV] higher measurement accuracy;
Large storage, easy to delete single or multiple saved values;
PC software optional, convenient the data transmission, analysis, printing etc.

Specification:

Measuring Range: Standard 0-1250um (MAX 10000um with probe F10)
Working Principle: Magnetic & Eddy
Substrate: FE / NFe base, depends on probes
Display: 128*64 LCD with backlight
Memory: 5 files x 99 values
Working Temperature: Operation Temp. :-10-50 degree Storage Temp.:-30-70 degree
Power: AA battery 2pcs (Non-aviation transport)
Size: 125*67*31mm
Weight: 340g

Reliable and Accurate Coating Measurements

Designed to deliver consistent and precise results, this digital coating thickness gauge utilizes both magnetic and eddy current probes. Its accuracy (2%+1m) ensures reliable measurements of non-magnetic and insulating coatings. The device's integrated calibration features make it suitable for demanding inspection tasks, providing confident assessment of coating quality and uniformity.

Effortless Operation with Enhanced Usability

With manual operation, a responsive LCD digital display, and intuitive alarm functions, this gauge streamlines the measurement process. Its ergonomic design and backlight make it practical for use in dimly-lit or busy industrial settings. The auto power-off and low battery indicator help maximize battery performance, contributing to over 50 hours of continuous work.

Versatile and Portable for Multiple Applications

This unit is engineered for versatility, measuring a wide range of coatings including paint, plating, and galvanization on various metals. Its compact build and included carrying case ensure easy portability, whether you're conducting quality checks on-site or in the factory. The storage for 100 readings allows for effective data management and review while on the go.

FAQ's of Galvanized Coating Thickness Gauge Cheap Coating Thickness Gauge Price:

Q: How do I calibrate the Galvanized Coating Thickness Gauge?

A: Calibration can be performed using the zero-point and included foil calibration method. Place the probe on the supplied zero plate, follow the on-screen instructions, then use the provided calibration foils for accurate setup as indicated in the user manual.

Q: What types of coatings can this gauge measure?

A: The gauge is designed to measure non-magnetic coatings-such as zinc, paint, and enamel-on steel, as well as insulating coatings on non-ferrous metals. It supports industrial uses like paint, plating, and galvanization thickness checks.

Q: When is it ideal to use the alarm function during measurements?

A: The built-in audible and visual high/low alarms are useful when you need to be alerted immediately if a coating thickness falls outside of set thresholds, helping maintain quality control during inspection processes.

Q: Where can I use this coating thickness tester?

A: This device is well-suited for use in industrial environments, factories, or field settings. Its compact and robust build, along with a carrying case, makes it easy to transport and operate wherever coating measurement is needed.

Q: What is the process for storing and reviewing multiple measurements?

A: The gauge can store up to 100 measurement readings internally. After taking each reading, the result is automatically saved; you can review stored data later as detailed in the user manual, making tracking and record management straightforward.

Q: How does the backlight feature benefit the user?

A: The backlight ensures that the LCD display remains easily readable in low-light or challenging environments, improving usability during inspections in dimly lit or complex industrial settings.

Q: What are the advantages of using a digital coating thickness gauge like this one?

A: The main benefits include high accuracy, easy calibration, fast response time (1s), portability, extended battery life, and convenience in handling multiple specimen measurements-empowering users with reliable data for quality assurance.
